Brand: Kingston | Category: Enterprise SSDs
SKU: SFYR2S/1T0 | Part #: SFYR2S/1T0 | MPN: SFYR2S/1T0
Contact for Pricing — Request a Quote

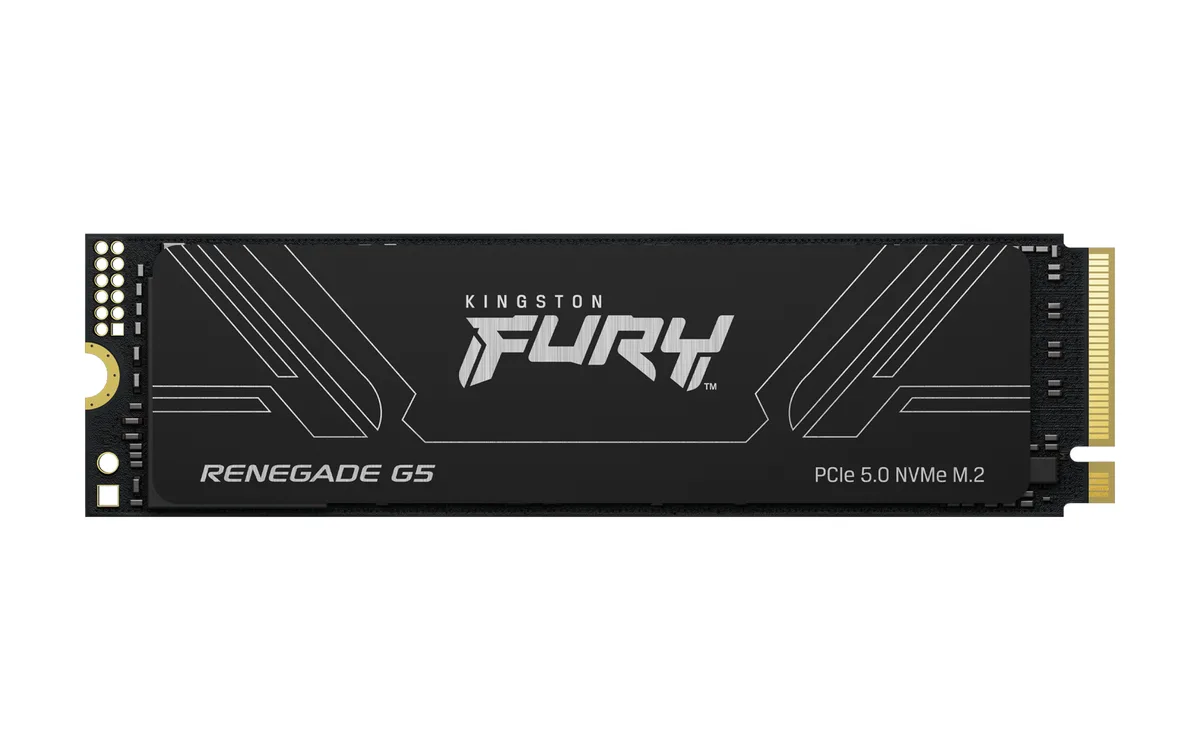

The Kingston FURY Renegade 1TB (part number SFYR2S/1T0) is an M.2 2280 NVMe SSD that uses a PCI Express 5.0 x4 interface. It is built on an SMI SM2508 controller with 3D TLC memory and an external DDR cache, and it provides 1 TB of storage capacity.
Rated sequential speeds reach 14,200 MB/s read and 11,000 MB/s write. Random 4KB performance is rated at 2,200,000 IOPS read and 2,150,000 IOPS write. Average power consumption is 0.27 W, with a maximum of 6.6 W. The drive carries a 2,000,000-hour MTBF rating. It is specified for 2.17 G operating vibration, 20 G non-operating vibration and a storage temperature range of -40 to 85 °C.
The drive is designed as a component for PCs and laptops that have a PCIe 5.0 M.2 slot. It suits workstations and desktop systems that need fast local NVMe storage.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | Kingston |
| Category | Enterprise SSDs |
| SKU | SFYR2S/1T0 |
| Part Number | SFYR2S/1T0 |
| Condition | New |
| Capacity | 1 TB |
| Interface | PCIe 5.0 x4 NVMe |
| Mean time between failures (MTBF) | 2000000 h |
| External DDR cache | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | SMI SM2508 |
| Random write (4KB) | 2150000 IOPS |
| Random read (4KB) | 2200000 IOPS |
| Write speed | 11000 MB/s |
| Read speed | 14200 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Component for | PC/Laptop |
| Memory type | 3D TLC |
| NVMe | Yes |
| Interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| SSD capacity | 1 TB |
| Power consumption (average) | 0.27 W |
| Power consumption (max) | 6.6 W |
| Non-operating vibration | 20 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight | 7.3 g |
| Height | 2.3 mm |
| Depth | 80 mm |
| Width | 22 mm |
At 1 TB, the Kingston FURY Renegade 1TB PCIe 5.0 NVMe M.2 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The PCIe 5.0 x4 NVMe interface is supported by major server platforms.
Key specifications for the Kingston FURY Renegade 1TB PCIe 5.0 NVMe M.2 SSD: capacity 1 TB; interface PCIe 5.0 x4 NVMe; new condition; mean time between failures (mtbf) 2000000 h; external ddr cache Yes; pci express interface data lanes x4; controller type SMI SM2508; random write (4kb) 2150000 IOPS; random read (4kb) 2200000 IOPS. Manufacturer part number SFYR2S/1T0. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The Kingston FURY Renegade 1TB PCIe 5.0 NVMe M.2 SSD uses a PCIe 5.0 x4 NVMe interface. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
