Brand: Kingston | Category: Enterprise SSDs
SKU: SFYR2S/2T0 | Part #: SFYR2S/2T0 | MPN: SFYR2S/2T0
Contact for Pricing — Request a Quote

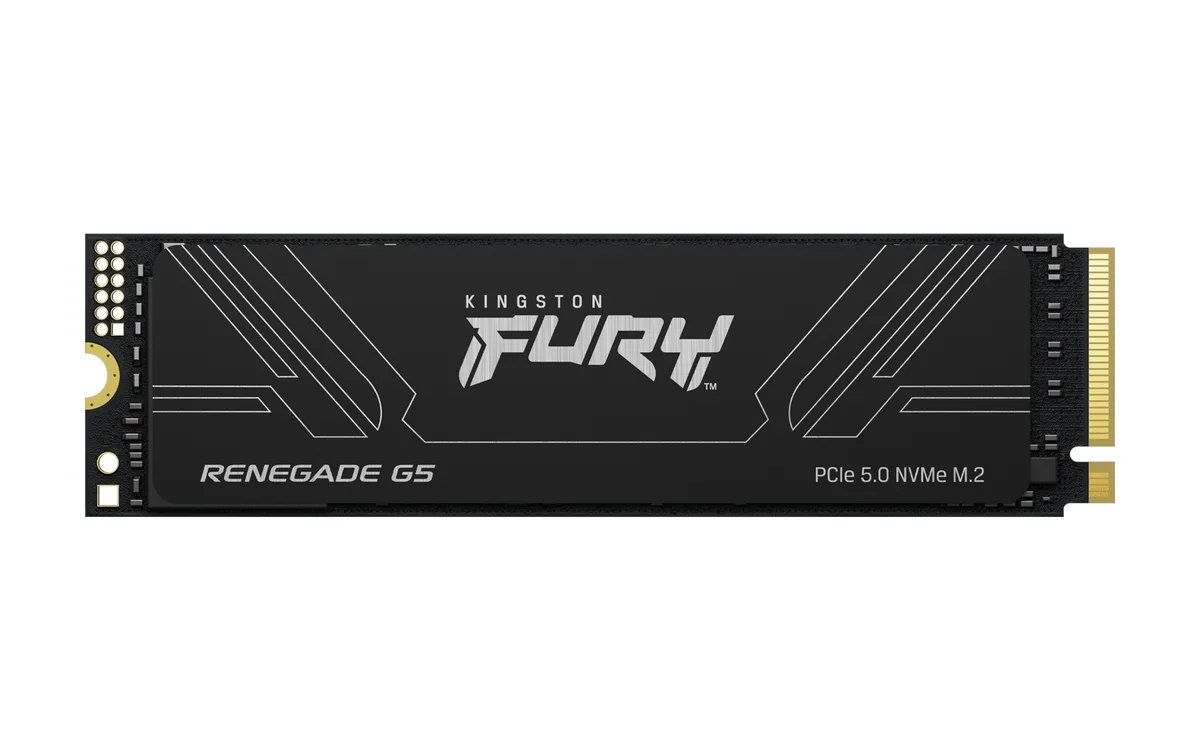

The Kingston FURY Renegade 2TB PCIe 5.0 NVMe M.2 SSD (part number SFYR2S/2T0) is a 2 TB solid-state drive in the M.2 2280 (22 x 80 mm) form factor. It uses a PCI Express 5.0 x4 interface with NVMe, an SMI SM2508 controller, 3D TLC memory and an external DDR cache.
Rated performance reaches sequential read speeds of 14,700 MB/s and write speeds of 14,000 MB/s, with random 4KB read and write of up to 2,200,000 IOPS each. Average power consumption is 0.27 W, with a maximum of 7 W. The drive carries an MTBF rating of 2,000,000 hours, is rated for 2.17 G operating and 20 G non-operating vibration, and has a storage temperature range of -40 to 85 °C.
Designed as a component for PCs and laptops, this SSD suits systems with an M.2 PCIe 5.0 slot where fast storage for the operating system, applications and data is required.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | Kingston |
| Category | Enterprise SSDs |
| SKU | SFYR2S/2T0 |
| Part Number | SFYR2S/2T0 |
| Condition | New |
| Capacity | 2 TB |
| Interface | PCIe 5.0 x4 NVMe |
| Mean time between failures (MTBF) | 2000000 h |
| External DDR cache | Yes |
| PCI Express interface data lanes | x4 |
| Controller type | SMI SM2508 |
| Random write (4KB) | 2200000 IOPS |
| Random read (4KB) | 2200000 IOPS |
| Write speed | 14000 MB/s |
| Read speed | 14700 MB/s |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Component for | PC/Laptop |
| Memory type | 3D TLC |
| NVMe | Yes |
| Interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| SSD capacity | 2 TB |
| Power consumption (average) | 0.27 W |
| Power consumption (max) | 7 W |
| Non-operating vibration | 20 G |
| Operating vibration | 2.17 G |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | 0 - 70 °C |
| Weight | 7.7 g |
| Height | 2.3 mm |
| Depth | 80 mm |
| Width | 22 mm |
At 2 TB, the Kingston FURY Renegade 2TB PCIe 5.0 NVMe M.2 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The PCIe 5.0 x4 NVMe interface is supported by major server platforms.
Key specifications for the Kingston FURY Renegade 2TB PCIe 5.0 NVMe M.2 SSD: capacity 2 TB; interface PCIe 5.0 x4 NVMe; new condition; mean time between failures (mtbf) 2000000 h; external ddr cache Yes; pci express interface data lanes x4; controller type SMI SM2508; random write (4kb) 2200000 IOPS; random read (4kb) 2200000 IOPS. Manufacturer part number SFYR2S/2T0. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The Kingston FURY Renegade 2TB PCIe 5.0 NVMe M.2 SSD uses a PCIe 5.0 x4 NVMe interface. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
