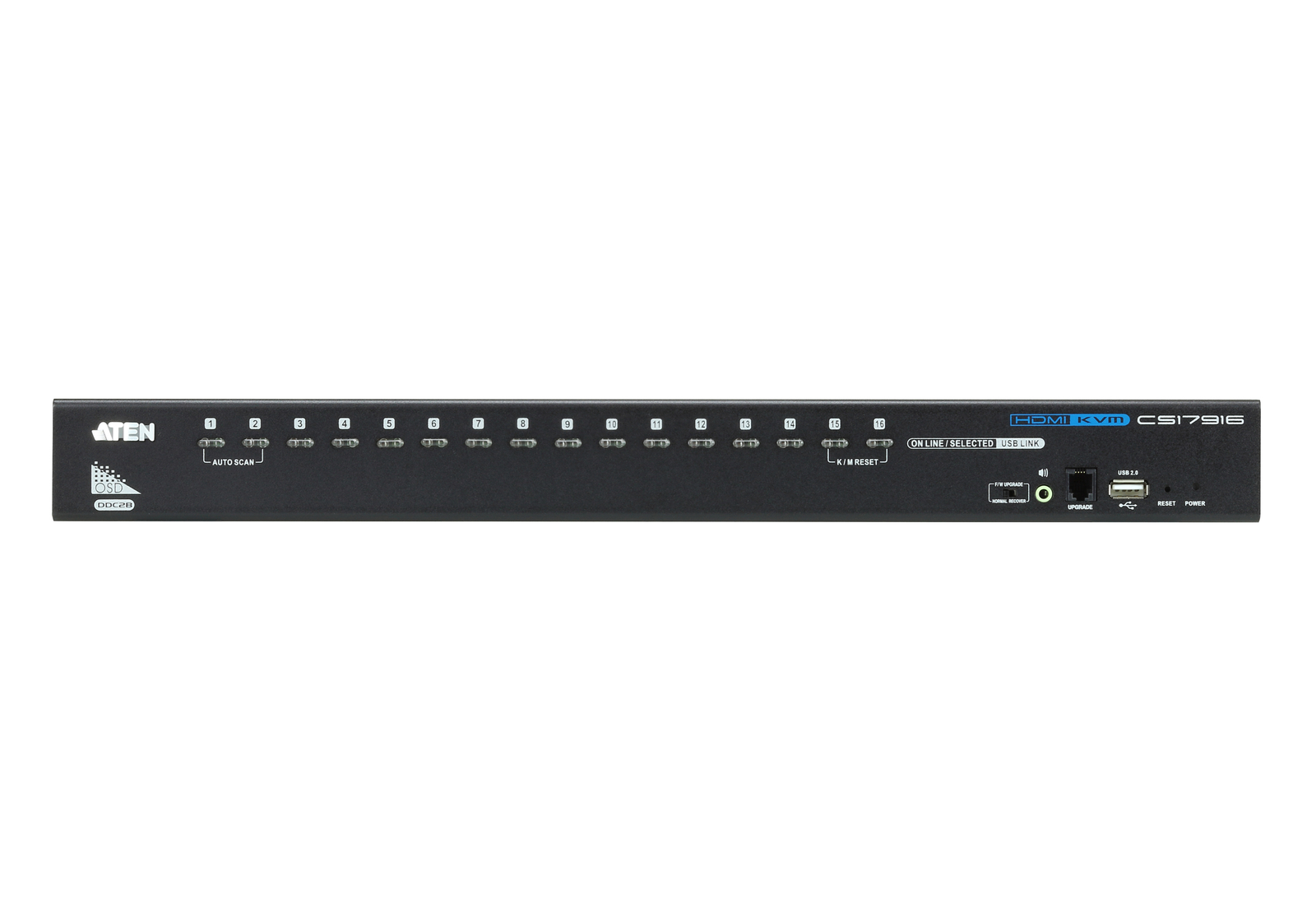

Aten CS17916 16-Port USB HDMI/Audio KVM Switch
Brand: Aten | Category: KVM & Console
SKU: CS17916 | Part #: CS17916 | MPN: CS17916
Contact for Pricing — Request a Quote
About the Aten CS17916 16-Port USB HDMI/Audio KVM Switch
The Aten CS17916 is a 16-port USB HDMI KVM switch engineered for centralized control of multiple servers, workstations, and displays across enterprise data centers and hybrid IT environments. This Aten platform consolidates keyboard, mouse, audio, and video signals from 16 discrete computer systems through a single console interface, eliminating cable clutter and reducing operator desk real estate.
Built for IT operations and infrastructure teams, the CS17916 delivers 1920×1200 HDMI video resolution with stereo audio switching—supporting both microphone and speaker per port. Four intuitive port selection methods (front-panel buttons, on-screen display menu, hotkeys, and auto-scan) accelerate system switching during troubleshooting and maintenance. DDC2B emulation ensures reliable monitor detection, while the compact 1U rack-mount form factor integrates seamlessly into 19-inch standard racks. Operating across 0–50°C and supported by USB connectivity for both console and computer interfaces, this Aten switch suits demanding 24/7 enterprise environments. Network engineers and IT procurement specialists standardize on the CS17916 to streamline multi-system administration without sacrificing performance or uptime.
Typical Enterprise Deployment Scenarios
- Server room and data center management—controlling 16 physical or virtualized hosts from a single workstation
- Development and testing labs—rapid switching between build systems, test rigs, and validation platforms
- Network operations centers—consolidated monitoring and configuration of network appliances and security devices
- Broadcast and media production facilities—synchronized control of encoding servers, playout systems, and monitoring displays
- Failover and disaster recovery—quick manual intervention across redundant infrastructure without rewiring
For pricing, availability, and technical configuration support tailored to your infrastructure, request an RFQ through Omnixon Global.
Technical Specifications
| Brand | Aten |
| Category | KVM & Console |
| SKU | CS17916 |
| Part Number | CS17916 |
| Condition | New |
| Form Factor | 1U Rack-Mount |
| Interface | USB |
| Manufacturer Part Number | CS17916 |
| KVM Ports | 16 |
| Video Interface | HDMI |
| Maximum Video Resolution | 1920×1200 |
| Audio Support | Stereo audio switching (microphone and speaker per port) |
| Keyboard/Mouse Interface (Console) | USB |
| Keyboard/Mouse Interface (Computer) | USB |
| Port Selection Methods | Front-panel push-buttons, OSD, hotkeys, auto-scan |
| On-Screen Display (OSD) | Yes — port naming, navigation, and management |
| Auto-Scan | Yes — configurable scan intervals |
| DDC Emulation | DDC2B |
| Form Factor | 1U rack-mount |
| Rack Compatibility | 19-inch standard rack |
| Power Input | DC power via included adapter |
| Operating Temperature | 0–50°C |
| Storage Temperature | -20–60°C |
| Humidity (Operating) | 0–80% RH, non-condensing |
Frequently Asked Questions about Aten CS17916 16-Port USB HDMI/Audio KVM Switch
What does the Aten CS17916 16-Port USB HDMI KVM Switch do?
The Aten CS17916 16-Port USB HDMI KVM Switch is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
What are the headline specs of the Aten CS17916 16-Port USB HDMI KVM Switch?
Key specifications for the Aten CS17916 16-Port USB HDMI KVM Switch: new condition; brand Aten; series CS17916; model CS17916; ports 16; interface USB; video HDMI 4K@30Hz. Manufacturer part number CS17916. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
