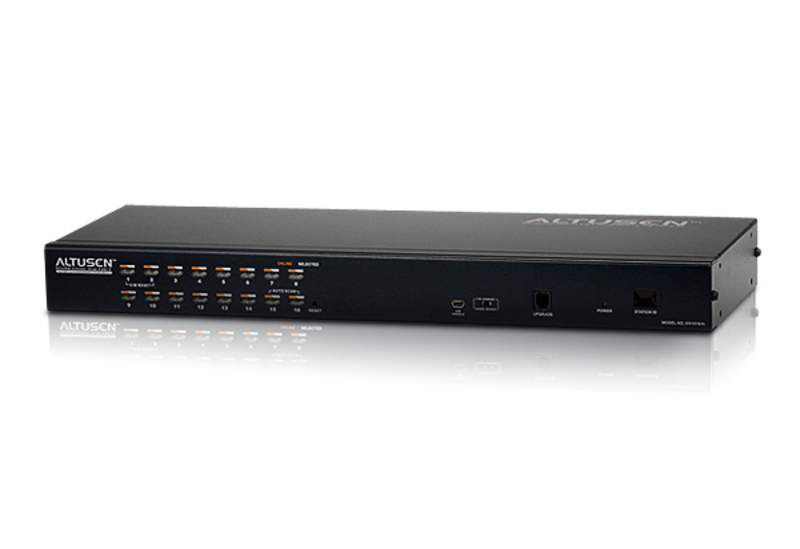

Aten KH1516Ai 16-Port Multi-Interface Cat 5 KVM over IP Switch
Brand: Aten | Category: KVM & Console
SKU: KH1516AI | Part #: KH1516AI | MPN: KH1516AI
Contact for Pricing — Request a Quote
About the Aten KH1516Ai 16-Port Multi-Interface Cat 5 KVM over IP Switch
This 1U rack-mount form factor integrates seamlessly into standard server cabinet deployments, delivering enterprise-grade KVM over IP control without requiring additional floor space or infrastructure modification. The Aten KH1516Ai 16-Port Multi-Interface Cat 5 KVM over IP Switch (part number KH1516AI) is engineered for organizations that demand secure, centralized management of geographically dispersed or co-located servers across hybrid IT environments.
Built for network engineers and IT infrastructure teams responsible for multi-server environments, this Aten solution combines local console access with remote session capability, eliminating the need for physical proximity during maintenance, troubleshooting, or deployment tasks. The switch supports up to 32 concurrent remote sessions over a 10/100 Mbps Ethernet connection, while maintaining AES 256-bit encryption and multi-factor authentication through LDAP, LDAPS, Active Directory, RADIUS, and TACACS+. Virtual media support enables ISO image and physical drive redirection to target servers, streamlining OS deployment and firmware updates. The daisy-chain expansion capability—supporting up to 31 additional units for a maximum of 512 ports in tiered topology—scales with your infrastructure growth without architectural redesign.
Key Specifications
- KVM Ports: 16
- Port Interface: RJ-45 (Cat 5e/6 via KVM Adapter Cables, KA7xxx series)
- Maximum Video Resolution (Local and Remote): 1920 × 1200
- Remote Access Interface: 10/100 Mbps Ethernet with web browser and Windows client application support
- User Accounts and Privilege Levels: Up to 64 user accounts with 4 privilege levels (Super Administrator, Administrator, User, View Only)
- Security: AES 256-bit encryption; LDAP, LDAPS, Active Directory, RADIUS, TACACS+ authentication
- Operating Conditions: 0–50 °C; 0–80% RH non-condensing; AC 100–240 V, 50/60 Hz
Contact Omnixon Global to request a quotation for the KH1516AI and discuss deployment specifications tailored to your infrastructure.
Technical Specifications
| Brand | Aten |
| Category | KVM & Console |
| SKU | KH1516AI |
| Part Number | KH1516AI |
| Condition | New |
| Form Factor | 1U Rack-Mount |
| Manufacturer Part Number | KH1516AI |
| KVM Ports | 16 |
| Port Interface | RJ-45 (Cat 5e/6 via KVM Adapter Cables) |
| Supported Adapter Cables | KA7xxx series (PS/2, USB, Sun, Serial interfaces supported depending on adapter) |
| Local Console Ports | 1 × keyboard (USB/PS/2), 1 × VGA, 1 × mouse (USB/PS/2) |
| Remote Access Interface | 10/100 Mbps Ethernet (RJ-45); web browser and Windows client application |
| Maximum Video Resolution (Local) | 1920 × 1200 |
| Maximum Video Resolution (Remote) | 1920 × 1200 |
| Encryption | AES 256-bit |
| Authentication | LDAP, LDAPS, Active Directory, RADIUS, TACACS+ |
| User Accounts | Up to 64 user accounts |
| User Privilege Levels | 4 (Super Administrator, Administrator, User, View Only) |
| Concurrent Remote Sessions | Up to 32 |
| Daisy-Chain Expansion | Up to 31 additional units (max 512 ports in tiered topology) |
| Virtual Media | Supported (ISO image and physical drive redirection to target servers) |
| Form Factor | 1U rack-mount |
| Power | AC 100–240 V, 50/60 Hz |
| Operating Temperature | 0–50 °C |
| Humidity | 0–80% RH, non-condensing |
| Dimensions (W × D × H) | 432 × 162 × 44 mm (approx.) |
| Certifications | CE, FCC, RoHS |
Frequently Asked Questions about Aten KH1516Ai 16-Port Multi-Interface Cat 5 KVM over IP Switch
What does the Aten KH1516AI 16-Port Cat5 KVM over IP Switch do?
The Aten KH1516AI 16-Port Cat5 KVM over IP Switch is enterprise IT hardware deployed in production data centers, server rooms, and edge sites across the GCC and EMEA region.
What are the headline specs of the Aten KH1516AI 16-Port Cat5 KVM over IP Switch?
Key specifications for the Aten KH1516AI 16-Port Cat5 KVM over IP Switch: new condition; brand Aten; series KH1516AI; model KH1516AI; ports 16; type Cat5 KVM over IP; cable Cat5e (up to 50m). Manufacturer part number KH1516AI. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
