Brand: APC | Category: Server Racks & Enclosures
SKU: AR3003 | Part #: AR3003 | MPN: AR3003
Contact for Pricing — Request a Quote

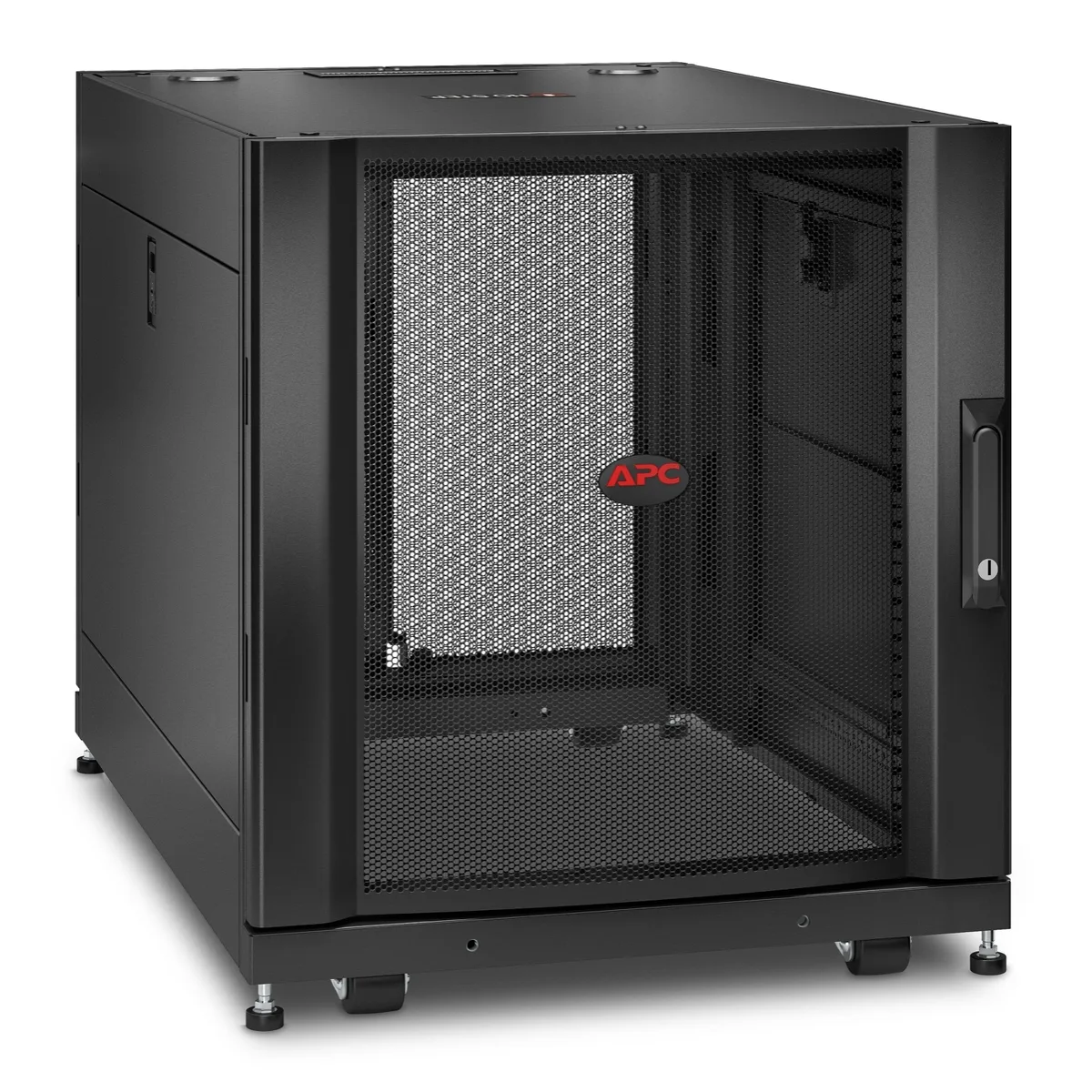

The APC NetShelter SX AR3003 is a 12U freestanding rack enclosure in black, measuring 600 mm wide, 900 mm deep and 658 mm high. It is supplied with side panels and has a lockable front door, providing controlled physical access to installed equipment. The enclosure carries a maximum weight capacity of 272 kg and weighs 54 kg itself.
Equipment mounting depth is adjustable from 19.1 cm to 75.6 cm. The enclosure is rated IP20 and holds UL 2416 and UL 60950-1 certification, with RoHS, REACH and WEEE compliance.
With its compact 12U height, this enclosure suits smaller server, network and storage installations, such as branch offices, communications rooms and edge deployments where rack-mounted IT equipment needs to be housed securely in a limited footprint.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | AR3003 |
| Part Number | AR3003 |
| Condition | New |
| Certification | UL 2416, UL 60950-1, REACH |
| International Protection (IP) code | IP20 |
| Front door key lock | Yes |
| Key lock | Yes |
| Side panels included | Yes |
| Product colour | Black |
| Maximum weight capacity | 272 kg |
| Type | Freestanding rack |
| Rack capacity | 12U |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Mounting depth (max) | 75.6 cm |
| Mounting depth (min) | 19.1 cm |
| Weight | 54 kg |
| Height | 658 mm |
| Depth | 900 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
The Netshelter SX 12U 600MM Wide X 900MM Deep Enclosure W Sides Black (AR3003) delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the Netshelter SX 12U 600MM Wide X 900MM Deep Enclosure W Sides Black (AR3003): new condition; certification UL 2416, UL 60950-1, REACH; international protection (ip) code IP20; front door key lock Yes; key lock Yes; side panels included Yes; product colour Black. Manufacturer part number AR3003. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
