Brand: APC | Category: Server Racks & Enclosures
SKU: AR3006 | Part #: AR3006 | MPN: AR3006
Contact for Pricing — Request a Quote

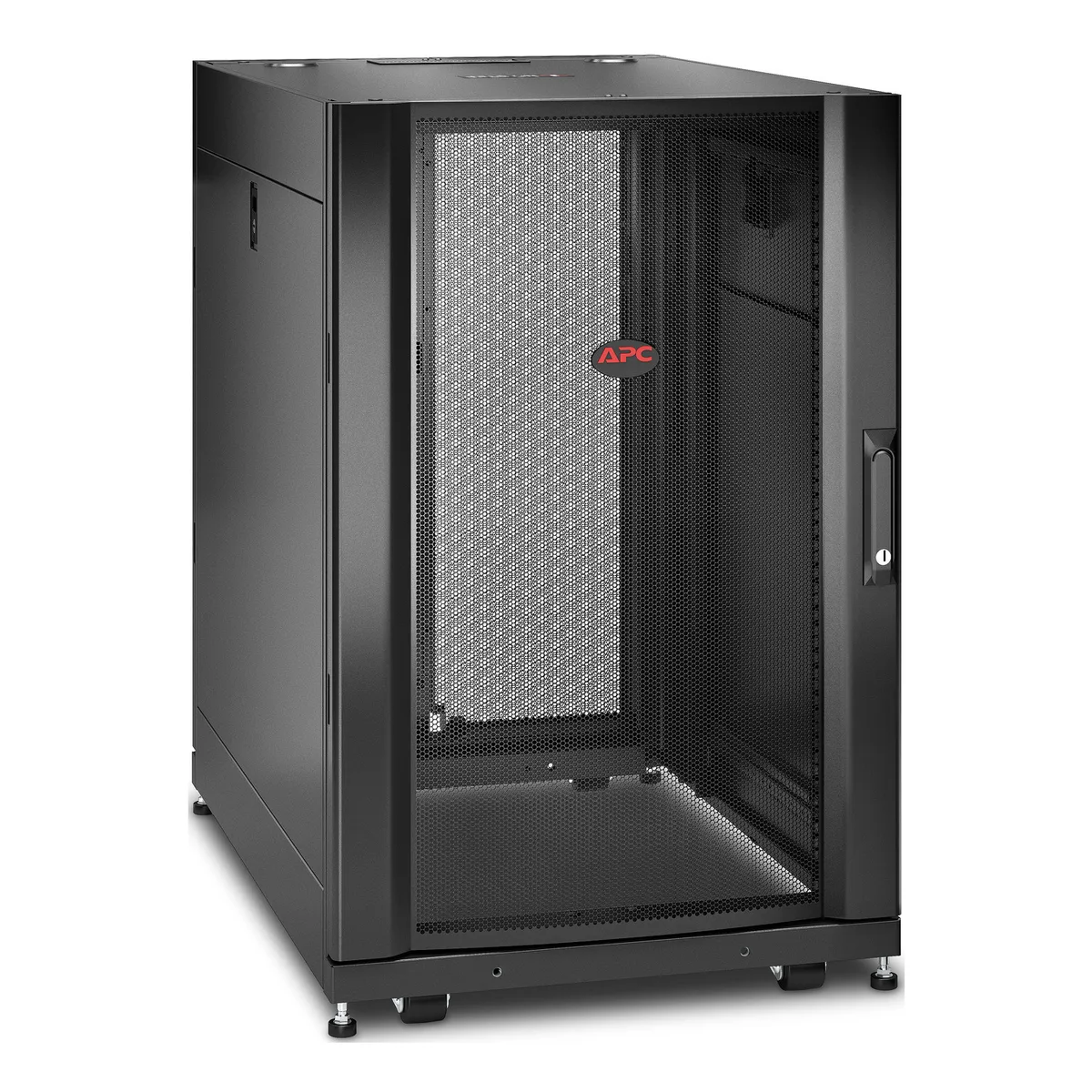

The APC NetShelter SX AR3006 is an 18U freestanding rack enclosure in black, measuring 600 mm wide, 900 mm deep and 925 mm high. It is supplied with side panels and has a lockable front door. The enclosure supports a maximum weight capacity of 409 kg and weighs 67.1 kg.
Equipment mounting depth is adjustable from 19.1 cm to 75.6 cm, so the rack can hold devices of different depths. The enclosure carries an IP20 protection rating and is certified to UL 2416 and UL 60950-1. It complies with RoHS, REACH and WEEE requirements.
With its compact 18U height, the AR3006 is suited to housing rack-mounted servers, network switches and related IT equipment in server rooms, branch offices and other smaller installations where lockable, enclosed storage is needed.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | AR3006 |
| Part Number | AR3006 |
| Condition | New |
| Certification | UL 2416, UL 60950-1, REACH |
| International Protection (IP) code | IP20 |
| Front door key lock | Yes |
| Key lock | Yes |
| Side panels included | Yes |
| Product colour | Black |
| Maximum weight capacity | 409 kg |
| Type | Freestanding rack |
| Rack capacity | 18U |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Mounting depth (max) | 75.6 cm |
| Mounting depth (min) | 19.1 cm |
| Weight | 67.1 kg |
| Height | 925 mm |
| Depth | 900 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
The APC NetShelter SX 18U 600mm Wide x 900mm Deep Enclosure with Sides Black AR3006 delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the APC NetShelter SX 18U 600mm Wide x 900mm Deep Enclosure with Sides Black AR3006: new condition; certification UL 2416, UL 60950-1, REACH; international protection (ip) code IP20; front door key lock Yes; key lock Yes; side panels included Yes; product colour Black. Manufacturer part number AR3006. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
