Brand: APC | Category: Server Racks & Enclosures
SKU: AR3103SP | Part #: AR3103SP | MPN: AR3103SP
Contact for Pricing — Request a Quote

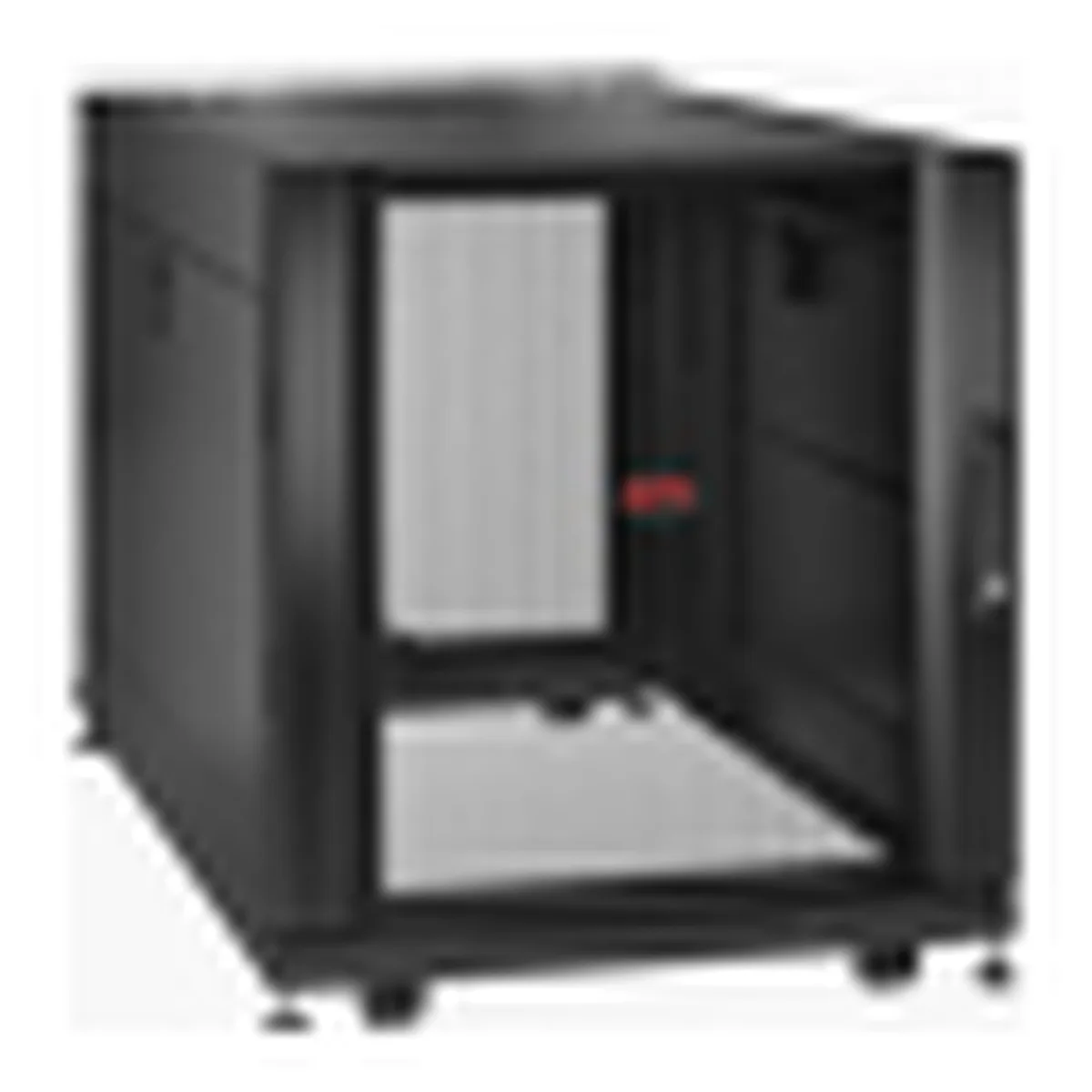

The APC NetShelter SX 12U enclosure (part number AR3103SP) is a black, freestanding rack with a closed frame, measuring 600 mm wide by 1070 mm deep. It ships in shock packaging and includes side panels. The rack offers 12U of mounting capacity and supports a maximum weight of 272 kg.
The enclosure has removable front and back doors, with a perforated back door. The side panels are removable and lockable, and the doors have a key lock. Adjustable mounting rails, built-in cable management, castor wheels and adjustable feet help with installation and positioning. The enclosure is rated IP20. It carries UL 2416 and UL 60950-1 certification and complies with RoHS, REACH and WEEE.
This compact enclosure suits server rooms, network closets and smaller IT deployments that need to house rack-mounted servers, networking and power equipment in a lockable cabinet.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | AR3103SP |
| Part Number | AR3103SP |
| Condition | New |
| Certification | REACH UL 2416, UL 60950-1 |
| International Protection (IP) code | IP20 |
| Castor wheels | Yes |
| Cable management | Yes |
| Adjustable feet | Yes |
| Adjustable mounting rails | Yes |
| Side panel key lock | Yes |
| Key lock | Yes |
| Side panels included | Yes |
| Removable side panels | Yes |
| Removable front door | Yes |
| Removable back door | Yes |
| Back door construction | Perforated |
| Frame type | Closed |
| Product colour | Black |
| Maximum weight capacity | 272 kg |
| Type | Freestanding rack |
| Rack capacity | 12U |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Mounting depth (max) | 92.1 cm |
| Mounting depth (min) | 19.1 cm |
| Weight | 59 kg |
| Height | 658 mm |
| Depth | 1070 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
The NETSHELTER SX 12U 600MM X 1070MM ENCLOSURE with SIDES BLK - Shock Packaging (AR3103SP) delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the NETSHELTER SX 12U 600MM X 1070MM ENCLOSURE with SIDES BLK - Shock Packaging (AR3103SP): new condition; certification REACH UL 2416, UL 60950-1; international protection (ip) code IP20; castor wheels Yes; cable management Yes; adjustable feet Yes; adjustable mounting rails Yes. Manufacturer part number AR3103SP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
