Brand: APC | Category: Server Racks & Enclosures
SKU: AR3106 | Part #: AR3106 | MPN: AR3106
Contact for Pricing — Request a Quote

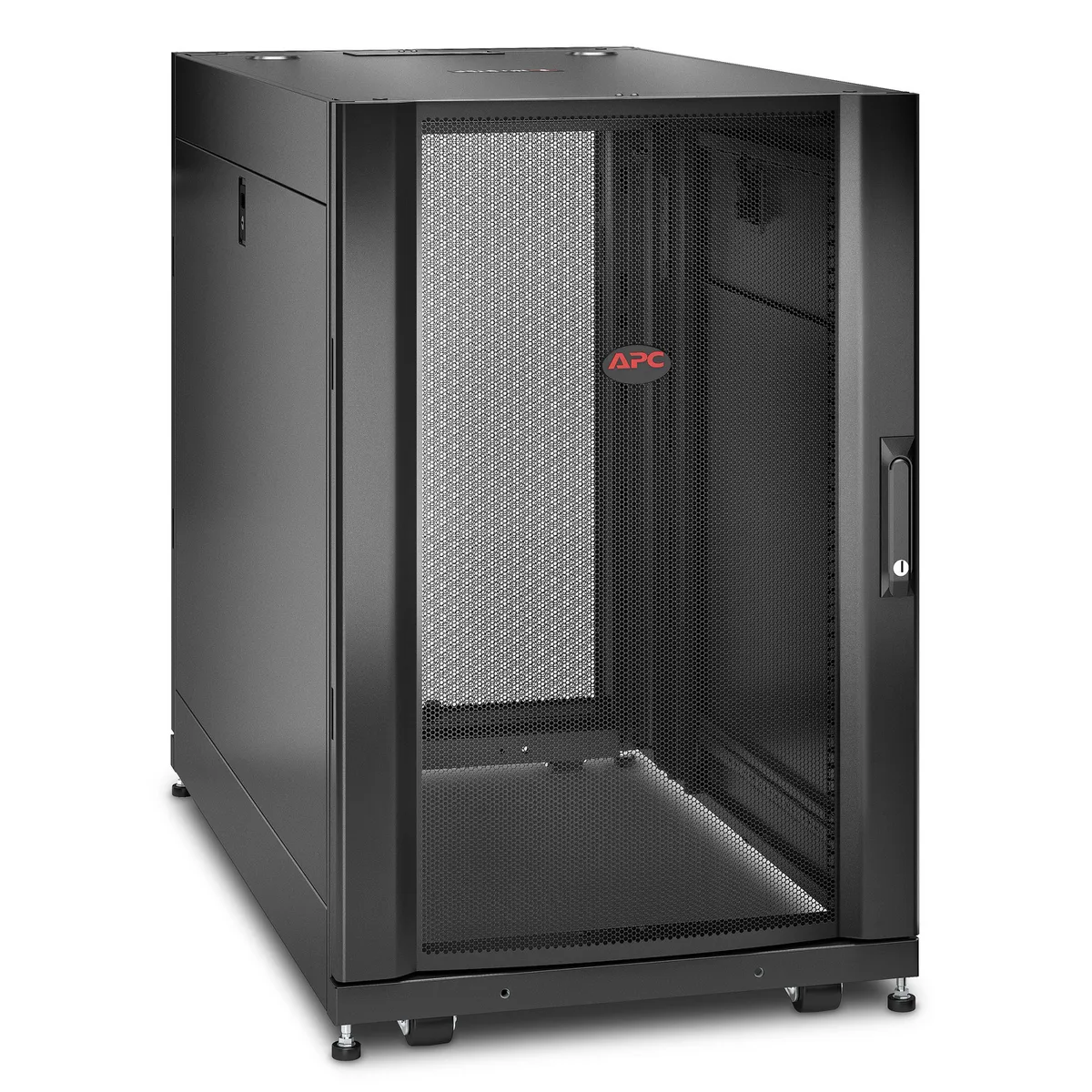

The APC NetShelter SX 18U Rack Enclosure (AR3106) is a freestanding black rack enclosure measuring 600 mm wide, 1070 mm deep and 925 mm high. It provides 18U of rack capacity, includes side panels, and has a lockable front door with key lock.
The enclosure supports a maximum weight capacity of 409 kg, with an adjustable mounting depth from 19.1 cm to 92.1 cm. It is rated IP20 and weighs 72.1 kg. Certifications include UL 2416, UL 60950-1 and REACH, and it complies with RoHS, REACH and WEEE.
This rack is suited to housing servers, networking and other rack-mounted IT equipment in server rooms, offices and smaller data centre deployments where a compact, secure enclosure is required.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | AR3106 |
| Part Number | AR3106 |
| Condition | New |
| Certification | UL 2416, UL 60950-1, REACH |
| International Protection (IP) code | IP20 |
| Front door key lock | Yes |
| Key lock | Yes |
| Side panels included | Yes |
| Product colour | Black |
| Maximum weight capacity | 409 kg |
| Type | Freestanding rack |
| Rack capacity | 18U |
| Compliance certificates | RoHS, REACH, WEEE |
| Sustainable packaging | No |
| Preferred mounting position | no preference |
| Take-back system | No |
| Packaging without single use plastic | No |
| Mounting depth (max) | 92.1 cm |
| Mounting depth (min) | 19.1 cm |
| Weight | 72.1 kg |
| Height | 925 mm |
| Depth | 1070 mm |
| Width | 600 mm |
| Size (imperial) | 48.3 cm (19") |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
The APC NetShelter SX 18U Rack Enclosure 600mm x 1070mm with Sides Black (AR3106) delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the APC NetShelter SX 18U Rack Enclosure 600mm x 1070mm with Sides Black (AR3106): new condition; certification UL 2416, UL 60950-1, REACH; international protection (ip) code IP20; front door key lock Yes; key lock Yes; side panels included Yes; product colour Black. Manufacturer part number AR3106. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
