Brand: APC | Category: Server Racks & Enclosures
SKU: AR3003SP | Part #: AR3003SP | MPN: AR3003SP
Contact for Pricing — Request a Quote

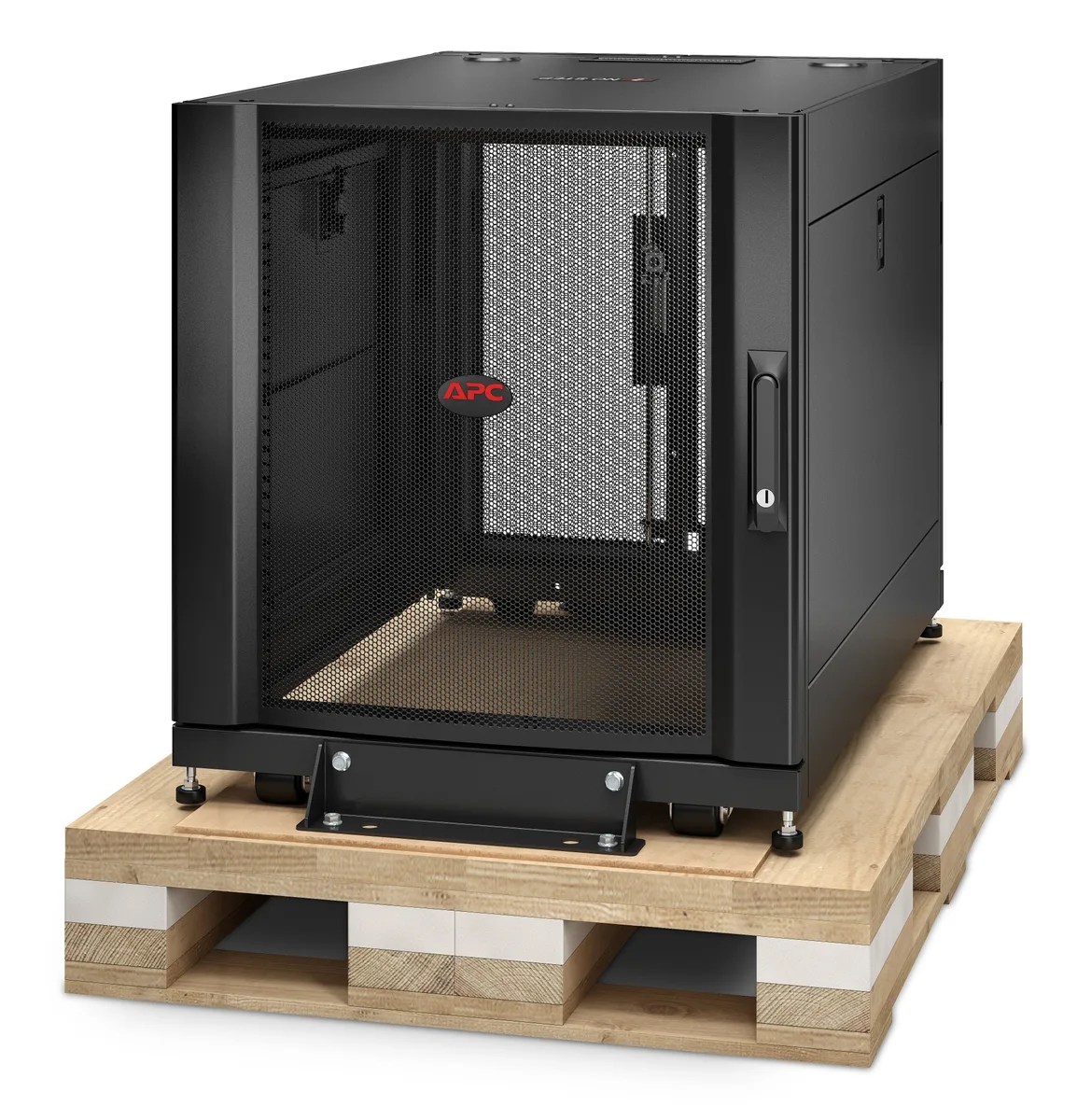

The APC NetShelter SX 12U Server Rack (part number AR3003SP) is a freestanding, closed-frame enclosure measuring 600mm wide by 900mm deep, finished in black and supplied in shock packaging. It provides 12U of rack capacity with adjustable mounting rails, a maximum mounting depth of 75.6 cm and a maximum weight capacity of 272 kg.
Side panels are included and removable, and both the front and perforated back doors can be removed for access. Key locks are fitted, including on the side panels. Castor wheels and adjustable feet assist with positioning and levelling, and cable management features are built in. The rack carries an IP20 rating and is certified to UL 2416 and UL 60950-1, with REACH and RoHS compliance.
This compact enclosure suits server rooms, network closets and smaller IT deployments that need secure, organised housing for rack-mounted servers, networking and power equipment.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Server Racks & Enclosures |
| SKU | AR3003SP |
| Part Number | AR3003SP |
| Condition | New |
| Certification | UL 2416, UL 60950-1 REACH |
| International Protection (IP) code | IP20 |
| Castor wheels | Yes |
| Cable management | Yes |
| Adjustable feet | Yes |
| Adjustable mounting rails | Yes |
| Side panel key lock | Yes |
| Key lock | Yes |
| Side panels included | Yes |
| Removable side panels | Yes |
| Removable front door | Yes |
| Removable back door | Yes |
| Back door construction | Perforated |
| Frame type | Closed |
| Product colour | Black |
| Maximum weight capacity | 272 kg |
| Type | Freestanding rack |
| Rack capacity | 12U |
| Compliance certificates | RoHS |
| Mounting depth (max) | 75.6 cm |
| Mounting depth (min) | 19.1 cm |
| Weight | 54 kg |
| Height | 658 mm |
| Depth | 900 mm |
| Width | 600 mm |
The APC NetShelter SX 12U Server Rack 600mm x 900mm with Sides Black Shock Packaging AR3003SP delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the APC NetShelter SX 12U Server Rack 600mm x 900mm with Sides Black Shock Packaging AR3003SP: new condition; certification UL 2416, UL 60950-1 REACH; international protection (ip) code IP20; castor wheels Yes; cable management Yes; adjustable feet Yes; adjustable mounting rails Yes. Manufacturer part number AR3003SP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
