Brand: APC | Category: Rack PDUs
SKU: APDU10250ME | Part #: APDU10250ME | MPN: APDU10250ME
Contact for Pricing — Request a Quote

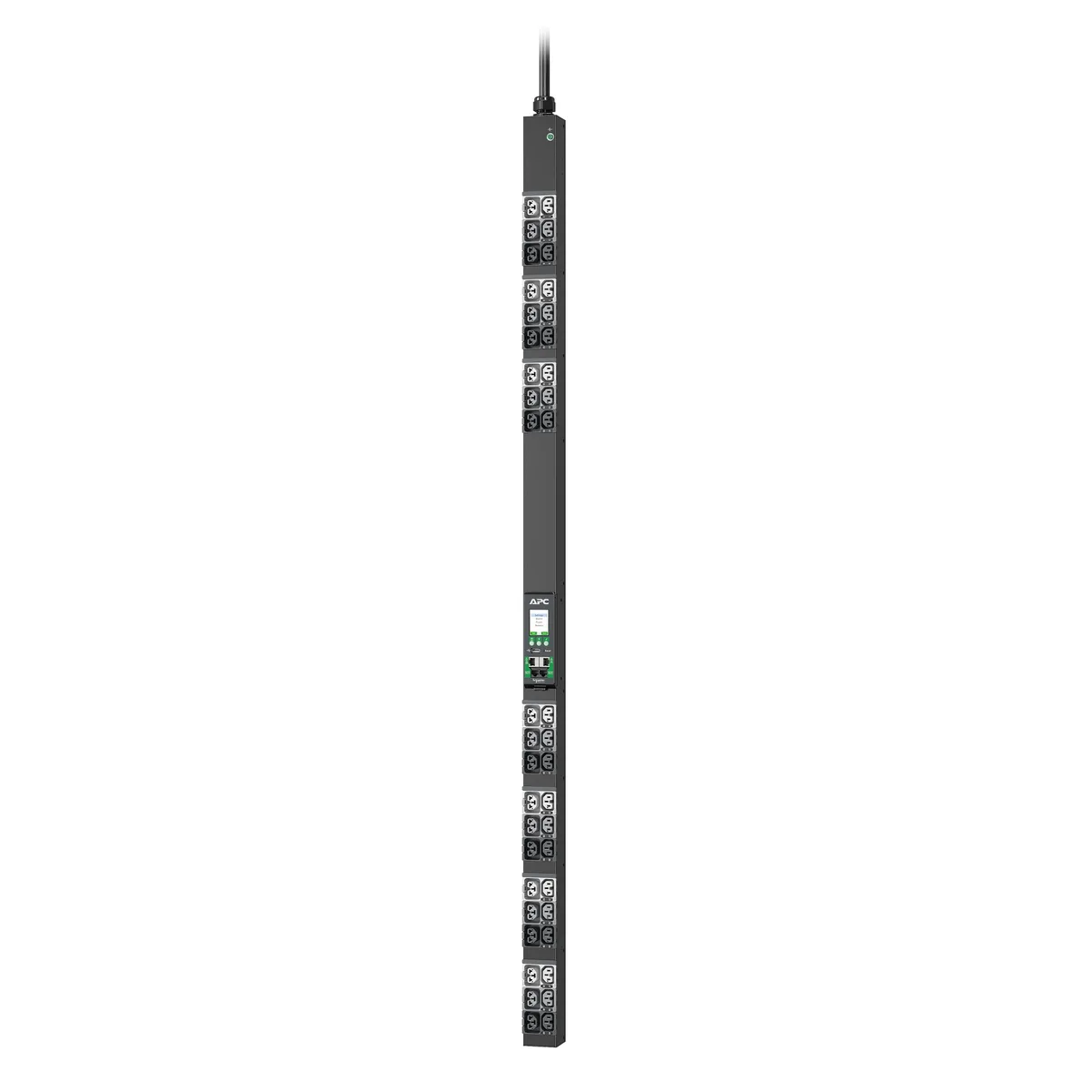

The APC NetShelter Rack PDU Advanced (part number APDU10250ME) is a metered, three-phase rack power distribution unit rated at 415V and 20A, with a maximum power of 11040 W. It provides 42 colour-coded AC outlets using C13, C15, C19 and C21 couplers, and connects via an IEC 60309 power plug on a 1.8 m cable.
Monitoring covers current, voltage, power, temperature and humidity, with outlet control options for lock-out, recycle and turn on. The unit has two RJ-45 Ethernet ports and one USB port, supports daisy chaining, and offers firmware upgrades over the network or USB. Security features include password protection, SNMPv3 and AES encryption up to 256-bit. Overload and surge protection, LED indicators and a reset button are included.
It is compatible with most NetShelter SX enclosures and third-party racks, and suits data centre and server room deployments that need monitored power distribution.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | APC |
| Category | Rack PDUs |
| SKU | APDU10250ME |
| Part Number | APDU10250ME |
| Condition | New |
| USB ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| AC outlet types | C13 coupler, C15 coupler, C19 coupler, C21 coupler |
| Power plug | IEC 60309 |
| AC outlets quantity | 42 AC outlet(s) |
| Compatible products | Compatible with most NetShelter SX enclosures and third-party racks |
| Password protection | Yes |
| Security algorithms | 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3 |
| Cable length | 1.8 m |
| Colour-coded outlets | Yes |
| LED indicators | Activity, Network, Power |
| Daisy chain | Yes |
| Reset button | Yes |
| Firmware upgradeable | Yes |
| Firmware upgradeable via | Network, USB |
| Outlet control | Lock-out, Recycle, Turn on |
| Monitoring | Current, Humidity, Power, Temperature, Voltage |
| Power protection features | Overload |
| Maximum power | 11040 W |
| Surge protection | Yes |
| Maximum total current draw per phase | 16 A |
| Number of phases | 3 |
| Load capacity | 11500 VA |
| Output voltage | 230 V |
| Nominal output voltage | 230 V |
| Maximum current | 16 A |
| AC input frequency | 50 - 60 Hz |
| Nominal input voltage | 400 V |
| Regulatory Approvals | CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1 |
| On/off switch | Yes |
| Display | LCD |
| Product colour | Black |
| Mounting | Vertical |
| Rack capacity | 0U |
| Form factor | Rackmount |
| Type | Three-phase |
| PDU types | Metered |
| Operating temperature (T-T) | 23 - 140 °F |
| Non-operating altitude | 0 - 15240 m |
| Operating altitude | 0 - 3048 m |
The Netshelter Rack PDU Advanced, METERED, 3PH, 415V, 20A, 42 Outlet (APDU10250ME) delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
Key specifications for the Netshelter Rack PDU Advanced, METERED, 3PH, 415V, 20A, 42 Outlet (APDU10250ME): new condition; usb ports quantity 1; ethernet lan (rj-45) ports 2; ac outlet types C13 coupler, C15 coupler, C19 coupler, C21 coupler; power plug IEC 60309; ac outlets quantity 42 AC outlet(s); compatible products Compatible with most NetShelter SX enclosures and third-party racks. Manufacturer part number APDU10250ME. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
