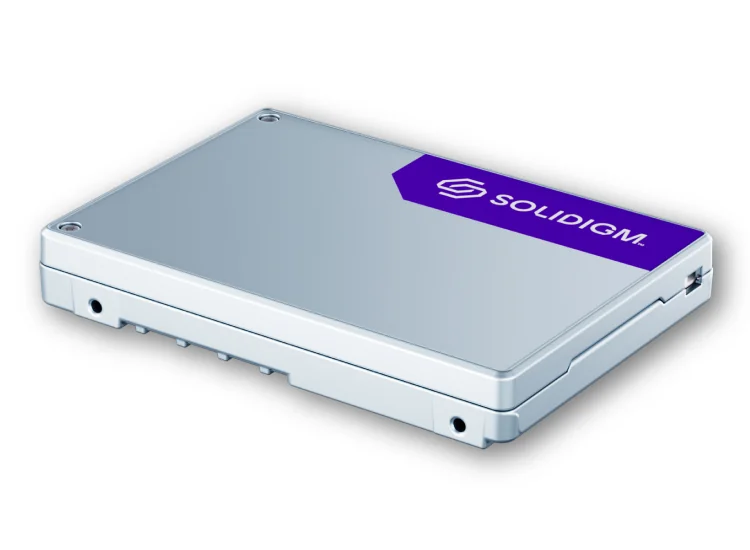

Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KX038T1N1 | Part #: SSDPF2KX038T1N1 | MPN: SSDPF2KX038T1N1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD
The Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 3.84TB capacity, PCIe form factor, NVMe interface. The Solidigm D5-P5336 series 3.84TB NVMe SSD (SSDPF2KX038T1N1) is a high-density, read-optimized enterprise solid-state drive built on QLC NAND flash technology and delivered in the E1.L (Ruler/EDSFF) form factor. Leveraging the PCIe 4.0 x4 interface with NVMe 1.4 protocol, this drive is engineered to deliver high sequential read throughput and strong random read IOPS at scale, making it well-suited for data center environments that prioritize capacity efficiency alongside co Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KX038T1N1 |
| Part Number | SSDPF2KX038T1N1 |
| Condition | New |
| Capacity | 3.84TB |
| Form Factor | PCIe |
| Interface | NVMe |
| Series | D5-P5336 |
| Capacity | 3.84 TB |
| Form Factor | E1.L 9.5mm (EDSFF Ruler) |
| Interface | PCIe 4.0 x4 |
| Protocol | NVMe 1.4 |
| NAND Flash Type | QLC (Quad-Level Cell) |
| Sequential Read (Max) | Up to 7,000 MB/s |
| Sequential Write (Max) | Up to 3,600 MB/s |
| Random Read IOPS (4K) | Up to 1,500,000 IOPS |
| Random Write IOPS (4K) | Up to 200,000 IOPS |
| Endurance (DWPD) | 1 DWPD (over 5 years) |
| Total Bytes Written (TBW) | 7,008 TBW |
| Power Loss Protection | Yes (capacitor-based) |
| Encryption | AES 256-bit (TCG Opal 2.0) |
| Operating Temperature | 0°C to 70°C |
| Power (Active Read) | Approximately 14 W |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Secure Erase | Yes (Cryptographic Erase supported) |
Frequently Asked Questions about Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD do?
At 3.84TB, the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD: capacity 3.84TB; form factor PCIe NVMe; interface NVMe; new condition; capacity 3.84TB; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KX038T1N1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KX038T1N1 D5 / D7 Series 3.84TB PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
