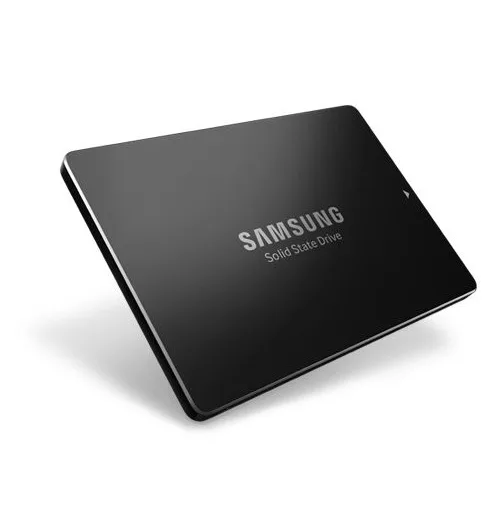

Samsung PM883 240GB SATA 6Gb/s 2.5" SSD MZ7LH240HAHQ-00005

About Samsung PM883 240GB SATA 6Gb/s 2.5" SSD MZ7LH240HAHQ-00005

The Samsung PM883 is a high-performance solid-state drive in the 2.5" form factor, launched on January 26th, 2018. It was available in capacities ranging from 240 GB to 7.5 TB. This model, the 240 GB variant, interfaces with the rest of the system using a SATA 6 Gbps connection. The SSD controller is the MJX Maru (S4LR030) from Samsung, and it includes a DRAM cache chip for enhanced performance.

Samsung has equipped the PM883 with their 64-layer V-NAND TLC flash memory, ensuring both speed and reliability for enterprise workloads. The drive is rated for sequential read speeds of up to 550 MB/s and sequential write speeds of up to 320 MB/s. Its random I/O performance reaches up to 98,000 IOPS for reads and 14,000 IOPS for writes, making it suitable for a variety of read-intensive applications.

With an endurance rating of 341 TBW and a manufacturer support, the Samsung PM883 is built for durability and longevity in demanding data center environments. It also features power-loss protection and AES-256 encryption to safeguard data. The combination of performance, endurance, and data protection makes the PM883 an excellent choice for enterprise storage solutions.

Technical Specifications

Key Features

• Capacity: 240 GB
• Form Factor: 2.5"
• Interface: SATA 6 Gbps
• Protocol: AHCI
• Controller: Samsung MJX Maru (S4LR030)
• NAND Flash: Samsung 64-layer V-NAND V4 TLC

Ideal Use Cases

• Enterprise IT infrastructure
• Data center modernization
• Cloud and hybrid deployments
• Business continuity solutions
• Performance optimization
• Scalable computing solutions
