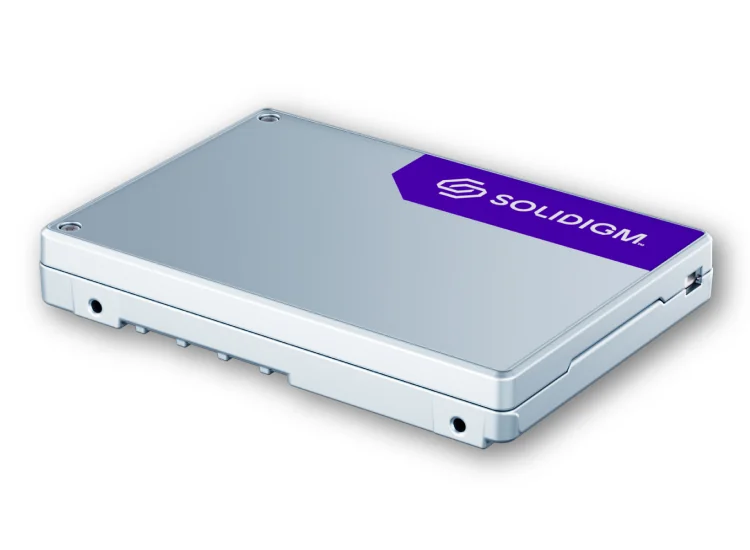

Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDPF2KE032T1N1 | Part #: SSDPF2KE032T1N1 | MPN: SSDPF2KE032T1N1
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD
The Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features PCIe form factor, NVMe interface. The Solidigm D5-P5336 series, identified by manufacturer part number SSDPF2KE032T1N1, is a high-density PCIe 4.0 NVMe U.2 enterprise SSD delivering 3.84 TB of usable capacity. Built on Solidigm's 192-layer QLC NAND technology and paired with a purpose-built enterprise controller, the drive is engineered to sustain consistent throughput and latency under the mixed, queue-deep workloads characteristic of modern data centers. The U.2 (2.5-inch, 15mm) form factor ensures broad co Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDPF2KE032T1N1 |
| Part Number | SSDPF2KE032T1N1 |
| Condition | New |
| Form Factor | PCIe |
| Interface | NVMe |
| Manufacturer Part Number | SSDPF2KE032T1N1 |
| Product Series | D5-P5336 |
| Form Factor | U.2 2.5-inch, 15mm (SFF-8639 connector) |
| Interface | PCIe 4.0 x4, NVMe 1.4 |
| Raw Capacity | 3.84 TB |
| NAND Technology | 192-layer QLC (Quad-Level Cell) 3D NAND |
| Sequential Read Speed | Up to 7,000 MB/s |
| Sequential Write Speed | Up to 3,600 MB/s |
| Random Read IOPS (4K) | Up to 1,500,000 IOPS |
| Random Write IOPS (4K) | Up to 210,000 IOPS |
| Read Latency (QD1) | 120 µs (typical) |
| Write Latency (QD1) | 30 µs (typical) |
| Drive Writes Per Day (DWPD) | 0.58 DWPD |
| Total Bytes Written (TBW) | 4,015 TBW (over 5-year rated life) |
| Power Consumption (Active Read) | Up to 25 W |
| Power Consumption (Idle) | Approximately 10 W |
| Data Integrity | End-to-end data protection (T10 DIF/DIX), Power Loss Imminent (PLI) protection |
| Encryption | 256-bit AES hardware encryption, TCG Opal 2.0, TCG Enterprise SSC |
| Operating Temperature | 0°C to 70°C |
| MTBF | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD
What does the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD do?
the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The NVMe interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD?
Key specifications for the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD: form factor PCIe NVMe; interface NVMe; new condition; series D5 / D7 Series; interface / form factor PCIe NVMe; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDPF2KE032T1N1. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD compatible with my infrastructure?
The Solidigm / Intel SSDPF2KE032T1N1 D5 / D7 Series PCIe NVMe SSD uses a NVMe interface in a PCIe NVMe form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
