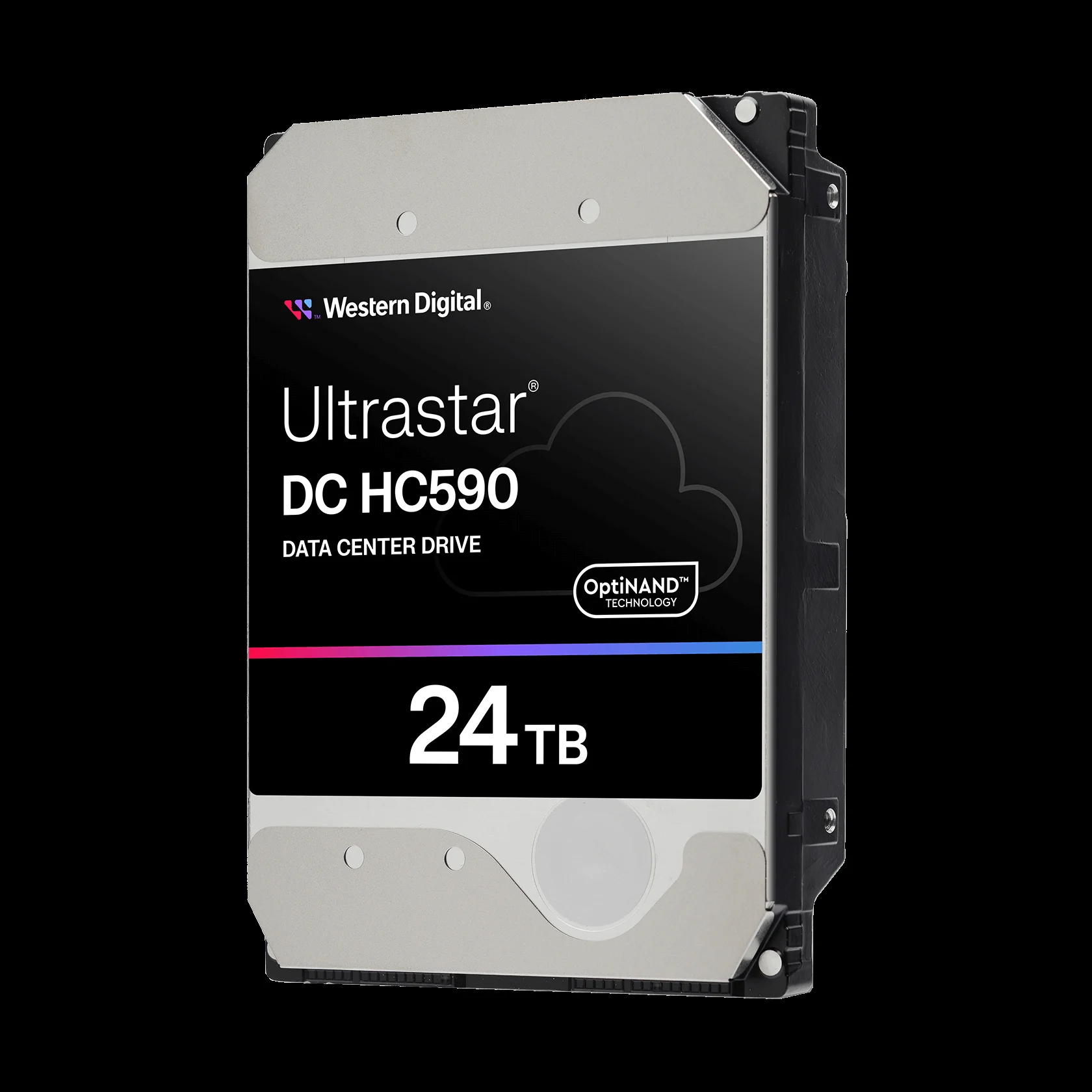

WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD 0F59373
Brand: Western Digital | Category: Enterprise HDDs
SKU: 0F59373 | Part #: 0F59373 | MPN: WUH722624AL5204
Contact for Pricing — Request a Quote
About the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD 0F59373
Operating at just 6.5 W idle and 9.5 W during active read/write, the Western Digital Ultrastar HC590 24 TB enterprise HDD delivers exceptional power efficiency in capacity-dense JBOD configurations where every watt compounds across hundreds of drives. This 3.5-inch SAS 12 Gb/s drive combines helium-sealed HelioSeal® technology with 10 internal platters to achieve 24 TB of raw storage in a compact 147.0 mm × 101.6 mm × 26.1 mm form factor, weighing approximately 650 g.
Purpose-built for storage architects managing mission-critical infrastructure, the Ultrastar HC590 (part number WUH722624AL5204) spins at 7,200 RPM with a 512 MiB cache buffer and boasts a non-recoverable read error rate of just 1 per 10¹⁵ bits read. Its triple-stage actuator (TSA) technology ensures precision positioning, while the 2,500,000-hour MTBF and 550 TB/year workload rating provide confidence for continuous-duty deployments across hyperscale and enterprise data centers. The drive supports both 512e and 4Kn sector sizes for flexible integration into existing storage ecosystems. Operating safely from 0°C to 60°C, Western Digital's Ultrastar HC590 is engineered for the demands of high-capacity, power-conscious environments.
Typical Deployment Scenarios
- High-capacity JBOD arrays requiring maximum storage density per rack unit with minimal thermal load
- Warm archival and sequential-access workloads benefiting from 24 TB per-drive consolidation
- Hyperscale data center expansions where cumulative power consumption directly impacts operational margins
- Enterprise backup and disaster recovery infrastructure requiring sustained 550 TB/year workload handling
- Helium-sealed environments demanding extended service life and reduced mechanical wear over multi-year cycles
Contact Omnixon Global to request a quotation for the Western Digital Ultrastar HC590 24 TB SAS enterprise HDD.
Technical Specifications
| Brand | Western Digital |
| Category | Enterprise HDDs |
| SKU | 0F59373 |
| Part Number | 0F59373 |
| MPN | WUH722624AL5204 |
| Condition | New |
| Capacity | 24 TB |
| Form Factor | 3.5" |
| Interface | SAS 12Gb/s |
| Manufacturer Part Number | 0F59373 |
| Product Family | Ultrastar HC590 |
| Form Factor | 3.5 Inch |
| Interface | SAS 12 Gb/s |
| Capacity | 24 TB |
| Rotational Speed | 7,200 RPM |
| Cache Buffer | 512 MiB |
| Sector Size | 512e / 4Kn |
| Workload Rating | 550 TB/year |
| MTBF | 2,500,000 hours |
| Non-Recoverable Read Error Rate | 1 per 10¹⁵ bits read |
| Number of Disks | 10 |
| Helium-Sealed Enclosure | Yes (HelioSeal®) |
| Actuator Technology | Triple-Stage Actuator (TSA) |
| Power: Active Read/Write (Typical) | 9.5 W |
| Power: Idle | 6.5 W |
| Operating Temperature | 0°C to 60°C |
| Dimensions (L × W × H) | 147.0 mm × 101.6 mm × 26.1 mm |
| Weight | 650 g (approximate) |
| Dual-Port SAS | Yes |
| RoHS Compliant | Yes |
Frequently Asked Questions about WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD 0F59373
What does the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD do?
At 24 TB, the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 12Gb/s interface is supported by major server platforms.
What are the headline specs of the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD?
Key specifications for the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD: capacity 24 TB; form factor 3.5 Inch; interface SAS 12Gb/s; 5 Years support; new condition; model WUH722624AL5204; part number 0F59373; capacity 24 TB; interface SAS 12Gb/s; form factor 3.5 Inch; random write iops 2.5 million. Manufacturer part number 0F59373. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD compatible with my infrastructure?
The WD Ultrastar HC590 24 TB 3.5 Inch SAS 12Gb/s Enterprise HDD uses a SAS 12Gb/s interface in a 3.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
