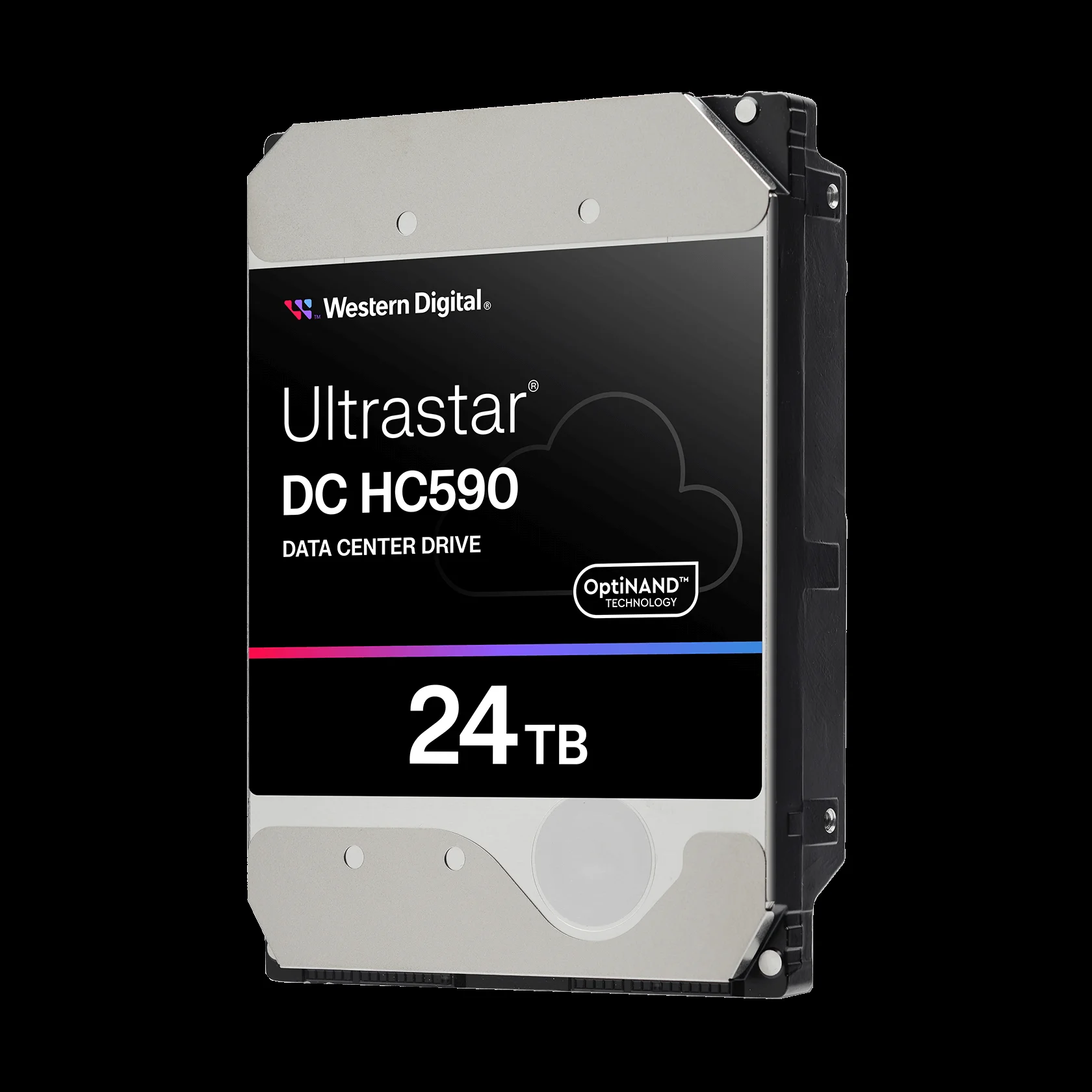

WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD 0F65684
Brand: Western Digital | Category: Enterprise HDDs
SKU: 0F65684 | Part #: 0F65684 | MPN: WUH722624ALE6L4
Contact for Pricing — Request a Quote
About the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD 0F65684
The WD Ultrastar HC590 is a SATA 6 Gb/s 3.5-inch enterprise hard drive delivering an MTBF of 2,500,000 hours, designed for demanding data center environments where reliability and capacity are paramount. This 24 TB drive represents Western Digital's commitment to high-performance storage solutions that balance power efficiency with robust performance across continuous workloads.
Built on a 10-platter helium-sealed architecture, the HC590 (part number WUH722624ALE6L4) offers storage architects and IT procurement teams the density and dependability required for large-scale deployments. Western Digital engineered this drive with third-generation multi-axis shock protection and RAFF rotational vibration compensation technology to ensure stability in rack-mounted environments. With an annualized workload rating of 550 TB/year, a 512 MB cache buffer, and operating specifications spanning 0°C to 60°C, the HC590 addresses the thermal and performance demands of modern enterprise storage infrastructure. The drive operates at 7200 RPM with typical power consumption of 9.0 W during read/write operations and 5.0 W in idle mode, reducing operational costs in large-scale deployments. Its 512e/4Kn sector size maintains compatibility across legacy and modern systems.
Key Specifications
- Manufacturer: Western Digital
- Model: Ultrastar HC590
- Part Number: WUH722624ALE6L4
- Formatted Capacity: 24 TB
- Form Factor: 3.5 Inch
- Interface: SATA 6 Gb/s
- Spindle Speed: 7200 RPM
- Cache: 512 MB
- MTBF: 2,500,000 hours
- Annualized Workload Rating: 550 TB/year
- Helium Sealed: Yes (HelioSeal)
For enterprise-scale storage requirements, contact Omnixon Global to request a formal quotation on the WD Ultrastar HC590.
Technical Specifications
| Brand | Western Digital |
| Category | Enterprise HDDs |
| SKU | 0F65684 |
| Part Number | 0F65684 |
| MPN | WUH722624ALE6L4 |
| Condition | New |
| Capacity | 24 TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Model Series | HC590 |
| Manufacturer Part Number | 0F65684 |
| Formatted Capacity | 24 TB |
| Form Factor | 3.5 Inch |
| Interface | SATA 6 Gb/s |
| RPM | 7200 RPM |
| Cache Buffer | 512 MB |
| Sector Size | 512e / 4Kn |
| Platters | 10 |
| Helium Sealed | Yes (HelioSeal) |
| MTBF | 2,500,000 hours |
| Annualized Workload Rating | 550 TB/year |
| Power – Operating (Typical Read/Write) | 9.0 W |
| Power – Idle | 5.0 W |
| Operating Temperature | 0°C to 60°C |
| Non-Operating Temperature | -40°C to 70°C |
| Rotational Vibration Compensation | RAFF Technology |
| Shock Protection | Third-generation multi-axis |
| Security Feature | Instant Secure Erase (ISE) |
| Dimensions (L x W x H) | 147.0 mm x 101.6 mm x 26.1 mm |
| Weight | 650 g (approximate) |
Frequently Asked Questions about WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD 0F65684
What does the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD do?
At 24 TB, the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA 6Gb/s interface is supported by major server platforms.
What are the headline specs of the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD?
Key specifications for the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD: capacity 24 TB; form factor 3.5 Inch; interface SATA 6Gb/s; 5 Years support; new condition; model WUH722624ALE6L4; part number 0F65684; capacity 24 TB; interface SATA 6Gb/s; form factor 3.5 Inch; random write iops 2.5 million. Manufacturer part number 0F65684. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD compatible with my infrastructure?
The WD Ultrastar HC590 24 TB 3.5 Inch SATA 6Gb/s Enterprise HDD uses a SATA 6Gb/s interface in a 3.5 Inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
