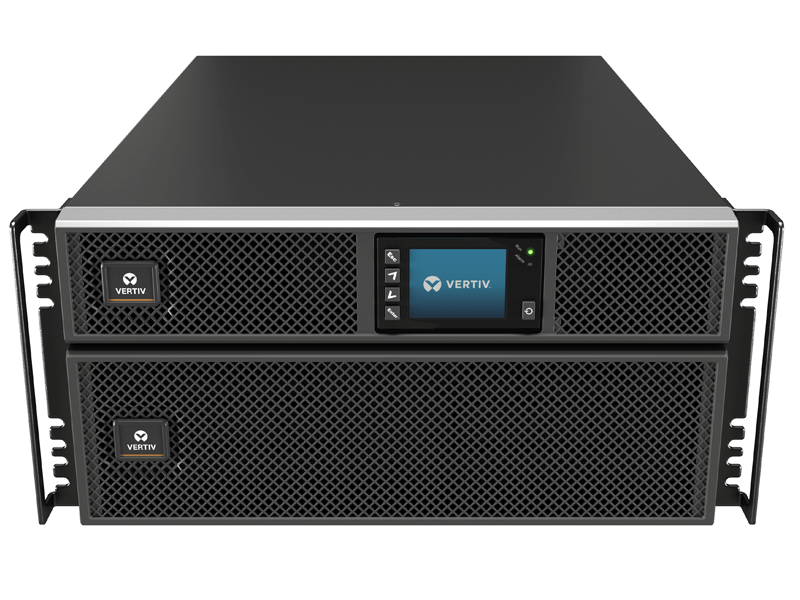

Vertiv Liebert GXT5 10000VA 5U Online UPS
Brand: Vertiv | Category: UPS & Power Protection
SKU: GXT5-10KIRT5UXLN | Part #: GXT5-10KIRT5UXLN | MPN: GXT5-10KIRT5UXLN
Contact for Pricing — Request a Quote
About the Vertiv Liebert GXT5 10000VA 5U Online UPS
The Vertiv Liebert GXT5 10000VA 5U Online UPS (part number GXT5-10KIRT5UXLN) features IEC C13/C19 output receptacles and accepts input voltages ranging from 100–150V / 160–280V AC in wide input mode, with nominal operation at 200–240V AC. This 5U rackmount unit delivers 10,000 VA and 10,000 W of continuous output power at a 1.0 power factor, making it a true enterprise-grade online double-conversion system. The Vertiv Liebert GXT5 topology eliminates transfer time entirely—zero milliseconds—ensuring zero-break power delivery to mission-critical infrastructure, while the configurable output voltage options (200V / 208V / 220V / 230V / 240V AC) and selectable frequency (50 or 60 Hz ± 0.1 Hz in inverter mode) with ±2% voltage regulation provide precise compatibility across global data centre environments.
IT procurement teams, storage architects, and network infrastructure managers choose the Vertiv Liebert GXT5 10000VA model to protect sensitive server clusters, SAN arrays, and network equipment in mid-to-large enterprise deployments. The system's hot-swappable Valve-Regulated Lead-Acid (VRLA) battery architecture enables rapid maintenance without downtime, while the auto-sensing input frequency range of 40–70 Hz accommodates variable electrical conditions. Multiple communication pathways—USB, RS-232, and two IntelliSlot card slots supporting SNMP and Modbus protocols—integrate seamlessly into existing monitoring and management frameworks. Operating reliably across 0–40 °C ambient temperatures and 0–95% non-condensing humidity, this unit is engineered for the demanding thermal and environmental conditions typical of dense data centre facilities.
Omnixon Global stocks the Vertiv Liebert GXT5 10000VA 5U Online UPS to serve enterprise power protection requirements across the UAE and GCC region. To request detailed specifications, volume pricing, technical documentation, or to configure this system for your infrastructure needs, please submit an RFQ through Omnixon Global.
Technical Specifications
| Brand | Vertiv |
| Category | UPS & Power Protection |
| SKU | GXT5-10KIRT5UXLN |
| Part Number | GXT5-10KIRT5UXLN |
| Condition | New |
| Capacity | 10000 VA |
| Form Factor | 5U |
| Product Line | Liebert GXT5 |
| Model | GXT5-10000MVRT5UXLN |
| Topology | Online Double-Conversion |
| VA Rating | 10000 VA |
| Watt Rating | 10000 W |
| Output Power Factor | 1.0 |
| Form Factor | 5U Rackmount |
| Input Voltage Range | 100–150V / 160–280V AC (wide input mode) |
| Nominal Input Voltage | 200–240V AC |
| Input Frequency | 40–70 Hz (auto-sensing) |
| Output Voltage | 200V / 208V / 220V / 230V / 240V AC (configurable) |
| Output Voltage Regulation | ±2% |
| Output Frequency | 50 or 60 Hz ± 0.1 Hz (inverter mode) |
| Transfer Time | 0 ms (true online, no transfer) |
| Battery Type | Valve-Regulated Lead-Acid (VRLA), hot-swappable |
| Communication Interfaces | USB, RS-232, IntelliSlot (2 slots) |
| Supported Protocols | SNMP, Modbus (via optional IntelliSlot card) |
| Operating Temperature | 0–40 °C |
| Humidity | 0–95% non-condensing |
| Audible Noise | ≤55 dBA at 1 metre |
| Dimensions (H × W × D) | 219 × 482 × 698 mm (5U) |
| Regulatory Compliance | UL 1778, CE, RoHS |
Frequently Asked Questions about Vertiv Liebert GXT5 10000VA 5U Online UPS
What does the Vertiv Liebert GXT5 10000VA 5U Online UPS do?
The Vertiv Liebert GXT5 10000VA 5U Online UPS delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.
What are the headline specs of the Vertiv Liebert GXT5 10000VA 5U Online UPS?
Key specifications for the Vertiv Liebert GXT5 10000VA 5U Online UPS: new condition; brand Vertiv; series Liebert GXT5; model GXT5-10KIRT5UXLN; capacity 10000VA / 10000W; topology Online Double-Conversion; power factor 1.0. Manufacturer part number GXT5-10KIRT5UXLN. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
