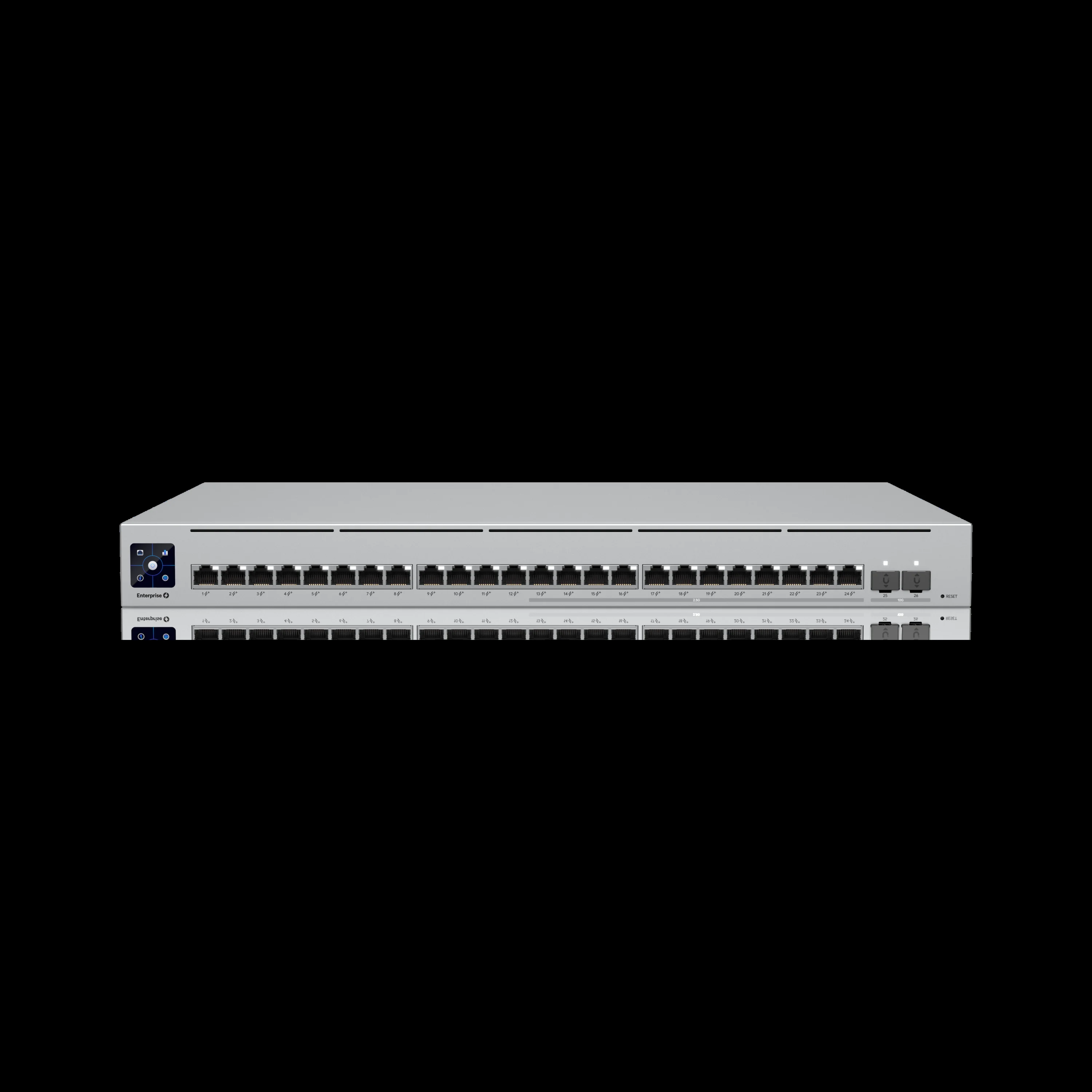

UniFi Switch Enterprise 24 PoE 2.5GbE
Brand: Ubiquiti | Category: Network Switches
SKU: UBQ-USW-Enterprise-24-PoE | Part #: USW-Enterprise-24-PoE | MPN: USW-Enterprise-24-PoE
Contact for Pricing — Request a Quote
About the UniFi Switch Enterprise 24 PoE 2.5GbE
As a managed Layer 3 switch, the UniFi Switch Enterprise 24 PoE 2.5GbE determines fabric role through static routing and inter-VLAN routing capabilities, enabling network architects to build segmented, scalable access-layer topologies. Manufactured by Ubiquiti, the USW-Enterprise-24-PoE combines 24 × 2.5GbE PoE++ access ports with 4 × 10G SFP+ uplink ports, delivering 128 Gbps switching capacity and 95.23 Mpps forwarding rate in a compact 1U form factor. This switch is purpose-built for enterprise deployments where powered devices—wireless access points, IP cameras, and edge compute nodes—demand both high bandwidth and reliable power delivery without compromising on uplink speed.
Network engineers and IT procurement teams will appreciate the 720W total PoE power budget, which supports IEEE 802.3bt (PoE++) standard with backward compatibility to 802.3at and 802.3af. Management is unified through the Ubiquiti UniFi Network application, available as an on-premises or cloud-hosted controller, ensuring consistent policy enforcement across your infrastructure. The fanless passive cooling design eliminates noise and maintenance overhead, while the operating temperature range of 0–40°C accommodates diverse deployment environments. Power efficiency is excellent, consuming just 35W without PoE load, and the device accepts standard 100–240V AC input at 50/60Hz. Built-in 6kV ESD protection safeguards against static discharge in high-traffic installation areas. For detailed specifications, compatibility guidance, or volume pricing, please contact Omnixon Global to submit your RFQ.
Key Specifications
- Manufacturer: Ubiquiti
- 2.5GbE PoE++ Access Ports: 24 × RJ45 (IEEE 802.3bt)
- 10G SFP+ Uplink Ports: 4 × SFP+
- Switching Capacity: 128 Gbps
- Total PoE Power Budget: 720W
- Form Factor: 1U rack-mountable; Dimensions 440 × 285 × 44 mm
Technical Specifications
| Brand | Ubiquiti |
| Category | Network Switches |
| SKU | UBQ-USW-Enterprise-24-PoE |
| Part Number | USW-Enterprise-24-PoE |
| Condition | New |
| Interface | Ethernet / SFP / SFP+ |
| Speed | 10GbE |
| Model | UniFi Switch Enterprise 24 PoE |
| Switch Type | Managed Layer 3 |
| Total Ports | 28 |
| 2.5GbE PoE++ Access Ports | 24 × RJ45 (2.5GbE, 802.3bt PoE++) |
| 10G SFP+ Uplink Ports | 4 × SFP+ |
| PoE Standard | IEEE 802.3bt (PoE++), backward compatible with 802.3at and 802.3af |
| Total PoE Power Budget | 720W |
| Switching Capacity | 128 Gbps |
| Forwarding Rate | 95.23 Mpps |
| Layer 3 Features | Static routing, inter-VLAN routing |
| Cooling | Fanless (passive cooling) |
| Form Factor | 1U rack-mountable |
| Management | UniFi Network application (on-premises or cloud-hosted controller) |
| Dimensions | 440 × 285 × 44 mm (17.32 × 11.22 × 1.73 in) |
| Input Voltage | 100–240V AC, 50/60Hz |
| Maximum Power Consumption (without PoE) | 35W |
| ESD Protection | 6kV |
| Operating Temperature | 0–40°C (32–104°F) |
| Operating Humidity | 5–95% non-condensing |
Frequently Asked Questions about UniFi Switch Enterprise 24 PoE 2.5GbE
What does the UniFi Switch Enterprise 24 PoE 2.5GbE do?
The UniFi Switch Enterprise 24 PoE 2.5GbE is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the UniFi Switch Enterprise 24 PoE 2.5GbE?
Key specifications for the UniFi Switch Enterprise 24 PoE 2.5GbE: interface Ethernet / SFP / SFP+; 1 year support; new condition. Manufacturer part number USW-Enterprise-24-PoE. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the UniFi Switch Enterprise 24 PoE 2.5GbE compatible with my infrastructure?
The UniFi Switch Enterprise 24 PoE 2.5GbE interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
