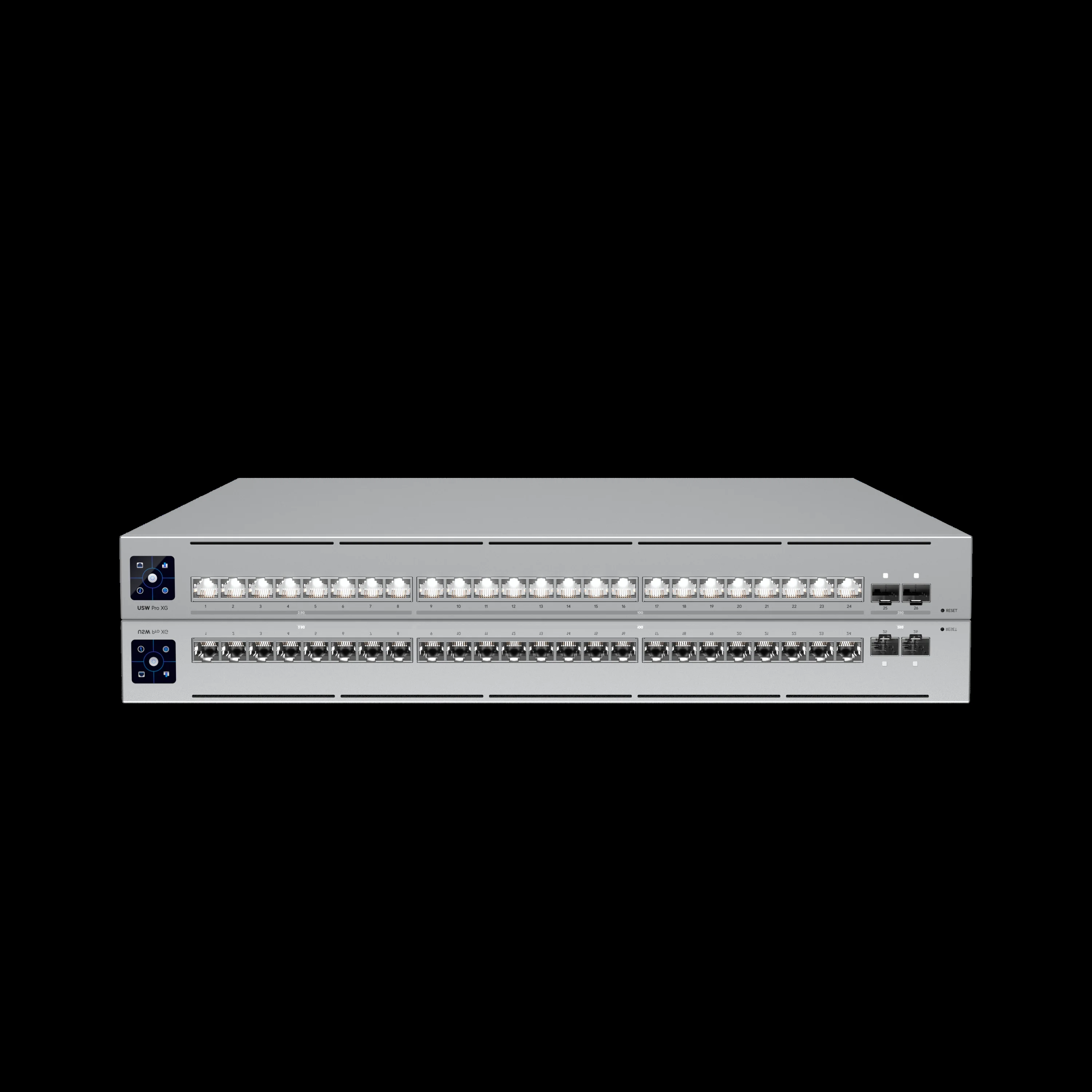

UniFi Switch Pro XG 24
Brand: Ubiquiti | Category: Network Switches
SKU: UBQ-USW-Pro-XG-24 | Part #: USW-Pro-XG-24 | MPN: USW-Pro-XG-24
Contact for Pricing — Request a Quote
About the UniFi Switch Pro XG 24
The UniFi Switch Pro XG 24 from Ubiquiti delivers enterprise-grade switching performance for data centre and campus network cores, supporting redundant power input via UniFi SmartPower RPS to ensure continuous uptime. Network engineers and IT infrastructure teams will appreciate the 680 Gbps switching capacity and 505.95 Mpps forwarding rate, which provide the throughput needed for high-density 10 Gigabit environments.
This Layer 3 managed switch (USW-Pro-XG-24) combines 24 × 10GbE RJ45 ports with 4 × 25G SFP28 uplink ports, delivering flexible bandwidth scaling for growth. Built-in routing capabilities including static routing and inter-VLAN routing, combined with comprehensive VLAN support via 802.1Q tagging and advanced QoS prioritisation through 802.1p and DSCP, enable fine-grained traffic control. The switch operates under UniFi Network Application management—available as cloud or on-premises deployment—providing centralised visibility across your network infrastructure. Its compact 1U rackmount form factor (442.4 × 405.1 × 44.4 mm) fits standard 19-inch racks, while a dedicated 1 × 1G RJ45 management port ensures out-of-band access independent of data-plane activity. Additional features include RSTP and MSTP spanning tree support, LACP link aggregation (802.3ad), and IGMP snooping (v1, v2, v3) for multicast efficiency.
Key Specifications
- Manufacturer: Ubiquiti
- Part Number: USW-Pro-XG-24
- 10GbE Ports: 24 × RJ45
- Uplink Ports: 4 × 25G SFP28
- Switching Capacity: 680 Gbps
- Power Input: 100–240V AC, 50/60 Hz with UniFi SmartPower RPS redundancy support
- Management: UniFi Network Application (cloud or on-premises)
- Form Factor: 1U rackmount, 19-inch
To request a quote or learn more about the Ubiquiti UniFi Switch Pro XG 24, contact the Omnixon Global team today.
Technical Specifications
| Brand | Ubiquiti |
| Category | Network Switches |
| SKU | UBQ-USW-Pro-XG-24 |
| Part Number | USW-Pro-XG-24 |
| Condition | New |
| Interface | Ethernet / SFP / SFP+ |
| Speed | 25GbE |
| Model | UniFi Switch Pro XG 24 |
| Manufacturer Part Number | USW-Pro-XG-24 |
| Management | UniFi Network Application (software-defined, cloud or on-premises) |
| Switching Layer | Layer 3 |
| 10GbE RJ45 Ports | 24 |
| 25G SFP28 Uplink Ports | 4 |
| Management Port | 1 × 1G RJ45 (dedicated out-of-band) |
| Console Port | 1 × RJ45 |
| Switching Capacity | 680 Gbps |
| Forwarding Rate | 505.95 Mpps |
| Routing | Static routing, inter-VLAN routing |
| Spanning Tree Protocol | RSTP, MSTP |
| Link Aggregation | LACP (802.3ad) |
| VLAN Support | 802.1Q VLAN tagging |
| QoS | 802.1p, DSCP |
| IGMP Snooping | v1, v2, v3 |
| Form Factor | 1U rackmount, 19-inch |
| Dimensions | 442.4 × 405.1 × 44.4 mm (17.4 × 15.95 × 1.75 in) |
| Power Input | 100–240V AC, 50/60 Hz; supports UniFi SmartPower RPS for redundant power |
| Maximum Power Consumption | 75W |
| Operating Temperature | 0–40 °C (32–104 °F) |
| Operating Humidity | 5–95% non-condensing |
Frequently Asked Questions about UniFi Switch Pro XG 24
What does the UniFi Switch Pro XG 24 do?
The UniFi Switch Pro XG 24 is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the UniFi Switch Pro XG 24?
Key specifications for the UniFi Switch Pro XG 24: interface Ethernet / SFP / SFP+; 1 year support; new condition. Manufacturer part number USW-Pro-XG-24. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the UniFi Switch Pro XG 24 compatible with my infrastructure?
The UniFi Switch Pro XG 24 interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
