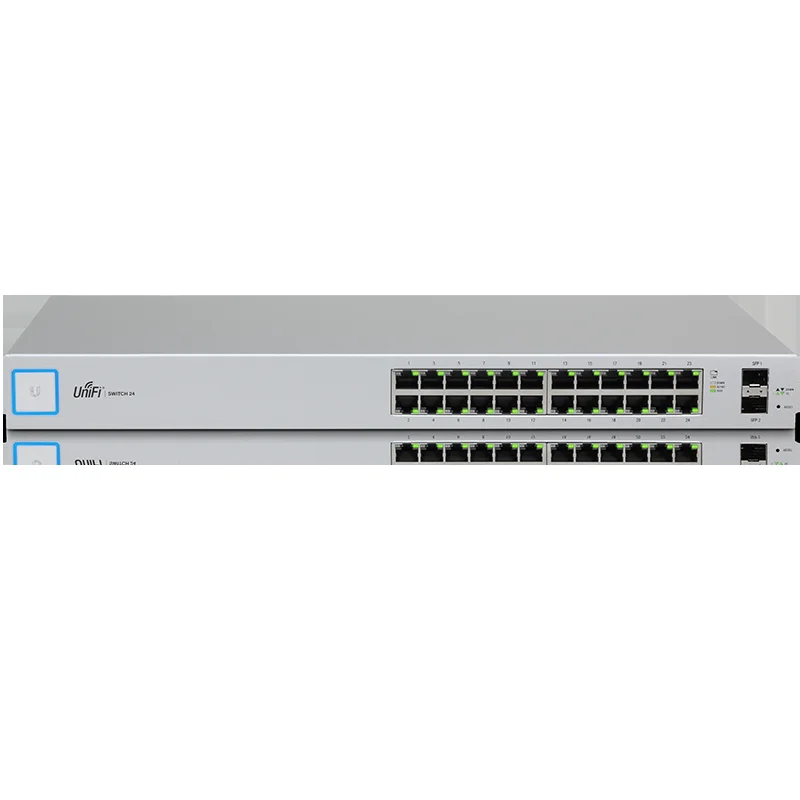

UniFi Switch 24 (Gen 1)
Brand: Ubiquiti | Category: Network Switches
SKU: UBQ-US-24 | Part #: US-24 | MPN: US-24
Contact for Pricing — Request a Quote
About the UniFi Switch 24 (Gen 1)
The UniFi Switch 24 (Gen 1) operates as a Layer 2 managed switch, delivering straightforward, reliable connectivity for campus and branch networks that prioritize simplicity over dynamic routing. Manufactured by Ubiquiti under part number US-24, this switch combines 24 × Gigabit Ethernet ports (10/100/1000 Mbps) with 2 × SFP uplink ports (1 Gbps) to create a 26-port infrastructure capable of 52 Gbps switching capacity and 38.69 Mpps forwarding rate. Network engineers and IT infrastructure teams select this platform for deployments requiring passive fanless operation, compact 1U rack-mount form factor, and unified management through the Ubiquiti UniFi Network Controller—available both locally and in the cloud.
Enterprise-class features include full VLAN support (802.1Q, up to 4094 VLAN IDs), Spanning Tree Protocol (STP, RSTP per 802.1D and 802.1w standards), and 802.3ad LACP link aggregation for redundancy and load balancing. Port mirroring and jumbo frame support (9216 bytes) enable monitoring and high-performance workloads. Operating from 100–240V AC at 50/60 Hz with maximum power consumption of just 13W, the US-24 integrates efficiently into power-constrained environments. The fanless passive cooling design ensures silent operation ideal for managed closets and small data centers. Contact Omnixon Global to discuss your network switching requirements and submit an RFQ for the UniFi Switch 24 (Gen 1).
Deployment Scenarios
- Campus building access layers with unified VLAN segmentation and cloud-based controller management
- Branch office core switching where passive cooling and low power consumption reduce operational overhead
- Network redundancy designs leveraging RSTP and LACP for automatic failover and port bonding
- Monitoring and traffic analysis implementations using port mirroring for packet capture and NetFlow inspection
- Rack-mounted infrastructure consolidation in 19-inch standard racks requiring compact 1U footprint
Technical Specifications
| Brand | Ubiquiti |
| Category | Network Switches |
| SKU | UBQ-US-24 |
| Part Number | US-24 |
| Condition | New |
| Interface | Ethernet / SFP / SFP+ |
| Speed | 1GbE |
| Product Line | UniFi Switch |
| RJ45 Ports | 24 × Gigabit Ethernet (10/100/1000 Mbps) |
| SFP Uplink Ports | 2 × SFP (1 Gbps) |
| Total Ports | 26 |
| Switching Capacity | 52 Gbps |
| Forwarding Rate | 38.69 Mpps |
| Layer | Layer 2 Managed |
| VLAN Support | 802.1Q, up to 4094 VLAN IDs |
| Spanning Tree | STP, RSTP (802.1D, 802.1w) |
| Link Aggregation | 802.3ad LACP |
| Port Mirroring | Supported |
| Jumbo Frames | 9216 bytes |
| Management | UniFi Network Controller (software-based, local or cloud) |
| Cooling | Fanless passive cooling |
| Form Factor | 1U Rack-mountable |
| Rack Width | 19-inch standard |
| Power Input | 100–240V AC, 50/60 Hz |
| Maximum Power Consumption | 13W |
| PoE | None |
Frequently Asked Questions about UniFi Switch 24 (Gen 1)
What does the UniFi Switch 24 (Gen 1) do?
The UniFi Switch 24 (Gen 1) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the UniFi Switch 24 (Gen 1)?
Key specifications for the UniFi Switch 24 (Gen 1): interface Ethernet / SFP / SFP+; 1 year support; new condition. Manufacturer part number US-24. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the UniFi Switch 24 (Gen 1) compatible with my infrastructure?
The UniFi Switch 24 (Gen 1) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
