Brand: TP-Link | Category: Network Switches
SKU: ES216G | Part #: ES216G | MPN: ES216G
Contact for Pricing — Request a Quote

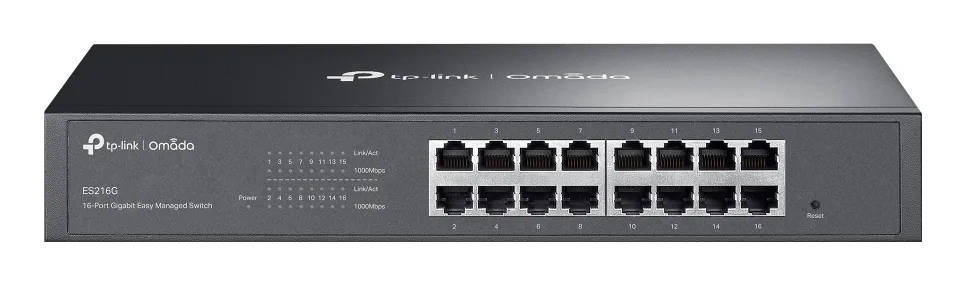

The TP-Link Omada ES216G is a 16-port easy managed Gigabit switch, offering 16 RJ-45 Gigabit Ethernet (10/100/1000) copper ports. It supports auto-negotiation and Auto MDI/MDI-X, and is powered through an AC-in jack. The fanless design suits installations where silent operation matters.
Management features include VLAN support for up to 32 VLANs, with MTU VLAN, port-based VLAN and tagged VLAN modes. The switch also provides link aggregation, port mirroring, flow control, fast leave and Zero Touch Provisioning (ZTP). Supported standards include IEEE 802.1Q, 802.1ab, 802.1p, 802.3ab, 802.3at, 802.3i and 802.3x. It has 64 MB of flash memory, upgradeable firmware and a rated MTBF of 2,131,140 hours.
The ES216G is suited to small and medium business networks, branch offices and departmental LANs that need basic traffic segmentation and monitoring across Gigabit copper connections.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | ES216G |
| Part Number | ES216G |
| Condition | New |
| Power connector | AC-in jack |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Number of VLANs | 32 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Port mirroring | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3at, IEEE 802.3i, IEEE 802.3x |
| Mean time between failures (MTBF) | 2131140 h |
| Fanless | Yes |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Packet buffer memory | 4 MB |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 23.8 Mpps |
| Switching capacity | 32 Gbit/s |
| Power over Ethernet (PoE) | No |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Unified static configuration | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
| Quality of Service (QoS) support | Yes |
| Switch layer | L2 |
| Switch type | Managed |
| Surge protection voltage | 6 kV |
| Surge protection | Yes |
The TP-Link Omada 16-PORT Easy Managed Gigabit Switch, GbE(16) is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 16-PORT Easy Managed Gigabit Switch, GbE(16): new condition; power connector AC-in jack; gigabit ethernet (copper) ports quantity 16; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 16; number of vlans 32; virtual lan features MTU VLAN, Port-based VLAN, Tagged VLAN. Manufacturer part number ES216G. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 16-PORT Easy Managed Gigabit Switch, GbE(16) interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
