Brand: TP-Link | Category: Network Switches
SKU: ES220GMP | Part #: ES220GMP | MPN: ES220GMP
Contact for Pricing — Request a Quote

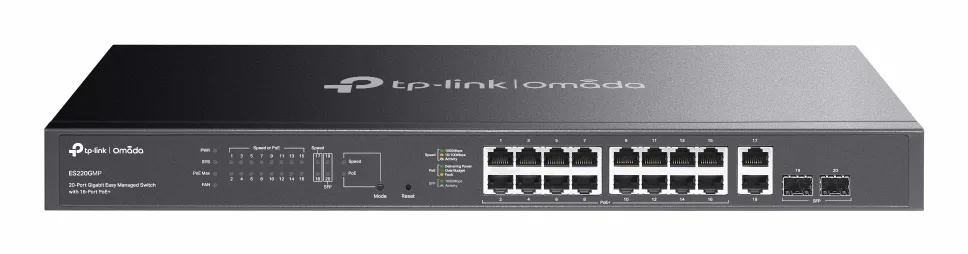

The TP-Link Omada ES220GMP is a 20-port Easy Managed Gigabit switch for network switching. It has 18 Gigabit Ethernet (10/100/1000) RJ-45 ports and 2 SFP module slots, and the product name lists 16 PoE+ ports with a 250W PoE budget. Power is supplied through an AC-in jack, and the switch does not support 10G.
Management features include support for up to 32 VLANs (MTU VLAN, port-based VLAN and tagged VLAN), link aggregation, port mirroring, flow control, fast leave, auto-negotiation, Auto MDI/MDI-X and Zero Touch Provisioning (ZTP). Firmware is upgradeable. Supported standards include IEEE 802.1Q, 802.1ab, 802.1p, 802.3ab, 802.3i, 802.3u, 802.3x and 802.3z. The rated MTBF is 310,550.7 hours, with a noise level of 41.5 dB.
The switch suits small and mid-sized business networks that need to connect and power PoE devices alongside wired Gigabit endpoints.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | ES220GMP |
| Part Number | ES220GMP |
| Condition | New |
| Power connector | AC-in jack |
| SFP module slots quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 18 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 18 |
| Number of VLANs | 32 |
| Virtual LAN features | MTU VLAN, Port-based VLAN, Tagged VLAN |
| VLAN support | Yes |
| Flow control support | Yes |
| Link aggregation | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Fast leave | Yes |
| Port mirroring | Yes |
| Zero Touch Provisioning (ZTP) | Yes |
| 10G support | No |
| Networking standards | IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Mean time between failures (MTBF) | 310550.7 h |
| Noise level | 41.5 dB |
| Firmware upgradeable | Yes |
| Flash memory | 64 MB |
| Packet buffer memory | 4 MB |
| Jumbo frames | 15000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 29.76 Mpps |
| Switching capacity | 40 Gbit/s |
| Total Power over Ethernet (PoE) budget | 250 W |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Power over Ethernet (PoE) type supported | PoE+ |
| Power over Ethernet (PoE) | Yes |
| Loop protection | Yes |
| Queue scheduling algorithms | Weighted Round Robin (WRR) |
| IGMP snooping | Yes |
| DHCP features | DHCP client |
| Unified static configuration | Yes |
| Web-based management | Yes |
| Cloud-managed | Yes |
The TP-Link Omada 20-PORT Easy Managed Gigabit Switch, POE+(16), SFP/RJ45(4), 250W is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Omada 20-PORT Easy Managed Gigabit Switch, POE+(16), SFP/RJ45(4), 250W: new condition; power connector AC-in jack; sfp module slots quantity 2; gigabit ethernet (copper) ports quantity 18; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 18; number of vlans 32. Manufacturer part number ES220GMP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link Omada 20-PORT Easy Managed Gigabit Switch, POE+(16), SFP/RJ45(4), 250W interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
