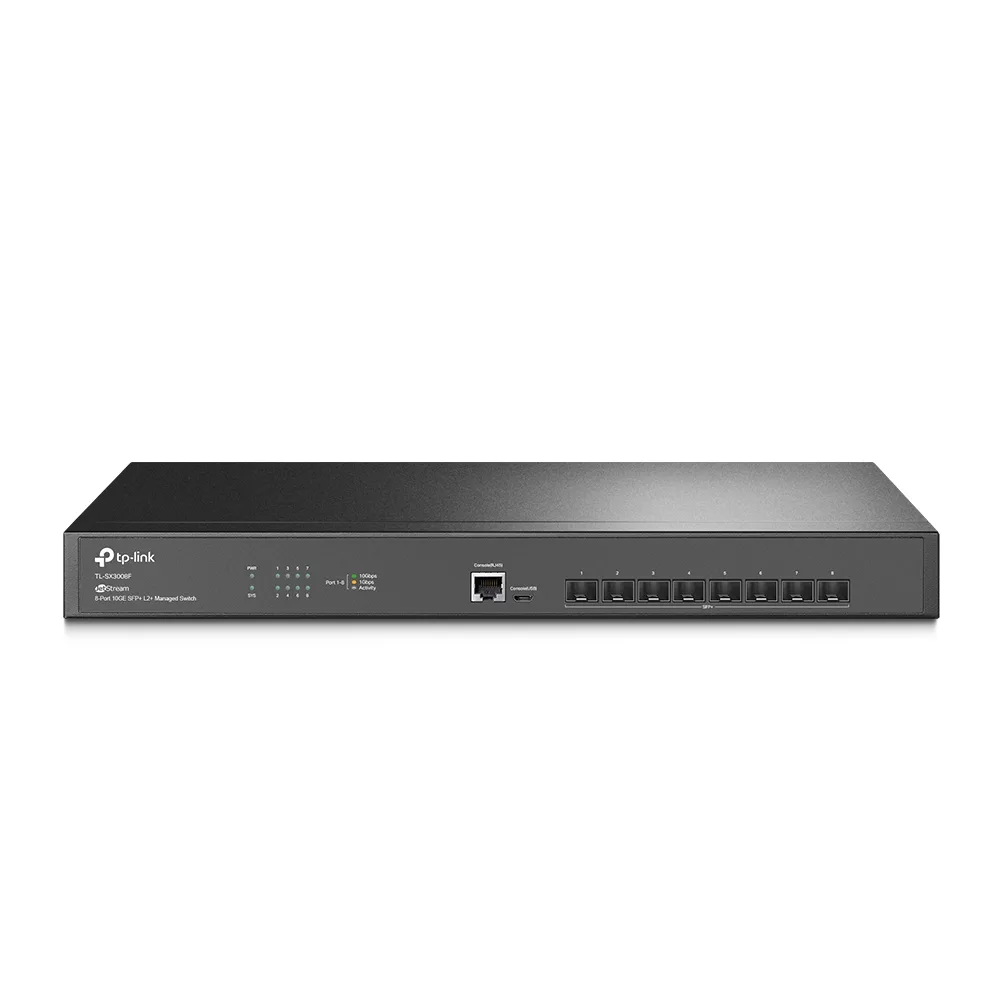

TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch
Brand: TP-Link | Category: Network Switches
SKU: TPLI-TLSX3008F | Part #: TL-SX3008F | MPN: TL-SX3008F
Contact for Pricing — Request a Quote
About the TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch
The TP-Link JetStream TL-SX3008F is a compact 1U managed switch featuring eight 10G SFP+ ports, providing a 160 Gbps non-blocking switching fabric in a half-width or standard 1U chassis. It is designed for server aggregation, high-speed inter-switch connectivity, and backbone applications where all ports must operate at 10 Gigabit speeds. Compatible with both 10GBase-SR/LR fiber and 10GBase-T copper SFP+ transceivers, it offers flexible connectivity options for both short-range data center runs and longer campus backbone links.
The switch's L2+ feature set includes static IPv4 routing, VLAN segmentation with 802.1Q support, LACP link aggregation, and STP/RSTP/MSTP loop prevention. While it does not offer the full dynamic routing protocol suite of the SG6428X, its static routing capability is sufficient for inter-VLAN routing between server subnets in small-to-medium data center environments. QoS with 8 queues per port and DSCP/802.1p remarking ensures that storage, backup, and production traffic can be prioritized appropriately.
The TL-SX3008F integrates with the Omada SDN controller for unified management, allowing data center infrastructure to be visible from the same management plane as the campus network edge. Its compact footprint and low power consumption make it attractive for edge data rooms, remote offices with server infrastructure, and as a cost-effective 10G aggregation switch preceding a higher-density core platform.
Ideal for
- Server rack 10G top-of-rack aggregation switch
- High-speed inter-switch 10G backbone link aggregation
- NAS and storage array 10G iSCSI connectivity
- Video production network 10G media asset transfer switch
- Small data center spine-leaf 10G underlay fabric
- Campus distribution to core 10G uplink aggregation
Technical specifications
| Manufacturer | TP-Link |
| Part Number | TL-SX3008F |
| Form Factor | 1U Rack-Mount |
| SFP+ Ports | 8× 10G SFP+ (compatible with 1G SFP) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.05 Mpps |
| MAC Address Table | 16K entries |
| Jumbo Frame | Up to 9216 bytes |
| Layer | L2+ |
| Routing | Static IPv4 routing |
| VLAN | 802.1Q, up to 4096 VLANs, Private VLAN, Voice VLAN |
| QoS | 8 queues/port, 802.1p, DSCP, WRR/SP scheduling |
| Link Aggregation | 802.3ad LACP, up to 4 groups |
| Spanning Tree | STP/RSTP/MSTP |
| Multicast | IGMP Snooping v1/v2/v3 |
| Access Control | ACL (L2–L4), Port Security, 802.1X |
| Management | Omada SDN, CLI (SSH/Telnet), Web GUI, SNMP v1/v2c/v3 |
| Power Input | 100–240V AC, 50/60Hz |
| Power Consumption | Max 28.6W |
| Fans | 1× smart cooling fan |
| Transceiver Support | 10GBase-SR, 10GBase-LR, 10GBase-T (SFP+), DAC cables |
| Dimensions | 220 × 100 × 44 mm (1U half-width) |
| Operating Temperature | 0°C to 45°C |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TPLI-TLSX3008F |
| Part Number | TL-SX3008F |
| Condition | New |
| Form Factor | 1U Rack-Mount |
| SFP+ Ports | 8× 10G SFP+ (compatible with 1G SFP) |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.05 Mpps |
| MAC Address Table | 16K entries |
| Jumbo Frame | Up to 9216 bytes |
| Layer | L2+ |
| Routing | Static IPv4 routing |
| VLAN | 802.1Q, up to 4096 VLANs, Private VLAN, Voice VLAN |
| QoS | 8 queues/port, 802.1p, DSCP, WRR/SP scheduling |
| Link Aggregation | 802.3ad LACP, up to 4 groups |
| Spanning Tree | STP/RSTP/MSTP |
| Multicast | IGMP Snooping v1/v2/v3 |
| Access Control | ACL (L2–L4), Port Security, 802.1X |
| Management | Omada SDN, CLI (SSH/Telnet), Web GUI, SNMP v1/v2c/v3 |
| Power Input | 100–240V AC, 50/60Hz |
| Power Consumption | Max 28.6W |
| Fans | 1× smart cooling fan |
| Transceiver Support | 10GBase-SR, 10GBase-LR, 10GBase-T (SFP+), DAC cables |
| Dimensions | 220 × 100 × 44 mm (1U half-width) |
| Operating Temperature | 0°C to 45°C |
Frequently Asked Questions about TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch
What does the TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch do?
The TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Juniper/Arista environments.
What are the headline specs of the TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch?
Key specifications for the TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch: new condition; manufacturer TP-Link; part number TL-SX3008F; form factor 1U Rack-Mount; sfp+ ports 8× 10G SFP+ (compatible with 1G SFP); switching capacity 160 Gbps; forwarding rate 119.05 Mpps. Manufacturer part number TL-SX3008F. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch compatible with my infrastructure?
The TP-Link JetStream TL-SX3008F 8-Port 10G SFP+ L2+ Managed Switch interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
