Brand: TP-Link | Category: Network Adapters & NICs
SKU: ARCHER TX20E | Part #: ARCHER TX20E | MPN: ARCHER TX20E
Contact for Pricing — Request a Quote
Easily Get Start with Wi-Fi 6
AX1800 Wi-Fi 6 Bluetooth 5.2 PCIe Adapter
Cutting-Edge Wi-Fi 6
The latest Wi-Fi technology makes annoying lag, endless loading, and dead spots a thing of the past. Enjoy the future of faster network loads and more connections.
More Devices, Less Congestion
OFDMA creates separate channel segments for devices to communicate while MU-MIMO allows multiple clients to simultaneously receive data. Combining these technologies guarantees your PC gets strong, efficient, and lag-free wireless connectivity at the same time all of your other devices are communicating.

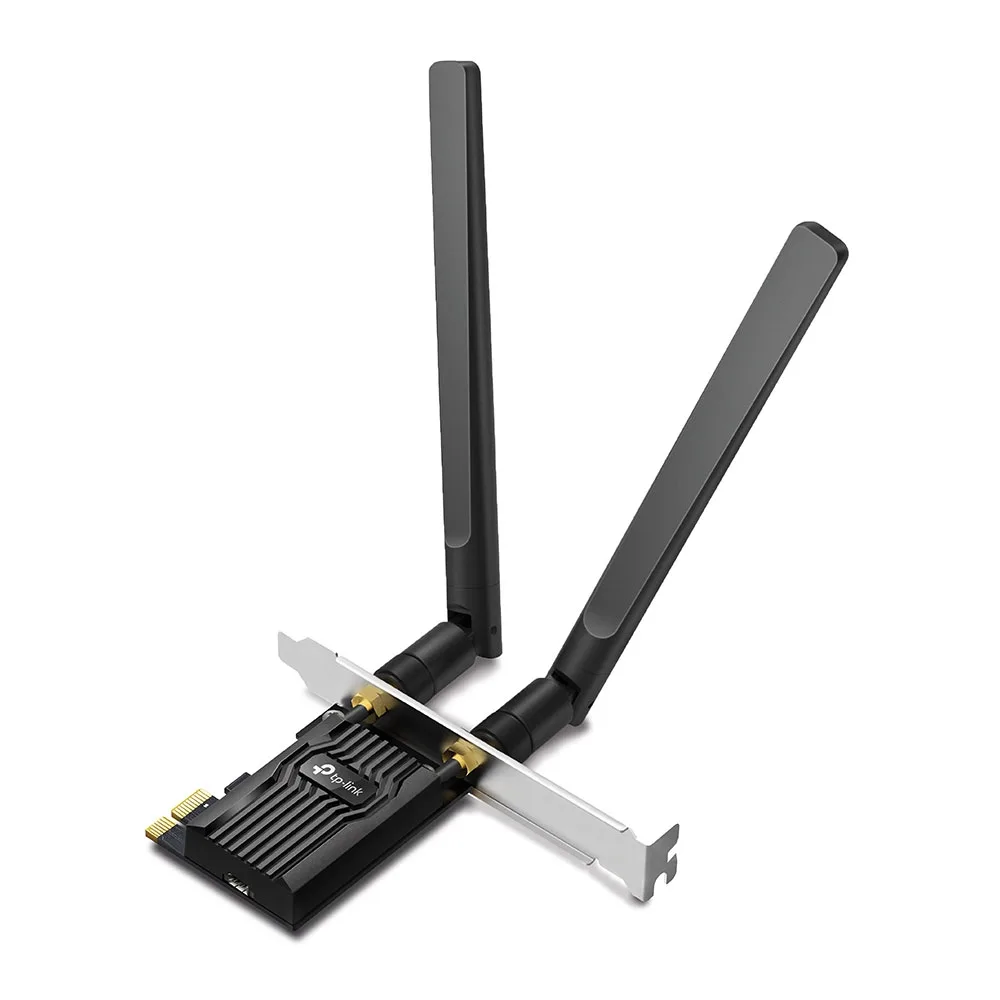

High-Gain Antennas for Broader Coverage
Two powerful signal-boosting high-gain antennas greatly extend existing Wi-Fi coverage, offering a fast, smooth online experience from farther away.
Bluetooth 5.2 Compatible
The latest Bluetooth 5.2 Technology, achieves speeds 2× faster and coverage 4× broader than Bluetooth 4.2, to perfectly coordinate with your game controllers, headphones, keyboards, and other Bluetooth devices.
Cutting-Edge Security
WPA3, the latest network security standard, provides more secure and individualized encryption in personal password safety, protects your network from wireless hacking and ensure your wireless connection is completely secure while surfing the web and shopping online.
| Brand | TP-Link |
| Category | Network Adapters & NICs |
| SKU | ARCHER TX20E |
| Part Number | ARCHER TX20E |
| Condition | New |
| Interface | WLAN / Bluetooth |
| Host interface | PCI Express |
| Connectivity technology | Wireless |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3 |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, CCK, DBPSK, DQPSK, OFDM |
| WLAN data transfer rates supported | 11,54,300,574,867,1200 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Maximum data transfer rate | 1800 Mbit/s |
| Compliance certificates | CE, Federal Communications Commission (FCC), RoHS |
| Operating modes | Infrastructure mode |
| Plug and Play | Yes |
| Transmitting power (FCC) | 27 dBm |
| Transmitting power (CE) | 23 dBm |
| Antenna | Yes |
| Antenna design | External |
| Internal | Yes |
| Product colour | Black |
| Component for | PC/Server |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Windows operating systems supported | Windows 10 Education x64, Windows 10 Enterprise x64, Windows 10 Home x64, Windows 10 Pro x64, Windows 10 x64, Windows 11 Enterprise x64, Windows 11 x64 |
| Height | 20.9 mm |
| Depth | 78.5 mm |
| Width | 120.8 mm |
| Quick installation guide | Yes |
| Resource CD | Yes |
| Bluetooth header cable | Yes |
| Mounting brackets included | Yes |
The TP-Link Archer AX1800 Bluetooth 5.2 WI-FI 6 Dual-Band PCIe Adapter is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link Archer AX1800 Bluetooth 5.2 WI-FI 6 Dual-Band PCIe Adapter: new condition; interface WLAN / Bluetooth; host interface PCI Express; connectivity technology Wireless; bluetooth version 5.2; bluetooth Yes; security algorithms 64-bit WEP, 128-bit WEP, 802.1x RADIUS, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3. Manufacturer part number ARCHER TX20E. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
