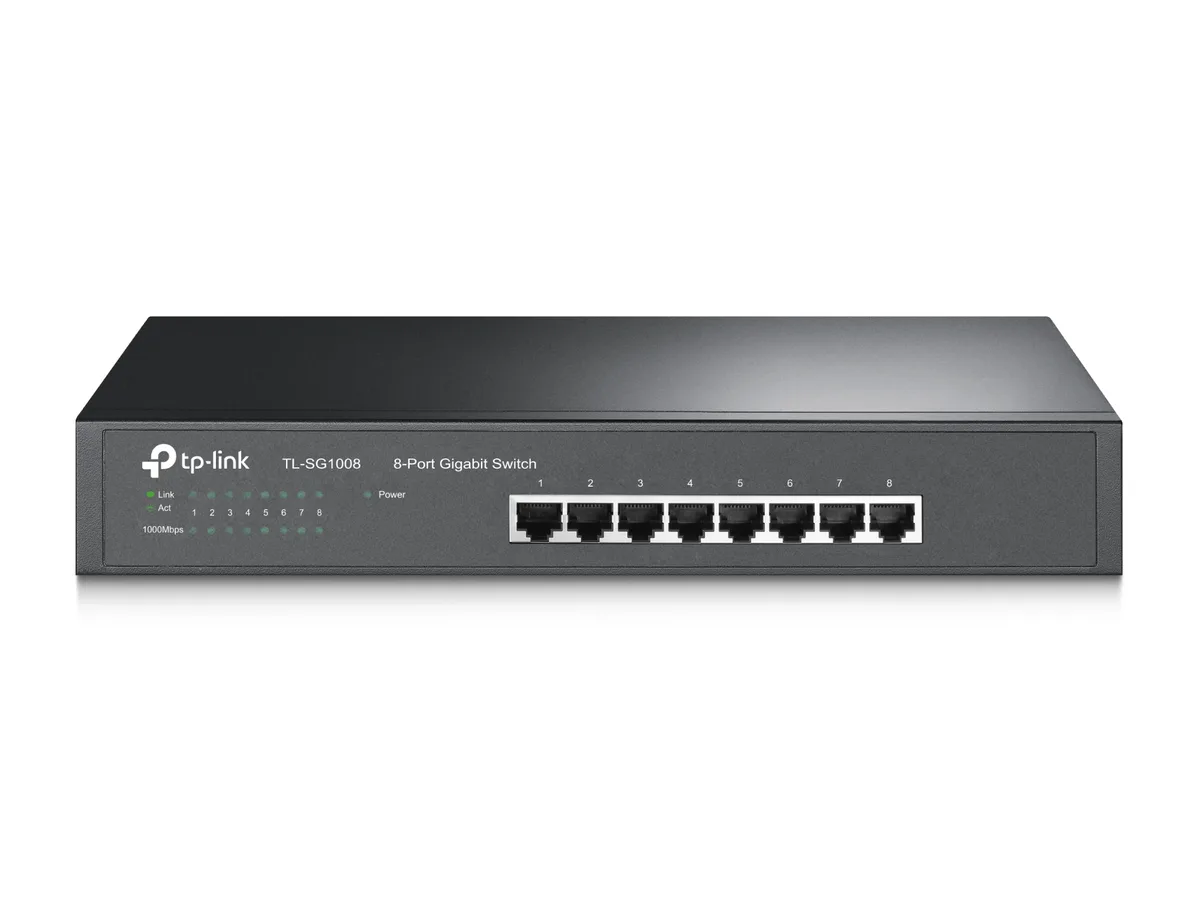

TP-LINK 8-PORT UNMANAGED GIGABIT DESKTOP/RACKMOUNT SWITCH, 13" STEEL CASE, 5YR

TP-LINK 8-PORT UNMANAGED GIGABIT DESKTOP/RACKMOUNT SWITCH, 13" STEEL CASE, 5YR

Brand: TP-Link | Category: Network Switches

SKU: TL-SG1008 | Part #: TL-SG1008 | MPN: TL-SG1008

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-LINK 8-PORT UNMANAGED GIGABIT DESKTOP/RACKMOUNT SWITCH, 13" STEEL CASE, 5YR

What This Product Does

The TL-SG1008 8-Port Gigabit desktop/rack-mount switch provides an easy way to make the transition to Gigabit Ethernet. All 8 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1008 can save the power consumption, making it an eco-friendly solution for your business network.

TP-Link Green Technology

This new generation The 8-Port Gigabit Desktop/Rackmount Switch TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

High Performance

The TL-SG1008 features non-blocking wire-speed architecture with a 16Gbps switching capacity for maximum data throughput. An 4K MAC address table provides scalability for even the largest networks. It also supports 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission.

Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100 or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Compact size shell make it ideal for desktops with limited space while it is also rackmountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis. TL-SG1008 features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.

Technical Specifications

BrandTP-Link
CategoryNetwork Switches
SKUTL-SG1008
Part NumberTL-SG1008
ConditionNew
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity8
Flow control supportYes
Auto MDI/MDI-XYes
Full duplexYes
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
10G supportNo
Networking standardsIEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x
Jumbo frames16000
Jumbo frames supportYes
Store-and-forwardYes
MAC address table4000 entries
Switching capacity16 Gbit/s
Power over Ethernet (PoE)No
Supported network protocolsCSMA/CD, TCP/IP
Switch typeUnmanaged
Power consumption (typical)4.3 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply includedYes
LED indicatorsYes
Product colourBlack
Rack mountingYes
Heat dissipation14.67 BTU/h
Storage relative humidity (H-H)5 - 90%
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Height44 mm
Depth180 mm
Width294 mm
Quick start guideYes
Cables includedAC
