Brand: TP-Link | Category: Network Switches
SKU: TL-SG1016 | Part #: TL-SG1016 | MPN: TL-SG1016
Contact for Pricing — Request a Quote
What This Product Does

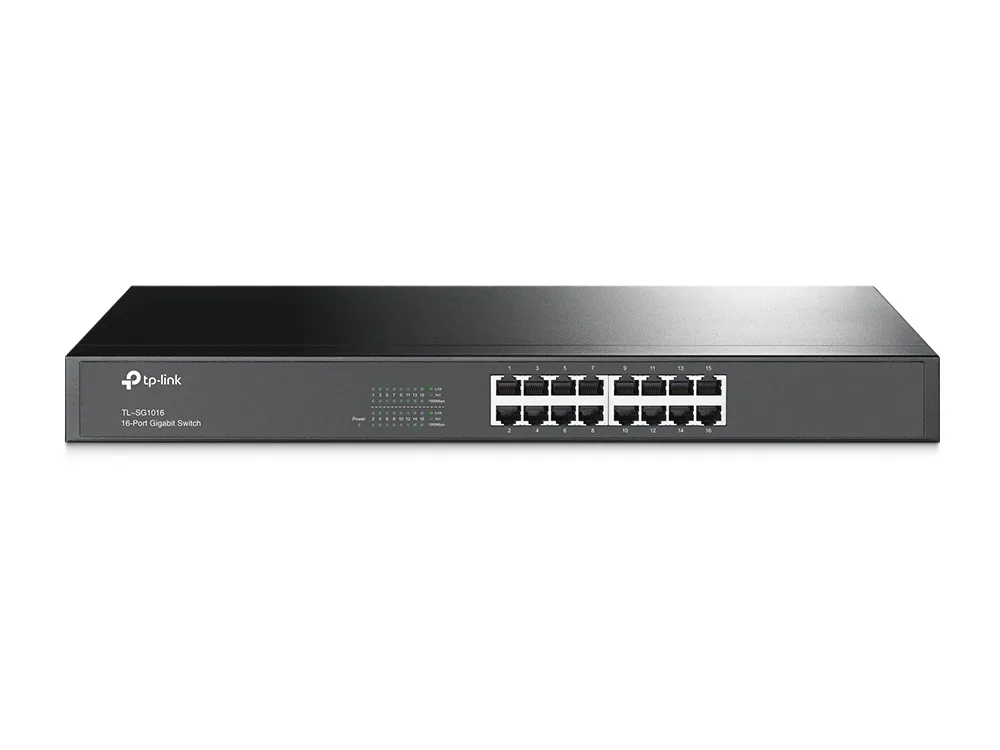

The TL-SG1016 Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 16 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1016 can save power consumption, making it an eco-friendly solution for your business network.
TP-Link Green Technology
This new generation TL-SG1016 Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, most packaging material can be recycled.
High Performance
All 16 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1016 forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make The TL-SG1016 work reliably. It’s a perfect choice to update your network to Gigabit while protecting your previous investment properly.
Easy to Use
The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG1016 |
| Part Number | TL-SG1016 |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| VLAN support | Yes |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Head-of-line (HOL) blocking | Yes |
| Ethernet LAN data rates | 10,100,480,800,1000 Mbit/s |
| Auto-negotiation | Yes |
| Full duplex | Yes |
| IP routing | Yes |
| Policy-based routing | Yes |
| Port mirroring | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Networking standards | IEEE 802.1p, IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Fanless | Yes |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Forwarding rate | 23.8 Mpps |
| Switching capacity | 32 Gbit/s |
| Power over Ethernet (PoE) | No |
| Security algorithms | 802.1x RADIUS |
| Password protection | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| DHCP features | DHCP client, DHCP server, DHCP snooping |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Power consumption (max) | 10.44 W |
| Power consumption (typical) | 9.26 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Heat dissipation | 35.6 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
The TP-Link 16-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 16-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case: new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 16; vlan support Yes; flow control support Yes; auto mdi/mdi-x Yes; head-of-line (hol) blocking Yes. Manufacturer part number TL-SG1016. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 16-PORT Unmanaged Gigabit Rack-Mount Switch, 19" Steel Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
