Brand: TP-Link | Category: Network Switches
SKU: TL-SG1006PP | Part #: TL-SG1006PP | MPN: TL-SG1006PP
Contact for Pricing — Request a Quote

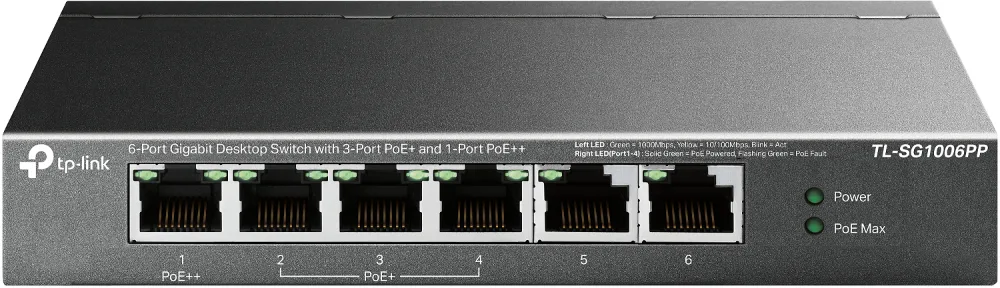

The TP-Link TL-SG1006PP is a 6-port unmanaged Gigabit switch in a metal case. It provides six RJ-45 ports supporting 10/100/1000 Mbit/s with auto-negotiation and Auto MDI/MDI-X. Four ports deliver Power over Ethernet: three PoE+ ports and one PoE++ port, sharing a total PoE budget of 64 W. Supported standards include IEEE 802.3af, 802.3at and 802.3bt, along with 802.1p, 802.3i, 802.3u and 802.3x.
The switch uses store-and-forward switching with 12 Gbit/s switching capacity, an 8.928 Mpps forwarding rate and a 4000-entry MAC address table with auto-learning and auto-aging. Flow control is supported, and the fanless design runs without fan noise. It works with Cat3 through Cat6 cabling.
As an unmanaged PoE switch, it suits small networks that need to connect and power devices such as IP cameras, wireless access points or VoIP phones without separate power supplies.
Send the part number through our RFQ form and our team will reply within 48 hours.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG1006PP |
| Part Number | TL-SG1006PP |
| Condition | New |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 6 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x |
| Fanless | Yes |
| Store-and-forward | Yes |
| MAC address table | 4000 entries |
| Forwarding rate | 8.928 Mpps |
| Switching capacity | 12 Gbit/s |
| Total Power over Ethernet (PoE) budget | 64 W |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet (PoE) | Yes |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Power consumption (max) | 71.46 W |
| Power consumption (typical) | 4.75 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power supply included | Yes |
| Power source | DC/PoE |
| LED indicators | Yes |
| Product colour | Grey |
| Stackable | Yes |
| Rack mounting | Yes |
| Heat dissipation | 16.2 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 25 mm |
| Depth | 101 mm |
The TP-Link 6-PORT Unmanaged Gigabit Switch, POE+(3), POE++(1), 64W, Metal Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 6-PORT Unmanaged Gigabit Switch, POE+(3), POE++(1), 64W, Metal Case: new condition; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 6; flow control support Yes; auto mdi/mdi-x Yes; ethernet lan data rates 10,100,1000 Mbit/s; auto-negotiation Yes. Manufacturer part number TL-SG1006PP. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 6-PORT Unmanaged Gigabit Switch, POE+(3), POE++(1), 64W, Metal Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
