Brand: TP-Link | Category: Network Switches
SKU: TL-SF1024 | Part #: TL-SF1024 | MPN: TL-SF1024
Contact for Pricing — Request a Quote
What This Product Does

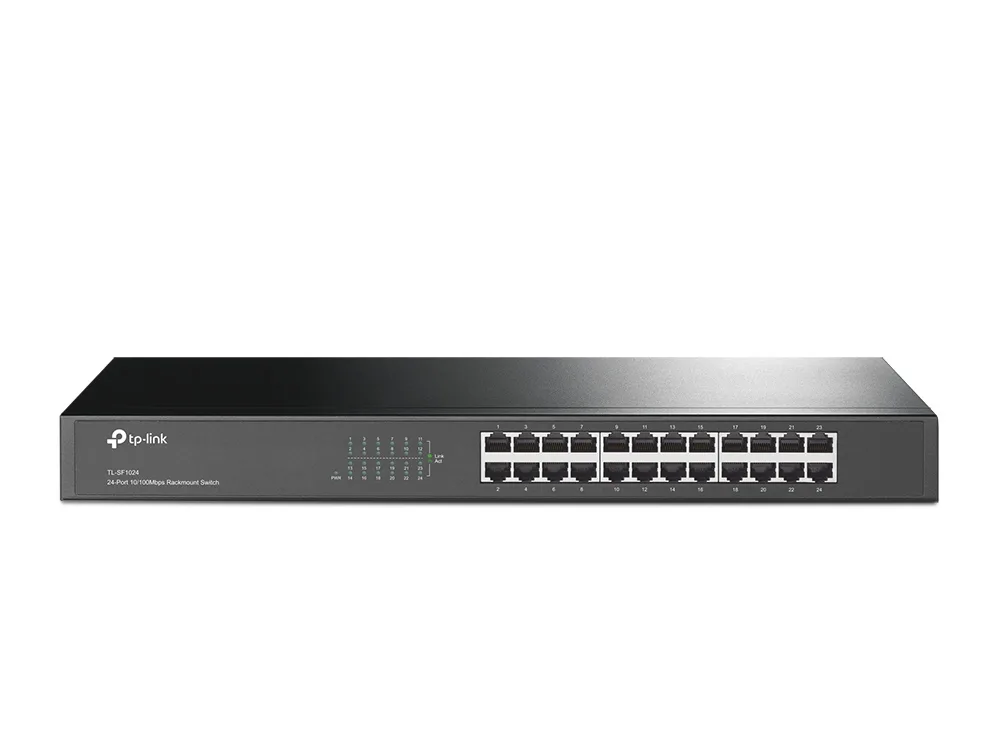

The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SF1024 |
| Part Number | TL-SF1024 |
| Condition | New |
| Power connector | DC-in jack |
| Fast Ethernet (copper) ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Routing entries | 1 |
| Full duplex | Yes |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e |
| 10G support | No |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Switching capacity | 4.8 Gbit/s |
| Power over Ethernet (PoE) | No |
| MAC address filtering | Yes |
| Switch type | Unmanaged |
| Power consumption (typical) | 3.53 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| LED indicators | Activity, Link |
| Product colour | Black |
| Stackable | No |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 44 mm |
| Depth | 180 mm |
| Width | 440 mm |
| Certification | FCC, CE, RoHS |
| Quick start guide | Yes |
The TP-Link 24-PORT Unmanaged Rack-Mount Switch, 10/100(24), 19" Steel Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 24-PORT Unmanaged Rack-Mount Switch, 10/100(24), 19" Steel Case: new condition; power connector DC-in jack; fast ethernet (copper) ports quantity 24; basic switching rj-45 ethernet ports type Fast Ethernet (10/100); basic switching rj-45 ethernet ports quantity 24; flow control support Yes; auto mdi/mdi-x Yes. Manufacturer part number TL-SF1024. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 24-PORT Unmanaged Rack-Mount Switch, 10/100(24), 19" Steel Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
