Brand: TP-Link | Category: Network Switches
SKU: TL-SF1048 | Part #: TL-SF1048 | MPN: TL-SF1048
Contact for Pricing — Request a Quote

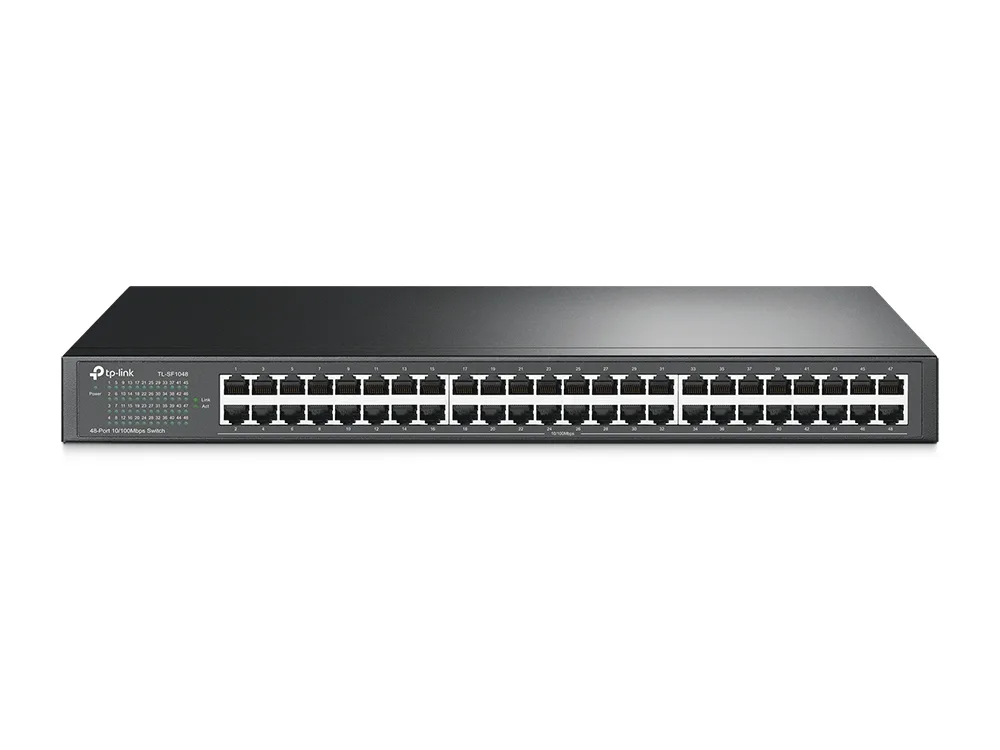

48-Port 10/100Mbps Rackmount Switch
What This Product Does
The TL-SF1048 10/100Mbps Switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. All 48 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-eff cient technology, TL-SF1048 can save up to 50%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation TL-SF1048 10/100Mbps Switch features the latest innovative energy-effcient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU’S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
Featuring non-blocking switching architecture，TL-SF1048 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1048 work reliably.
Easy to Use
The auto features of this Fast Ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100Mbps) and intelligently adjusts for compatibility and optimal performance.
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SF1048 |
| Part Number | TL-SF1048 |
| Condition | New |
| Power connector | DC-in jack |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Flow control support | Yes |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Jumbo frames | 10000 |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| MAC address table | 8000 entries |
| Throughput | 7.14 Mpps |
| Switching capacity | 96 Gbit/s |
| Switch type | Unmanaged |
| Power consumption (typical) | 9.9 W |
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Power supply included | Yes |
| LED indicators | Yes |
| Product colour | Black |
| Form factor | 1U |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Height | 44 mm |
| Depth | 220 mm |
| Width | 440 mm |
| Rack mount kit | Yes |
| Quick start guide | Yes |
| Cables included | AC |
The TP-Link 48-PORT Unmanaged Switch, 10/100(48), 19" Steel Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 48-PORT Unmanaged Switch, 10/100(48), 19" Steel Case: new condition; power connector DC-in jack; basic switching rj-45 ethernet ports type Fast Ethernet (10/100); basic switching rj-45 ethernet ports quantity 48; flow control support Yes; auto mdi/mdi-x Yes; auto-negotiation Yes. Manufacturer part number TL-SF1048. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 48-PORT Unmanaged Switch, 10/100(48), 19" Steel Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
