Brand: TP-Link | Category: Network Switches
SKU: TL-SG1210P | Part #: TL-SG1210P | MPN: TL-SG1210P
Contact for Pricing — Request a Quote

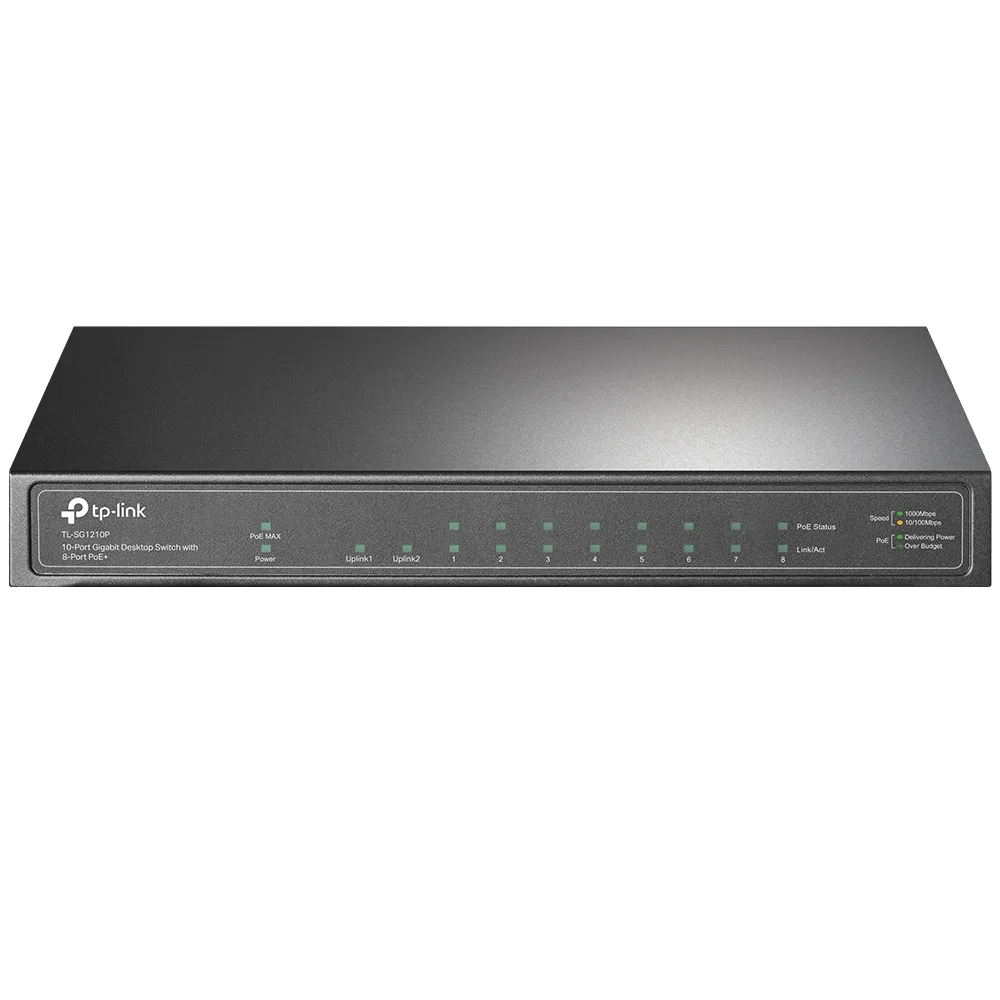

TP-LINK 10-Port Unmanaged Gigabit Desktop Switch with PoE+ and SFP is a TP-Link network switch built for office environments requiring compact, zero-configuration PoE distribution with fiber uplink capability. 63W PoE budget supports multiple IP cameras, wireless access points, or VoIP endpoints from a single desktop footprint.
Key Features:
Ideal for:
| Brand | TP-Link |
| Category | Network Switches |
| SKU | TL-SG1210P |
| Part Number | TL-SG1210P |
| Condition | New |
| SFP module slots quantity | 1 |
| Gigabit Ethernet (copper) ports quantity | 9 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Basic switching RJ-45 Ethernet ports quantity | 9 |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| MAC address auto-learning supported | Yes |
| MAC address auto-aging supported | Yes |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| 10G support | No |
| Networking standards | IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Fanless | Yes |
| Store-and-forward | Yes |
| MAC address table | 4000 entries |
| Switching capacity | 20 Gbit/s |
| Total Power over Ethernet (PoE) budget | 63 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| IGMP snooping | Yes |
| Quality of Service (QoS) support | Yes |
| Switch type | Unmanaged |
| Power consumption (max) | 78.13 W |
| Power consumption (typical) | 7.11 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power supply included | No |
| Wall mountable | Yes |
| LED indicators | Yes |
| Housing material | Metal |
| Product colour | Grey |
| Heat dissipation | 266.42 BTU/h |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Fiber type | Single-mode |
| Fiber ethernet cabling technology | 1000BASE-X |
| Height | 26 mm |
| Depth | 126 mm |
| Width | 209 mm |
The TP-Link 10-PORT Unmanaged Gigabit Desktop Switch, POE+(8), SFP (1), 63W, Metal Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.
Key specifications for the TP-Link 10-PORT Unmanaged Gigabit Desktop Switch, POE+(8), SFP (1), 63W, Metal Case: new condition; sfp module slots quantity 1; gigabit ethernet (copper) ports quantity 9; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 9; auto mdi/mdi-x Yes; auto-negotiation Yes. Manufacturer part number TL-SG1210P. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
The TP-Link 10-PORT Unmanaged Gigabit Desktop Switch, POE+(8), SFP (1), 63W, Metal Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
