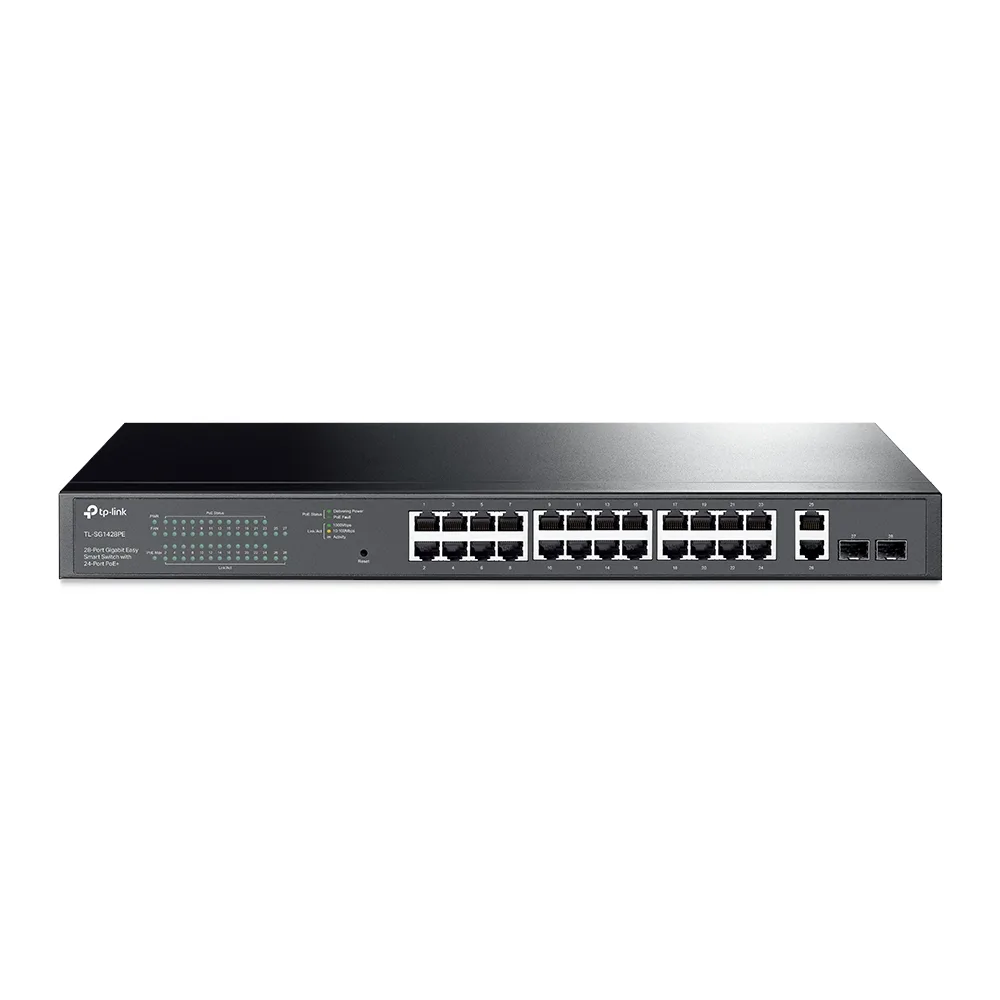

TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case

TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case

Brand: TP-Link | Category: Network Switches

SKU: TL-SG1428PE | Part #: TL-SG1428PE | MPN: TL-SG1428PE

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case

TP-LINK 28-Port Easy Smart Gigabit Switch with PoE+ is a TP-Link network switch built for large enterprise deployments requiring maximum PoE port density combined with centralized network intelligence. 24 PoE+ ports enable simultaneous powering of enterprise-scale IP camera arrays, wireless access point networks, and distributed IoT infrastructure with unified management oversight.

Key Features:

  • 28 ports: 24 Gigabit PoE+ (250W total) + 4 Gigabit uplink
  • 2 SFP fiber ports for dual-redundant backbone connectivity
  • Easy Smart management — VLAN, QoS, port mirroring, SNMP
  • Metal case designed for rack or stacked deployment

Ideal for:

  • Enterprise-wide IP surveillance networks (20+ camera deployments)
  • Large office campuses with distributed wireless AP infrastructure
  • Enterprise IoT and smart building networks requiring centralized control

Technical Specifications

BrandTP-Link
CategoryNetwork Switches
SKUTL-SG1428PE
Part NumberTL-SG1428PE
ConditionNew
SFP module slots quantity2
Gigabit Ethernet (copper) ports quantity26
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity26
Number of VLANs32
Virtual LAN featuresPort-based VLAN, Tagged VLAN
VLAN supportYes
Flow control supportYes
Link aggregationYes
Broadcast storm controlYes
Rate limitingYes
Auto MDI/MDI-XYes
Auto-negotiationYes
Port mirroringYes
Cable types supportedCat3, Cat4, Cat5, Cat5e, Cat6
Copper ethernet cabling technology10BASE-T, 100BASE-TX, 1000BASE-T
10G supportNo
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x
Packet buffer memory4.1 MB
Jumbo frames10000
Jumbo frames supportYes
Number of queues4
Store-and-forwardYes
MAC address table8000 entries
Forwarding rate41.7 Mpps
Switching capacity56 Gbit/s
Total Power over Ethernet (PoE) budget250 W
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity24
Power over Ethernet (PoE)Yes
Security algorithmsSNMP, SNMPv2, SNMPv3
IGMP snoopingYes
Web-based managementYes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
Power consumption (max)1039.03 W
AC input frequency50 - 60 Hz
AC input voltage100 - 240 V
Power supply includedYes

Frequently Asked Questions about TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case

What does the TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case do?

The TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case is enterprise networking hardware for data-center, campus, and branch deployments. Common roles include core/distribution switching, server uplinks, top-of-rack fabric, and edge connectivity in mixed Cisco/Arista environments.

What are the headline specs of the TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case?

Key specifications for the TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case: new condition; sfp module slots quantity 2; gigabit ethernet (copper) ports quantity 26; basic switching rj-45 ethernet ports type Gigabit Ethernet (10/100/1000); basic switching rj-45 ethernet ports quantity 26; number of vlans 32; virtual lan features Port-based VLAN, Tagged VLAN. Manufacturer part number TL-SG1428PE. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.

Is the TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case compatible with my infrastructure?

The TP-Link 28-PORT Easy Smart Gigabit Switch, POE+(24), SFP(2), 250W, Metal Case interoperates with standard switching protocols (LACP, MLAG/VPC, 802.1Q, OSPF/BGP). For specific cross-vendor scenarios — Cisco-to-Arista MLAG peering, fabric integration with Cumulus/SONiC, or migration from legacy Catalyst — our network engineers map a compatibility plan as part of the RFQ.
