TP-LINK 10-PORT EASY SMART GIGABIT SWITCH, POE+(8), SFP (1) 123W, METAL CASE, 5YR

TP-LINK 10-PORT EASY SMART GIGABIT SWITCH, POE+(8), SFP (1) 123W, METAL CASE, 5YR

Brand: TP-Link | Category: Network Switches

SKU: TL-SG1210MPE | Part #: TL-SG1210MPE | MPN: TL-SG1210MPE

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the TP-LINK 10-PORT EASY SMART GIGABIT SWITCH, POE+(8), SFP (1) 123W, METAL CASE, 5YR

What This Product Does

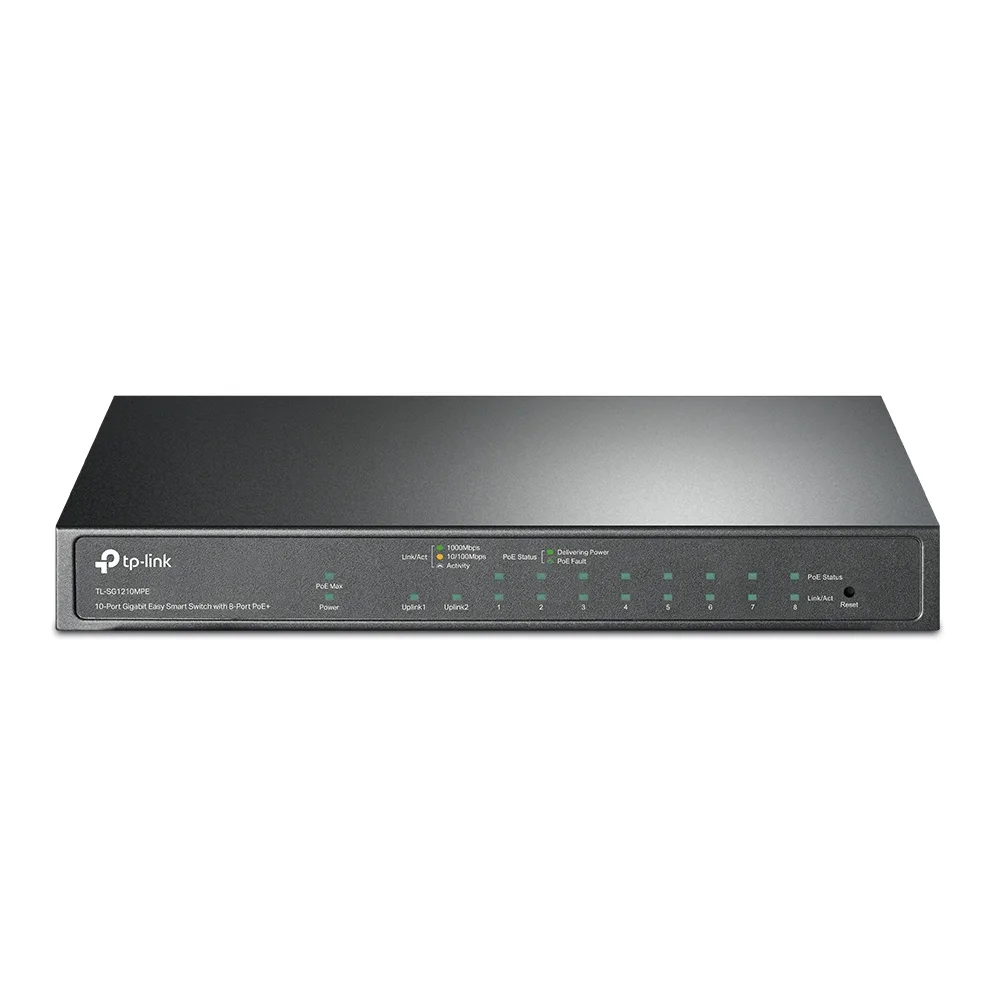

TP-Link TL-SG1210MPE is an easy smart switch with 9× gigabit RJ45 ports and 1× gigabit combo SFP/RJ45 port that requires no configuration. With 8× PoE (Power over Ethernet) ports, it can automatically detect and supply power with all IEEE 802.3af/at compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.

Professional 10-Port Switch with 8-Port PoE+ (123 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 123 W PoE power budget* for the 8× PoE+ ports opens up a wide range of applications, such as surveillance for offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and more.

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without the need for manual monitoring and restart.

Intelligent Power Management

When total power consumption exceeds 123 W, the intelligent power management will cut the lower priority port power. This ensures the high-priority port’s power supply and protects the device from power overload. It also automatically detects and provides the required power for your PoE devices while protecting your PoE and non-PoE equipment from being damaged.

Durable Metal Casing

The interior components of TL-SG1210MPE are protected by high-quality metal casing to ensure a long product life. Its fanless design delivers zero added noise in its locations. Having passed an array of stringent reliability tests, TL-SG1210MPE delivers switching performance you can depend on.

Technical Specifications

BrandTP-Link
CategoryNetwork Switches
SKUTL-SG1210MPE
Part NumberTL-SG1210MPE
ConditionNew
Power connectorDC-in jack
Fiber optic connectorSFP
Fiber ports quantity1
Basic switching RJ-45 Ethernet ports typeGigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity9
Broadcast storm controlYes
Rate limitingYes
Port mirroringYes
10G supportNo
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Jumbo frames16000
Jumbo frames supportYes
Store-and-forwardYes
MAC address table4000 entries
Forwarding rate14.88 Mpps
Switching capacity20 Gbit/s
Power over Ethernet (PoE) power per port30 W
Power over Ethernet plus (PoE+) ports quantity8
Power over Ethernet (PoE)Yes
Loop protectionYes
IGMP snoopingYes
Quality of Service (QoS) supportYes
Switch layerL2
Switch typeManaged
Input current2.43 A
DC input voltage53.5 V
Power supply includedYes
LED indicatorsYes
Product colourBlack
Rack mountingNo
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)10 - 90%
Storage temperature (T-T)-40 - 70 °C
Operating temperature (T-T)0 - 40 °C
Height26 mm
Depth126 mm
Width209 mm
ManualYes
