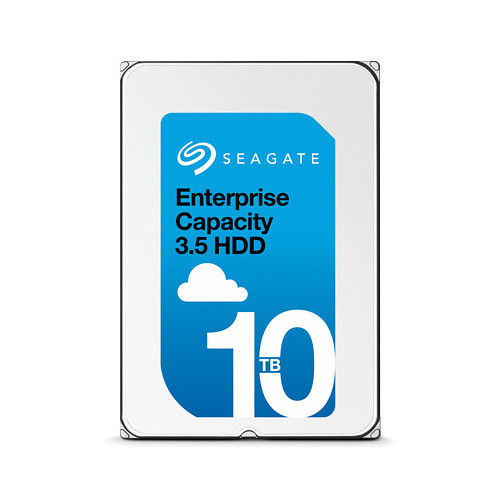

Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD
Brand: Seagate | Category: Enterprise HDDs
SKU: SEA-ST10000NM0016 | Part #: ST10000NM0016 | MPN: ST10000NM0016
Contact for Pricing — Request a Quote
About the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD
Designed for 24×7 nearline storage, sustained sequential workloads, and cold archive deployment, the Seagate ST10000NM0016 delivers enterprise-class reliability with a Mean Time Between Failures (MTBF) of 2,000,000 hours. This 10TB capacity drive is engineered for data centre environments where uptime and consistent performance are non-negotiable. IT procurement teams and storage architects demanding high-capacity, dependable bulk storage will find this Seagate enterprise HDD meets demanding workload requirements across mission-critical infrastructure.
The ST10000NM0016 combines helium-sealed enclosure technology with Perpendicular Magnetic Recording (PMR) to achieve an areal density of up to 1,030Gb per square inch, maximizing storage density without sacrificing reliability. With a sustained annualized workload rating of 550TB/year and an annualized failure rate of 0.73%, this drive is built to perform in large-scale storage arrays and server environments. The SATA III 6Gb/s interface ensures compatibility with standard enterprise storage infrastructure, while the 256MB cache buffer and up to 254MB/s sustained transfer rate optimise throughput for sequential access patterns. Operating temperatures from 5°C to 60°C provide deployment flexibility across diverse data centre conditions.
Key Specifications
- Manufacturer: Seagate
- Capacity: 10TB
- Form Factor: 3.5-inch
- Interface: SATA III 6Gb/s
- Rotational Speed: 7,200 RPM
- Sustained Transfer Rate: Up to 254MB/s
- Cache Buffer: 256MB
- MTBF: 2,000,000 hours
- Annualized Failure Rate: 0.73%
- Workload Rating: 550TB/year
Contact Omnixon Global to discuss your enterprise storage requirements and request a quote for the Seagate ST10000NM0016.
Technical Specifications
| Brand | Seagate |
| Category | Enterprise HDDs |
| SKU | SEA-ST10000NM0016 |
| Part Number | ST10000NM0016 |
| Condition | New |
| Capacity | 10TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Speed | 7,200 RPM |
| Manufacturer Part Number | ST10000NM0016 |
| Series | Seagate Enterprise Capacity 3.5 HDD |
| Form Factor | 3.5-inch |
| Capacity | 10TB |
| Interface | SATA III 6Gb/s |
| Rotational Speed | 7,200 RPM |
| Cache Buffer | 256MB |
| Areal Density | Up to 1,030Gb per square inch |
| Platter Technology | Helium-sealed enclosure, PMR (Perpendicular Magnetic Recording) |
| Sustained Transfer Rate (OD) | Up to 254MB/s |
| Workload Rate (Annualized) | 550TB/year |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
| Annualized Failure Rate (AFR) | 0.73% |
| Load/Unload Cycles | 600,000 |
| Operating Temperature | 5°C to 60°C |
| Power – Operating (Read/Write) | 7.8W typical |
| Power – Idle | 5.0W typical |
| Dimensions (H x W x D) | 26.11mm x 101.85mm x 146.99mm |
| Weight | 650g |
| Vibration Compensation | Rotational Vibration (RV) sensors |
| Compatible Operating Systems | Operating system independent; compatible with all major enterprise OS and HBA environments |
Frequently Asked Questions about Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD
What does the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD do?
At 10TB, the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA 6Gb/s interface is supported by major server platforms.
What are the headline specs of the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD?
Key specifications for the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD: capacity 10TB; form factor 3.5-inch; interface SATA 6Gb/s; new condition; capacity 10TB; form factor 3.5-inch; interface SATA 6Gb/s; drive class Enterprise HDD; typical spindle speed 7200 RPM; use case Servers, NAS, JBOD, and storage arrays. Manufacturer part number ST10000NM0016. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD compatible with my infrastructure?
The Seagate ST10000NM0016 10TB 3.5-inch SATA Enterprise HDD uses a SATA 6Gb/s interface in a 3.5-inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
