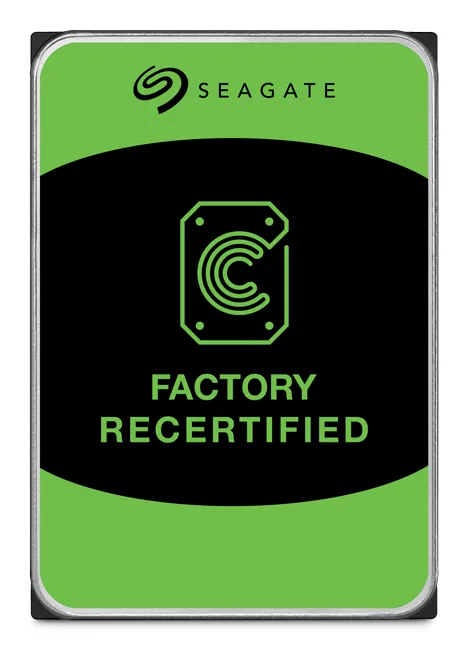

Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD
Brand: Seagate | Category: Enterprise HDDs
SKU: SEA-ST22000NM000C | Part #: ST22000NM000C | MPN: ST22000NM000C
Contact for Pricing — Request a Quote
About the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD
The Seagate ST22000NM000C delivers 22TB capacity at 7200 RPM, positioning this drive in the high-capacity enterprise storage tier for data-intensive workloads. Built on the proven Exos X22 series, this 3.5-inch SATA drive combines massive density with proven reliability, making it ideal for storage architects and IT procurement teams planning next-generation data center infrastructure.
The ST22000NM000C leverages helium-sealed, multi-platter technology to achieve its exceptional 22TB formatted capacity while maintaining a sustained transfer rate of up to 285MB/s. With a 256MB cache buffer and support for a 550TB/year workload rate, this Seagate enterprise HDD suits high-throughput environments including NAS systems, backup appliances, and archival platforms. Dual-plane rotational vibration compensation ensures stable operation in multi-drive enclosures, while the 2,500,000-hour MTBF rating reflects enterprise-grade durability. Power efficiency remains competitive—drawing just 9.45W during random read/write operations and 5.30W at idle—helping minimize total cost of ownership in large deployments. The drive's tolerance for operating shock (70G, 2ms) and non-operating shock (250G, 2ms) protects against handling and shipping impacts.
Key Specifications
- Manufacturer Part Number: ST22000NM000C
- Series: Exos X22
- Form Factor: 3.5-inch
- Formatted Capacity: 22TB
- Interface: SATA 6Gb/s
- Rotational Speed: 7200 RPM
- Cache Buffer: 256MB
- Sustained Transfer Rate: Up to 285MB/s
- MTBF: 2,500,000 hours
- Operating Temperature Range: 5°C to 60°C
Contact Omnixon Global to request a quotation for the Seagate ST22000NM000C and explore volume pricing for your enterprise storage requirements.
Technical Specifications
| Brand | Seagate |
| Category | Enterprise HDDs |
| SKU | SEA-ST22000NM000C |
| Part Number | ST22000NM000C |
| Condition | New |
| Capacity | 22TB |
| Form Factor | 3.5" |
| Interface | SATA 6Gb/s |
| Speed | 7,200 RPM |
| Manufacturer Part Number | ST22000NM000C |
| Series | Exos X22 |
| Form Factor | 3.5-inch |
| Formatted Capacity | 22TB |
| Interface | SATA 6Gb/s |
| Rotational Speed | 7200 RPM |
| Cache Buffer | 256MB |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Areal Density | Helium-sealed, multi-platter |
| Sustained Transfer Rate (OD) | Up to 285MB/s |
| Workload Rate | 550TB/year |
| MTBF | 2,500,000 hours |
| Power Consumption (Operating, Random Read/Write) | 9.45W |
| Power Consumption (Idle A) | 5.30W |
| Rotational Vibration Compensation | Yes (dual-plane RV sensors) |
| Operating Temperature | 5°C to 60°C |
| Non-Operating Shock | 250G, 2ms |
| Operating Shock | 70G, 2ms |
| Weight | 780g (approximate) |
| Encryption | Self-Encrypting Drive (SED) option available on select variants |
Frequently Asked Questions about Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD
What does the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD do?
At 22TB, the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA 6Gb/s interface is supported by major server platforms.
What are the headline specs of the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD?
Key specifications for the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD: capacity 22TB; form factor 3.5-inch; interface SATA 6Gb/s; new condition; capacity 22TB; form factor 3.5-inch; interface SATA 6Gb/s; drive class Enterprise HDD; typical spindle speed 7200 RPM; use case Servers, NAS, JBOD, and storage arrays. Manufacturer part number ST22000NM000C. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD compatible with my infrastructure?
The Seagate ST22000NM000C 22TB 3.5-inch SATA Enterprise HDD uses a SATA 6Gb/s interface in a 3.5-inch form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
