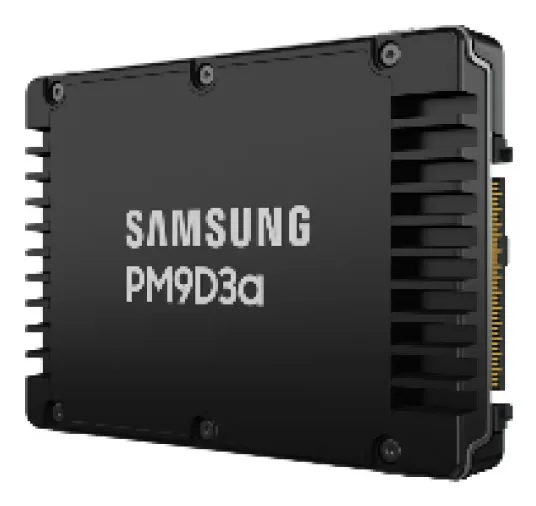

Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD
Brand: Samsung | Category: Enterprise SSDs
SKU: SAM-MZWL67T6HBLC-00AW7 | Part #: MZWL67T6HBLC-00AW7 | MPN: MZWL67T6HBLC-00AW7
Contact for Pricing — Request a Quote
About the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD
The Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD (part number MZWL67T6HBLC-00AW7) delivers enterprise-grade NVMe performance in a compact U.2 2.5-inch form factor with SFF-8639 connector compatibility. This drive achieves sequential read speeds up to 14,000 MB/s and sequential write speeds up to 7,000 MB/s over a PCIe 5.0 x4 interface, meeting NVMe 2.0 specification requirements. With random read performance reaching 2,500,000 IOPS and random write performance of 250,000 IOPS at 4KB queue depth, the PM9D3a handles intensive transactional workloads while consuming only approximately 25 W during active read operations and approximately 5 W at idle, minimizing thermal footprint in dense server environments.
Storage architects and data center infrastructure teams select Samsung enterprise SSDs for mission-critical applications requiring proven reliability and consistent performance scaling. The PM9D3a's 7.68 TB capacity leverages Samsung's V-NAND TLC technology, paired with end-to-end data path protection and capacitor-based power-loss protection to safeguard workload integrity. AES 256-bit encryption and TCG Opal 2.0 compliance support regulatory requirements in regulated industries. Operating across 0°C to 70°C, the drive's 69.85 mm × 100.45 mm × 15 mm dimensions fit standard enterprise backplane specifications, enabling predictable deployment in hyperscale and hybrid-cloud infrastructure.
Organizations standardizing on Samsung storage infrastructure benefit from validated firmware, ecosystem support, and proven field performance across global deployments. To specify the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD for your enterprise storage requirements, contact Omnixon Global for a detailed quotation request.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | SAM-MZWL67T6HBLC-00AW7 |
| Part Number | MZWL67T6HBLC-00AW7 |
| Condition | New |
| Capacity | 7.68TB |
| Form Factor | U.2 |
| Interface | PCIe Gen5 |
| Manufacturer Part Number | MZWL67T6HBLC-00AW7 |
| Product Family | PM9D3a |
| Capacity | 7.68 TB |
| Form Factor | U.2 2.5-inch (15mm) |
| Connector | SFF-8639 (U.2) |
| Interface | NVMe PCIe 5.0 x4 |
| NVMe Specification | NVMe 2.0 |
| NAND Flash Type | Samsung V-NAND (TLC) |
| Sequential Read Speed | Up to 14,000 MB/s |
| Sequential Write Speed | Up to 7,000 MB/s |
| Random Read IOPS | Up to 2,500,000 IOPS (4KB) |
| Random Write IOPS | Up to 250,000 IOPS (4KB) |
| Power Consumption (Active Read) | Approximately 25 W |
| Power Consumption (Idle) | Approximately 5 W |
| Data Integrity | End-to-end data path protection (E2E DPP) |
| Power-Loss Protection | Yes (capacitor-based) |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 69.85 mm x 100.45 mm x 15 mm |
| Encryption | AES 256-bit, TCG Opal 2.0 |
Frequently Asked Questions about Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD
What does the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD do?
At 7.68TB, the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What are the headline specs of the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD?
Key specifications for the Samsung PM9D3a 7.68TB NVMe PCIe 5.0 U.2 SSD: capacity 7.68TB; form factor U.2; new condition; capacity 7.68TB; interface PCIe 5.0 x4, NVMe; form factor U.2; sequential read 12000 MB/s; sequential write 6000 MB/s; random read 2,000,000 IOPS. Manufacturer part number MZWL67T6HBLC-00AW7. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
