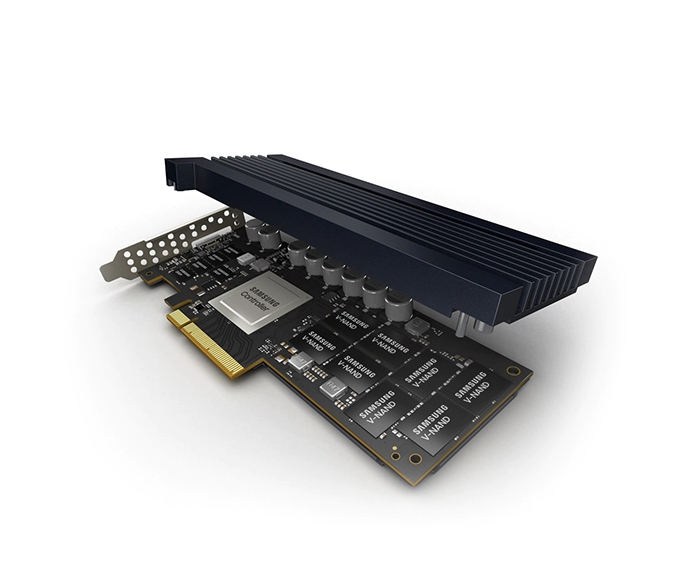

Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD
Brand: Samsung | Category: Enterprise SSDs
SKU: MZPLL3T2HAJQ-00005 | Part #: MZPLL3T2HAJQ-00005 | MPN: MZPLL3T2HAJQ-00005
Contact for Pricing — Request a Quote
About the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD
Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD (Part Number MZPLL3T2HAJQ-00005) delivers 3 DWPD endurance—a critical specification for write-intensive workloads where data durability directly impacts total cost of ownership. This enterprise-class drive combines Samsung's proven V-NAND technology with a Half-Height Half-Length form factor, enabling dense, high-performance storage expansion in space-constrained server environments. Operating across the PCIe 3.0 x8 interface with NVMe 1.3 protocol support, the PM1725b achieves sequential read performance up to 6,200 MB/s and sequential write throughput up to 2,000 MB/s. Random I/O performance reaches 1,000,000 IOPS for 4K reads and 180,000 IOPS for 4K writes, positioning this drive for latency-sensitive applications. The 3.2TB capacity in a single HHHL card eliminates the need for multiple smaller drives while maintaining the form factor's compact footprint.
Storage architects, database administrators, and IT infrastructure teams responsible for high-transaction environments—particularly those running analytics, virtualization, or real-time data processing—select the Samsung PM1725b for its combination of speed and endurance. Capacitor-based power loss protection safeguards in-flight data during unexpected power events, while AES 256-bit encryption and end-to-end data protection address enterprise security mandates. The drive operates reliably across 0°C to 70°C, with storage temperature tolerance from -40°C to 85°C, supporting deployment across diverse data center climates. Approximate active power consumption of 25 W keeps thermal and electrical budgets predictable in dense server configurations.
Omnixon Global supplies the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD to enterprise customers throughout the UAE and the region. To discuss availability, volume pricing, and lead times for part number MZPLL3T2HAJQ-00005, submit a request for quotation through Omnixon Global today.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | MZPLL3T2HAJQ-00005 |
| Part Number | MZPLL3T2HAJQ-00005 |
| Condition | New |
| Capacity | 3200 GB |
| Form Factor | HHHL (Half-Height Half-Length) |
| Interface | PCIe 3.0 x8 NVMe |
| Manufacturer Part Number | MZPLL3T2HAJQ-00005 |
| Model | PM1725b |
| Capacity | 3.2 TB |
| Form Factor | HHHL (Half-Height Half-Length) PCIe Add-In Card |
| Host Interface | PCIe 3.0 x8 |
| Protocol | NVMe 1.3 |
| Sequential Read | Up to 6,200 MB/s |
| Sequential Write | Up to 2,000 MB/s |
| Random Read (4K) | Up to 1,000,000 IOPS |
| Random Write (4K) | Up to 180,000 IOPS |
| Endurance (DWPD) | 3 DWPD |
| NAND Technology | Samsung V-NAND |
| Power Loss Protection | Yes (capacitor-based) |
| End-to-End Data Protection | Yes |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Power Consumption (Active) | Approximately 25 W |
| Dimensions | Standard HHHL PCIe add-in card |
| Encryption | AES 256-bit |
Frequently Asked Questions about Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD
What does the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD do?
At 3200 GB, the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The PCIe 3.0 x8 NVMe interface is supported by major server platforms.
What are the headline specs of the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD?
Key specifications for the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD: capacity 3200 GB; form factor HHHL (Half-Height Half-Length); interface PCIe 3.0 x8 NVMe; new condition; brand Samsung; series PM1725b; capacity 3.2TB; interface PCIe 3.0 x8 NVMe; form factor HHHL; nand type Samsung V-NAND. Manufacturer part number MZPLL3T2HAJQ-00005. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD compatible with my infrastructure?
The Samsung PM1725b 3.2TB HHHL PCIe 3.0 NVMe Enterprise SSD uses a PCIe 3.0 x8 NVMe interface in a HHHL (Half-Height Half-Length) form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
