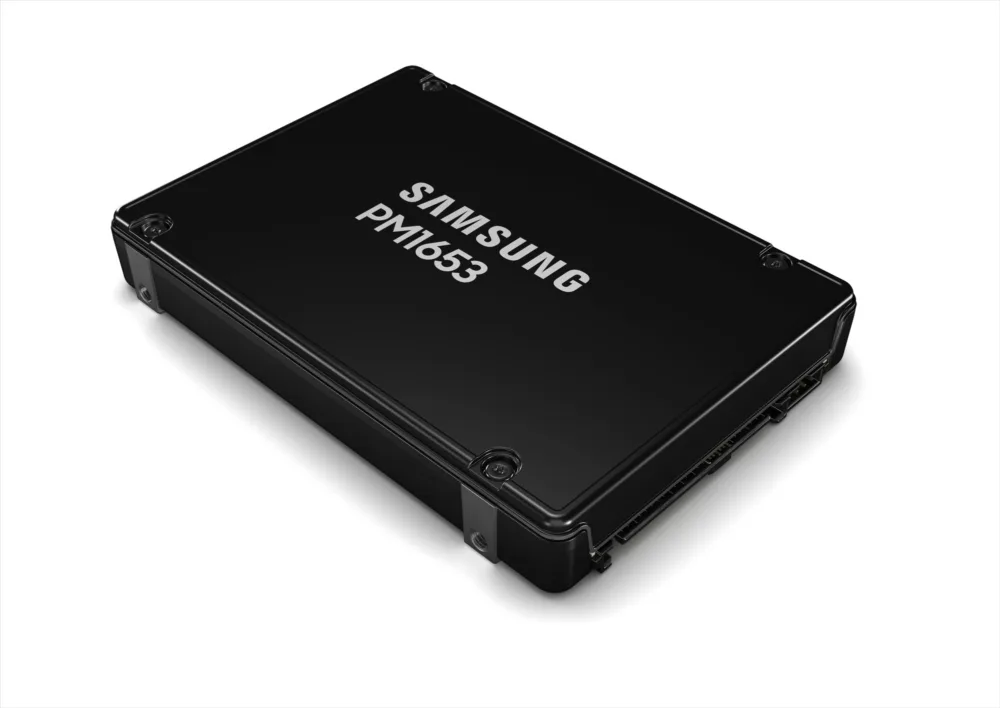

Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD
Brand: Samsung | Category: Enterprise SSDs
SKU: MZILG3T8HCLS-00A07 | Part #: MZILG3T8HCLS-00A07 | MPN: MZILG3T8HCLS-00A07
Contact for Pricing — Request a Quote
About the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD
The Samsung PM1653 3.840TB 2.5-inch SAS SSD (part number MZILG3T8HCLS-00A07) is engineered for write-intensive enterprise workloads, delivering 1.0 DWPD endurance to sustain demanding data center operations. This dual-port SAS 24Gbps drive combines high-speed performance with robust data protection, making it the ideal choice for storage architects and IT procurement teams deploying mission-critical infrastructure.
Samsung's PM1653 series leverages V-NAND technology and dual SAS ports to maximize throughput and redundancy in enterprise storage arrays. With 4,200 MB/s sequential read speed and 3,700 MB/s sequential write speed, this drive handles heavy transactional loads efficiently. The drive includes AES 256-bit hardware encryption and T10 PI end-to-end data path protection, ensuring data integrity across the storage pipeline. Capacitor-based power loss protection safeguards in-flight data during unexpected power events. Operating across a wide temperature range (0°C to 70°C), the PM1653 integrates seamlessly into demanding server and storage environments while maintaining backward compatibility with SAS 12Gbps and SAS 6Gbps infrastructure. At 115 grams and measuring 69.85 mm × 15.0 mm × 100.45 mm, this 2.5-inch form factor optimizes density in rack-mount systems.
Key Specifications
- Manufacturer Part Number: MZILG3T8HCLS-00A07
- Capacity: 3.840 TB
- Interface: SAS 24Gbps (SAS-4) with dual ports
- Sequential Read/Write Speed: 4,200 MB/s / 3,700 MB/s
- Endurance: 1.0 DWPD
- Encryption & Protection: AES 256-bit hardware encryption, T10 PI, capacitor-based power loss protection
Contact Omnixon Global to request a quote for the Samsung PM1653 and discuss your enterprise storage requirements.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | MZILG3T8HCLS-00A07 |
| Part Number | MZILG3T8HCLS-00A07 |
| Condition | New |
| Capacity | 3.840TB |
| Form Factor | 2.5" |
| Interface | SAS 24Gb/s |
| Speed | 4200 Mb/s |
| Manufacturer Part Number | MZILG3T8HCLS-00A07 |
| Product Series | PM1653 |
| Capacity | 3.840 TB |
| Form Factor | 2.5-inch (SFF), 15mm |
| Interface | SAS 24Gbps (SAS-4) |
| Interface Ports | Dual Port |
| Sequential Read Speed | 4,200 MB/s |
| Sequential Write Speed | 3,700 MB/s |
| Endurance (DWPD) | 1.0 DWPD |
| Flash Memory Type | Samsung V-NAND |
| Encryption | AES 256-bit hardware encryption |
| Data Protection | T10 PI (Protection Information), end-to-end data path protection |
| Power Loss Protection | Yes (capacitor-based) |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions (W x H x D) | 69.85 mm x 15.0 mm x 100.45 mm |
| Weight | Approximately 115 g |
| Backward Compatibility | SAS 12Gbps, SAS 6Gbps |
Frequently Asked Questions about Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD
What does the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD do?
At 3.840TB, the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SAS 24Gbps interface is supported by major server platforms.
What are the headline specs of the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD?
Key specifications for the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD: capacity 3.840TB; form factor 2.5 Inch 15mm; interface SAS 24Gbps; new condition; model PM1653; capacity 3.840TB; interface SAS 24Gbps; form factor 2.5 Inch 15mm; sequential read speed 4200 Mb/s; sequential write speed 3700 Mb/s. Manufacturer part number MZILG3T8HCLS-00A07. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD compatible with my infrastructure?
The Samsung PM1653 3.840TB 2.5 Inch SAS 24Gbps SSD uses a SAS 24Gbps interface in a 2.5 Inch 15mm form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
