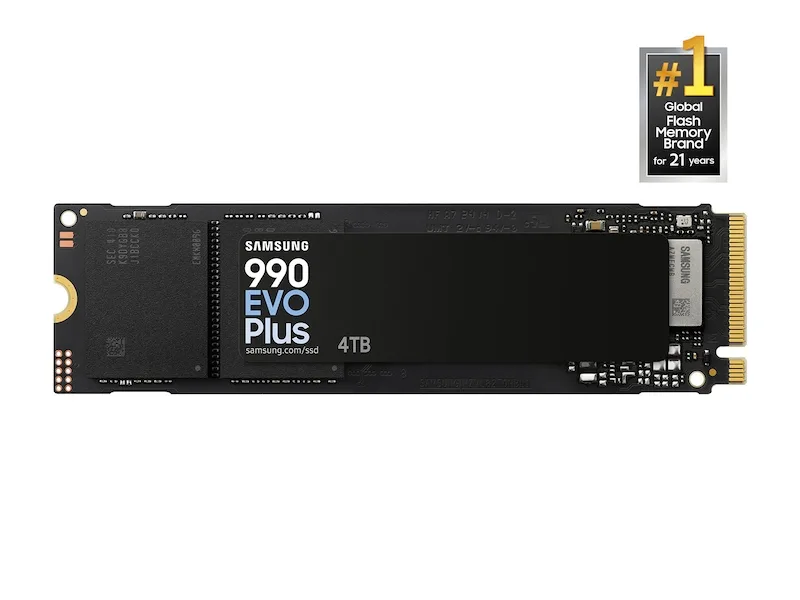

Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB
Brand: Samsung | Category: Enterprise SSDs
SKU: SAMS-MZV9S4T0BAM | Part #: MZ-V9S4T0B/AM | MPN: MZ-V9S4T0B/AM
Contact for Pricing — Request a Quote
About the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB
The Samsung 990 EVO Plus Enterprise-class M.2 SSD in the 4TB capacity tier represents Samsung's 2025-Q1 advancement in the hybrid PCIe 4.0 x4 / PCIe 5.0 x2 interface architecture, enabling compatibility across both current-generation and next-generation host platforms without sacrificing bandwidth. Built on Samsung's latest V-NAND technology with an enterprise-class endurance rating, the drive is engineered to sustain write-intensive workloads at the edge, in workstations, and in compact server nodes where the M.2 2280 form factor is mandated. The hybrid lane configuration intelligently negotiates the optimal interface based on host controller availability, delivering sequential read throughput of up to 7,250 MB/s and sequential write throughput of up to 6,300 MB/s under PCIe 5.0 x2 operation.
Ideal for
- Edge server and micro-datacenter OS and data tiering where U.2 or EDSFF slots are unavailable and M.2 density is critical
- AI and machine learning workstation scratch storage for large dataset staging and model checkpoint persistence
- Video production workstations requiring sustained 4K/8K media read and write throughput across long editing sessions
- Virtualization hosts running multiple concurrent VMs with high random IOPS demands on a single compact storage device
- Industrial edge nodes and ruggedized compute appliances demanding high endurance and consistent latency under mixed workloads
- Database caching and log storage tiers in workstation-class systems where PCIe 5.0 host readiness is being phased in
Technical specifications
| Manufacturer | Samsung |
| Product Line | 990 EVO Plus Enterprise-class |
| Capacity | 4 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 / PCIe 5.0 x2 (hybrid, NVMe 2.0) |
| NAND Flash Type | Samsung V-NAND TLC (Multi-Layer, Enterprise-class) |
| Controller | Samsung proprietary enterprise NVMe controller |
| Sequential Read Speed | Up to 7,250 MB/s |
| Sequential Write Speed | Up to 6,300 MB/s |
| Random Read IOPS (4K) | Up to 1,400,000 IOPS |
| Random Write IOPS (4K) | Up to 1,400,000 IOPS |
| Endurance (TBW) | 2,400 TBW |
| DWPD | ~0.33 DWPD (5-year basis) |
| Power Consumption (Active) | Up to 9.0 W |
| Power Consumption (Idle) | Approx. 50 mW |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 80 mm x 22 mm x 2.38 mm |
| Weight | Approx. 10 g |
| Data Security | AES 256-bit Hardware Encryption, TCG Opal 2.0 |
| Error Correction | Samsung LPDDR4-based DRAM cache with LDPC ECC engine |
| Thermal Protection | Dynamic Thermal Guard with active throttle management |
| OS Compatibility | Windows 10/11, Windows Server 2019/2022, Linux Kernel 4.4+, VMware ESXi 7.0+ |
| Launch Quarter | 2025-Q1 |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | Samsung |
| Category | Enterprise SSDs |
| SKU | SAMS-MZV9S4T0BAM |
| Part Number | MZ-V9S4T0B/AM |
| Condition | New |
| Product Line | 990 EVO Plus Enterprise-class |
| Capacity | 4 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe 4.0 x4 / PCIe 5.0 x2 (hybrid, NVMe 2.0) |
| NAND Flash Type | Samsung V-NAND TLC (Multi-Layer, Enterprise-class) |
| Controller | Samsung proprietary enterprise NVMe controller |
| Sequential Read Speed | Up to 7,250 MB/s |
| Sequential Write Speed | Up to 6,300 MB/s |
| Random Read IOPS (4K) | Up to 1,400,000 IOPS |
| Random Write IOPS (4K) | Up to 1,400,000 IOPS |
| Endurance (TBW) | 2,400 TBW |
| DWPD | ~0.33 DWPD (5-year basis) |
| Power Consumption (Active) | Up to 9.0 W |
| Power Consumption (Idle) | Approx. 50 mW |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 80 mm x 22 mm x 2.38 mm |
| Weight | Approx. 10 g |
| Data Security | AES 256-bit Hardware Encryption, TCG Opal 2.0 |
| Error Correction | Samsung LPDDR4-based DRAM cache with LDPC ECC engine |
| Thermal Protection | Dynamic Thermal Guard with active throttle management |
| OS Compatibility | Windows 10/11, Windows Server 2019/2022, Linux Kernel 4.4+, VMware ESXi 7.0+ |
| Launch Quarter | 2025-Q1 |
Frequently Asked Questions about Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB
What does the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB do?
the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What does the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB do?
the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What does the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB do?
the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What are the headline specs of the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB?
Key specifications for the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB: new condition; manufacturer Samsung; product line 990 EVO Plus Enterprise-class; capacity 4 TB; form factor M.2 2280; interface PCIe 4.0 x4 / PCIe 5.0 x2 (hybrid, NVMe 2.0); nand flash type Samsung V-NAND TLC (Multi-Layer, Enterprise-class). Manufacturer part number MZ-V9S4T0B/AM. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
What are the headline specs of the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB?
Key specifications for the Samsung 990 EVO Plus Enterprise-class M.2 SSD 4TB: new condition; manufacturer Samsung; product line 990 EVO Plus Enterprise-class; capacity 4 TB; form factor M.2 2280; interface PCIe 4.0 x4 / PCIe 5.0 x2 (hybrid, NVMe 2.0); nand flash type Samsung V-NAND TLC (Multi-Layer, Enterprise-class). Manufacturer part number MZ-V9S4T0B/AM. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
