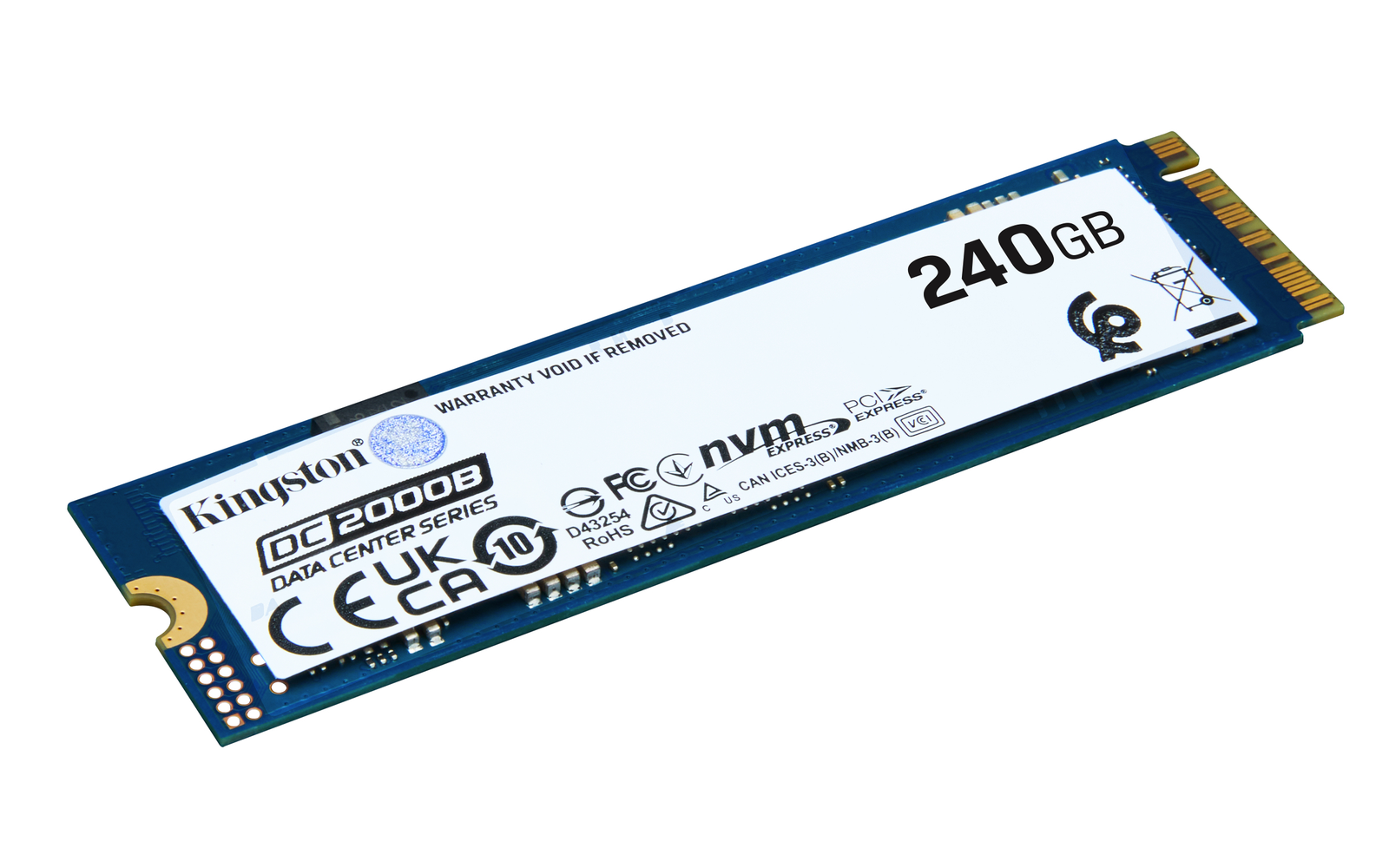

Kingston DC2000B 240GB M.2 NVMe Boot SSD
Brand: Kingston | Category: Enterprise SSDs
SKU: SEDC2000BM8/240G | Part #: SEDC2000BM8/240G | MPN: SEDC2000BM8/240G
Contact for Pricing — Request a Quote
About the Kingston DC2000B 240GB M.2 NVMe Boot SSD
The Kingston DC2000B is a compact M.2 2280 NVMe SSD engineered for enterprise boot and read-intensive workloads in data center environments. Built on a 3D TLC NAND architecture with power-loss protection (PLP), the DC2000B delivers consistent performance for OS and application boot scenarios, with native support for RAID configurations including RAID1 mirroring for high-availability boot volumes.
Designed for server platforms requiring reliable, space-efficient storage, the DC2000B integrates firmware-level data integrity features and enterprise-grade reliability metrics suitable for 24/7 operational demands. The 240GB capacity addresses typical boot and system partition requirements in standardized server deployments.
Ideal for
- Primary boot volume in clustered server environments with RAID1 redundancy
- OS installation and system partition on hypervisors (ESXi, Hyper-V, KVM hosts)
- Database server boot drives requiring fast restart cycles
- Application server boot acceleration in load-balanced configurations
- Virtual machine host boot storage in virtualization platforms
- Disaster recovery and failover system image storage
Technical specifications
| Manufacturer | Kingston |
| Model | DC2000B |
| Manufacturer Part Number | SEDC2000BM8/240G |
| Capacity | 240GB |
| Form Factor | M.2 2280 |
| Interface | NVMe (PCIe 4.0) |
| NAND Type | 3D TLC |
| Memory Controller | Phison |
| Power Loss Protection | Yes |
| Sequential Read | Up to 4,800 MB/s |
| Sequential Write | Up to 2,000 MB/s |
| 4K Random Read | Up to 800,000 IOPS |
| 4K Random Write | Up to 80,000 IOPS |
| Mean Time Between Failures | 2,000,000 hours |
| Operating Temperature Range | 0°C to 70°C |
| Storage Temperature Range | -40°C to 85°C |
| Power Consumption (Active Read) | Approximately 6W |
| Power Consumption (Idle) | Approximately 0.1W |
| Enterprise Features | End-to-end data path protection, SMART monitoring, TRIM support |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
