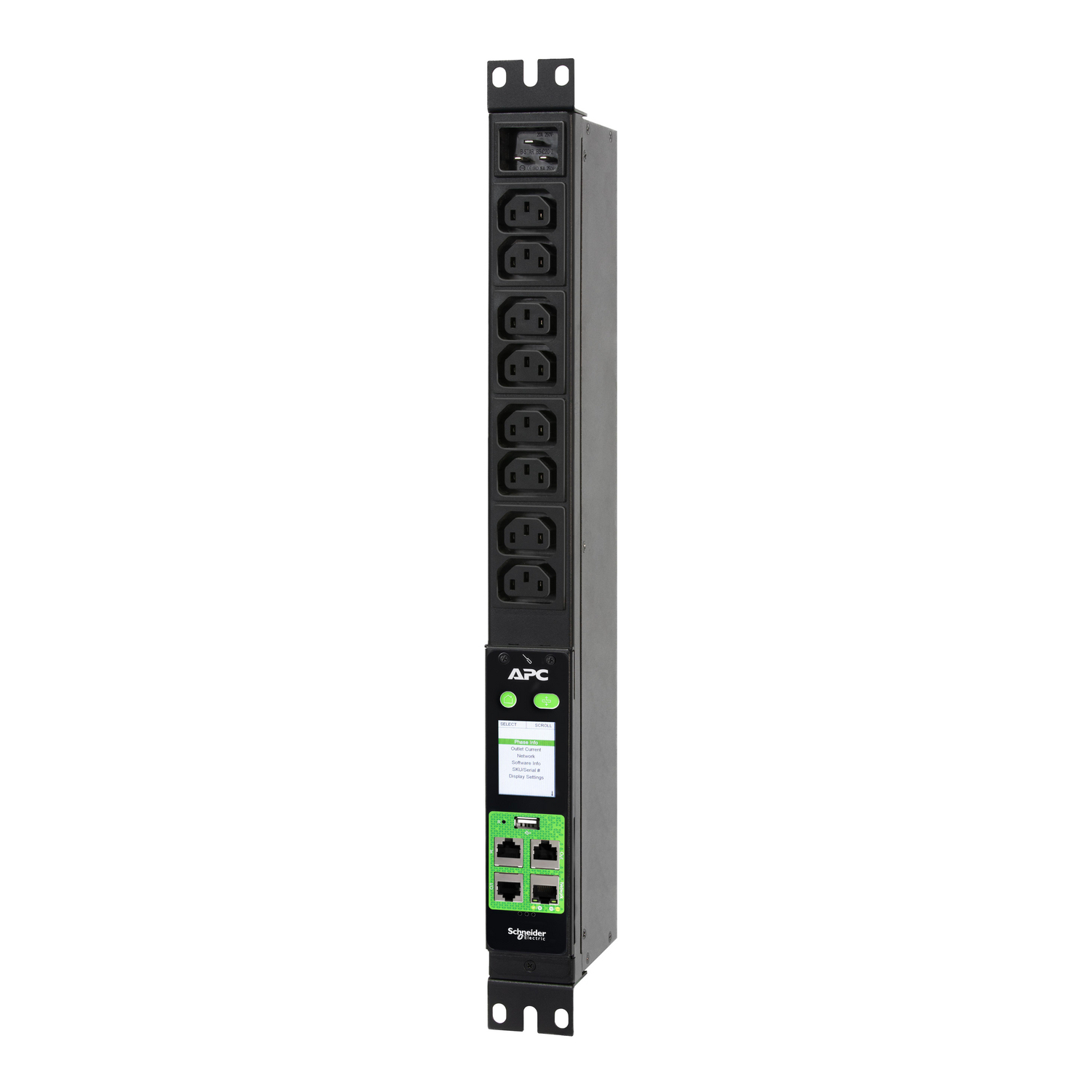

Easy PDU Metered 1U 16A 230V (8)C13

Easy PDU Metered 1U 16A 230V (8)C13

Brand: APC | Category: Rack PDUs

SKU: EPDU2016M | Part #: EPDU2016M | MPN: EPDU2016M

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the Easy PDU Metered 1U 16A 230V (8)C13

EASY PDU METERED 1U 16A 230V (8)C13 is an APC Server Rack PDU engineered for data centers requiring outlet-level power visibility. Delivers accurate metering across all outlets to optimize resource allocation and reduce waste.

Key Features:

  • 1U rackmount form factor for space-efficient deployment
  • 8× IEC C13 outlets rated 16A at 230V
  • Individual outlet metering for granular power consumption tracking
  • Network connectivity for remote monitoring and management

Ideal for:

  • Mid-sized data centers and server rooms requiring power visibility
  • Cloud infrastructure facilities needing per-outlet energy audits
  • Enterprise IT environments with strict power budgeting

Technical Specifications

BrandAPC
CategoryRack PDUs
SKUEPDU2016M
Part NumberEPDU2016M
ConditionNew
AC outlet typesC13 coupler
Power plugC13 coupler
AC outlets quantity8 AC outlet(s)
Number of phases1
Load capacity3680 VA
Output voltage208 V
Nominal output voltage208 V
Maximum current16 A
AC input frequency50/60 Hz
Nominal input voltage230 V
Product colourBlack
MountingVertical
Rack capacity1U
TypeSingle-phase
PDU typesMetered
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 50 °C
Weight1.7 kg
Height44 mm
Depth100 mm
Width482 mm
Compliance certificatesCE, UKCA
