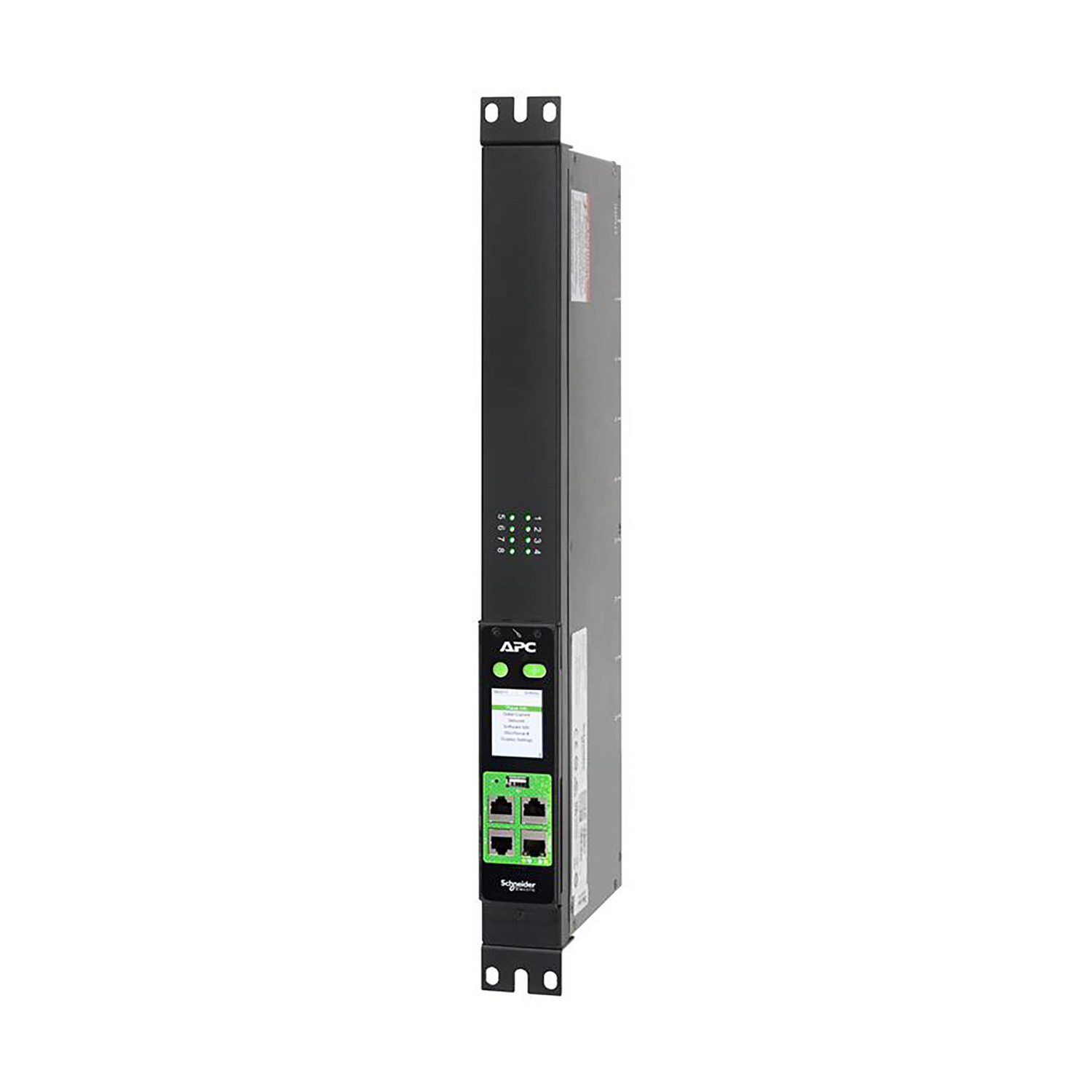

Easy PDU Switched 1U 16A 230V (8)C13

Easy PDU Switched 1U 16A 230V (8)C13

Brand: APC | Category: Rack PDUs

SKU: EPDU2016S | Part #: EPDU2016S | MPN: EPDU2016S

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the Easy PDU Switched 1U 16A 230V (8)C13

EASY PDU SWITCHED 1U 16A 230V (8)C13 is an APC Server Rack PDU combining intelligent power distribution with individual outlet switching. Enable remote power cycling and equipment resets without physical intervention.

Key Features:

  • 1U compact design fits standard server rack mounting
  • 8× IEC C13 outlets with independent on/off switching
  • 16A 230V rated for medium-load enterprise applications
  • Network-addressable switching for remote device management

Ideal for:

  • Managed hosting and colocation data centers
  • Enterprise IT labs requiring frequent power resets
  • Server rooms needing remote equipment power control

Technical Specifications

BrandAPC
CategoryRack PDUs
SKUEPDU2016S
Part NumberEPDU2016S
ConditionNew
AC outlet typesC13 coupler
Power plugC20 coupler
AC outlets quantity8 AC outlet(s)
Number of phases1
Load capacity3680 VA
Output voltage208 V
Maximum current16 A
AC input frequency50/60 Hz
Nominal input voltage230 V
Product colourBlack
MountingVertical
Rack capacity1U
TypeSingle-phase
PDU typesSwitched
Operating altitude0 - 3000 m
Operating relative humidity (H-H)5 - 95%
Storage relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 50 °C
Weight2.45 kg
Height44 mm
Depth150 mm
Width482 mm
Compliance certificatesCE, UKCA
