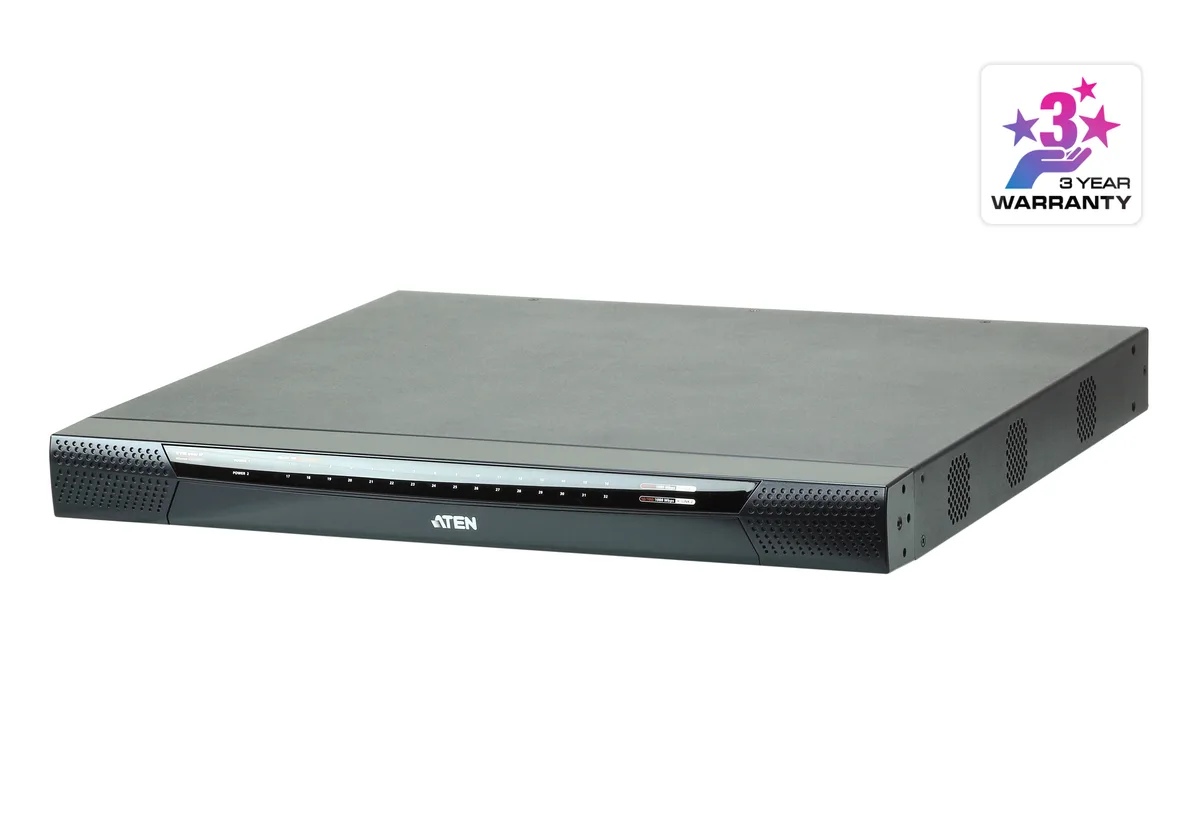

Aten KN4140VA 40-Port Cat5 KVM over IP Switch

The Aten KN4140VA is a 40-port Cat5 KVM-over-IP switch designed for mid-to-large-scale data center environments requiring centralized, remote server access and management. Built on Aten's enterprise KVM-over-IP architecture, it supports simultaneous access by one local and two remote users, enabling concurrent administration without physical presence at the rack. The switch connects to target servers via Cat5e/6 cabling and compatible KVM adapter cables (KVM Adapter Cables sold separately), keeping the server-side footprint minimal while delivering full keyboard, video, and mouse control over standard IP networks.

The KN4140VA incorporates virtual media functionality, allowing administrators to mount ISO images, USB drives, and other removable media on remote target servers directly through the IP session—critical for OS provisioning, firmware updates, and diagnostic operations. Video performance is supported up to 1920×1200 resolution, and the unit provides BIOS-level access to servers regardless of operating system state, ensuring out-of-band management remains available even during crashes or unresponsive OS conditions. The switch supports both IPv4 and IPv6 networking, integrates with LDAP, LDAPS, MS Active Directory, RADIUS, and TACACS+ for enterprise authentication, and provides role-based user access control.

With a 1U rackmount form factor and dual power supply support for power redundancy, the KN4140VA is suited to colocation facilities, enterprise server rooms, and managed hosting environments where high availability and remote manageability are operational requirements. The unit supports daisy-chaining via Aten's cascading architecture to expand port counts beyond the base 40 ports, and its web-based GUI along with the Aten CC2000 Management Software provide centralized visibility and control across multi-switch deployments.

Ideal for

• Centralized BIOS-level remote administration of up to 40 physical servers in a mid-density data center without requiring a local technician at each rack
• OS provisioning and bare-metal server deployment using virtual media to mount ISO images remotely across multiple target servers
• Out-of-band emergency access to servers during OS failures, network outages, or unresponsive states where in-band management tools are unavailable
• Multi-administrator concurrent access in NOC or data center operations environments where two remote operators and one local user must work simultaneously on different target servers
• Secure role-based access control integrated with enterprise directory services such as Microsoft Active Directory or RADIUS to enforce least-privilege server access policies
• Scalable KVM infrastructure deployment in colocation or managed hosting facilities using cascaded Aten KVM switches to manage large server fleets from a single management plane

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
