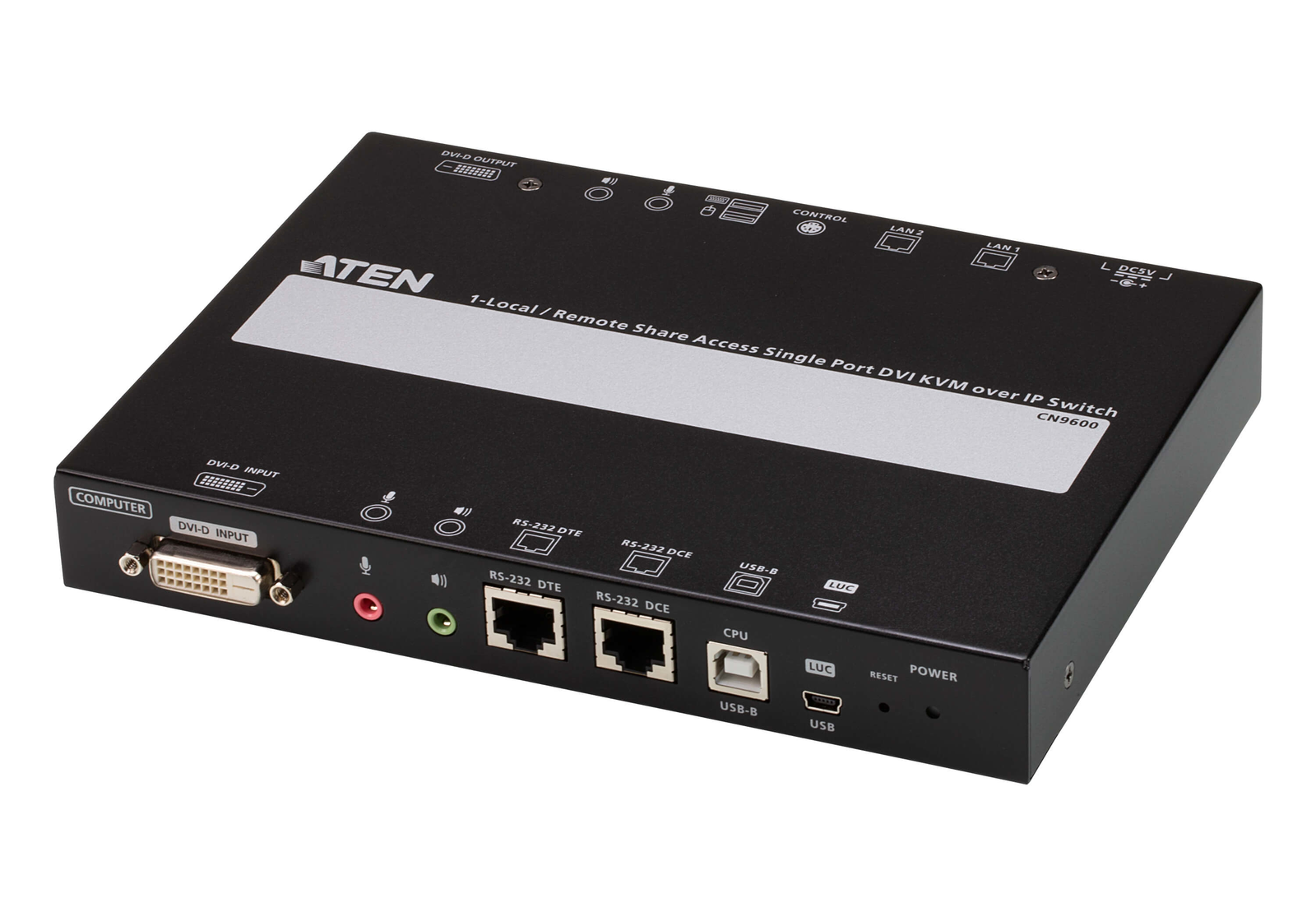

Aten CN9600 Single-Port DVI KVM over IP Switch

The Aten CN9600 is a single-port DVI KVM-over-IP switch that delivers full BIOS-level remote access to a single server or workstation over a standard IP network. Built around Aten's Virtual Media and remote power management architecture, the CN9600 provides administrators with complete out-of-band control — including keyboard, video, and mouse input along with virtual media mounting — without requiring a local presence at the target machine. The unit connects directly to a server's DVI video output and USB or PS/2 ports, making it suitable for deployment alongside rack-mounted servers, embedded systems, or broadcast appliances where discrete, low-profile remote access is required.

Video is captured and transmitted at resolutions up to 1920×1200, with the CN9600 employing an adaptive bandwidth algorithm to balance image fidelity against available network throughput. Access is provided through a browser-based Java client or the standalone Windows AP client, and the device supports simultaneous access by up to 32 user accounts with role-based permission controls. SSL encryption (AES 128/256-bit) and two-factor authentication support help satisfy enterprise and government security baselines without reliance on third-party software agents on the managed host.

The CN9600 is well-suited to data centre environments where maintaining a persistent, hardware-level management path is critical — particularly for headless servers, blade infrastructure edge nodes, or systems running operating systems that lack remote desktop capabilities. Its compact external form factor and single-port design allow flexible placement either mounted in a rack accessory bay or positioned locally adjacent to the target device, and Power over Ethernet (PoE) support on applicable models eliminates the need for a dedicated power drop at the point of installation.

Ideal for

• Out-of-band BIOS-level configuration and firmware updates on headless rack servers without dispatching on-site technicians
• Remote operating system installation and recovery using virtual media (ISO or USB image) mounted over the IP network
• Secure remote management of servers in locked cages or remote data centre facilities where physical access is restricted or costly
• Persistent emergency access path for servers in disaster-recovery sites that must remain reachable during primary network or OS failures
• Remote KVM access to industrial control or broadcast systems running embedded or proprietary operating systems incompatible with software remote-access agents
• Centralised multi-administrator access management for a single critical server with auditable session logging and role-based user permissions

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
