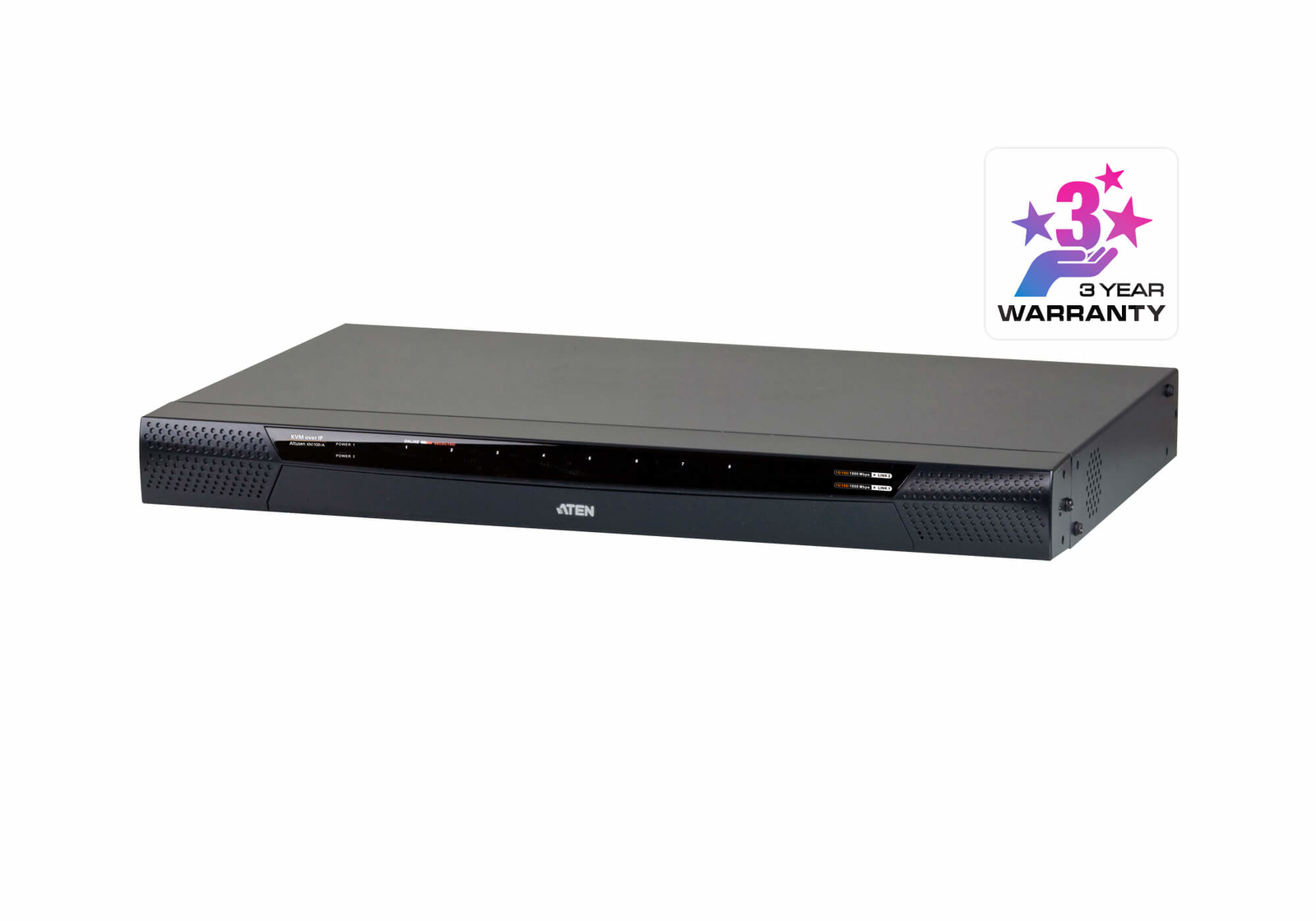

ATEN 8-Port Cat 5 KVM over IP Switch with Power Over the Net KN1108VA

The Aten KN1108VA is a single-user, 8-port KVM over IP switch that enables full remote access to connected servers and serial devices over standard TCP/IP networks. Built on Aten's mature KVM-over-IP architecture, the unit consolidates BIOS-level keyboard, video, and mouse control with out-of-band serial console management into a single 1U rackmount appliance. A dedicated Power Over the Net (PON) module interface allows administrators to remotely power cycle, power on, or shut down connected equipment without requiring physical presence in the data center.

The KN1108VA supports connections to Cat 5e/6 cabling via Aten KVM Adapter Cables (KA7xxx series), allowing the switch itself to be located centrally while servers up to 50 meters away remain accessible. Video is transmitted and rendered at resolutions up to 1920×1200, and the integrated Virtual Media function allows ISO images, USB drives, or CD/DVD media on the administrator's workstation to be mounted directly to a target server — a critical capability for OS deployment, firmware updates, and disaster recovery tasks. Both a Java-based browser client and a Windows-native AP client are supported, and up to 16 user accounts can be configured with granular per-port access permissions.

Targeted at small-to-medium enterprise data centers and server rooms requiring reliable lights-out management, the KN1108VA also integrates with Aten's CC2000 centralized management software for multi-site KVM fleet oversight. A built-in two-port USB hub, RS-232 serial port for PON and UPS management, and dual-stack IPv4/IPv6 support round out a feature set designed for environments where physical server access must be minimized without sacrificing administrative capability.

Ideal for

• Remote BIOS-level server configuration and troubleshooting for IT teams managing geographically distributed data centers without on-site staff
• Out-of-band serial console access to routers, managed switches, and other network appliances sharing rack space with compute nodes
• Operating system deployment and bare-metal provisioning using Virtual Media to mount ISO images or USB sources from an administrator's workstation
• Remote power management of servers and PDUs via the integrated Power Over the Net interface, enabling full power cycle workflows without a site visit
• Centralized multi-server management in SMB server rooms where a single administrator requires secure, auditable access to up to eight physical servers from a single IP endpoint
• Disaster recovery and emergency patching scenarios where out-of-band access to servers remains available even when the primary network or OS is unresponsive

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
