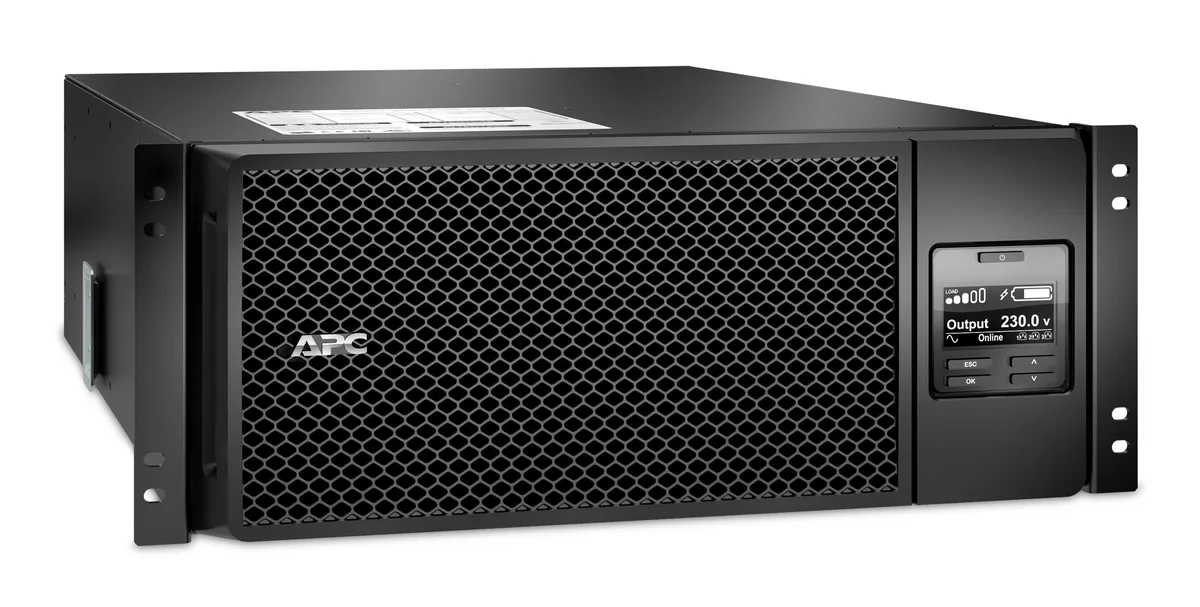

APC Smart-UPS Online SRT 6kVA RM 230V Network Card Bundle

The APC Smart-UPS Online SRT 6kVA RM 230V (SRT6KRMXLI) employs true double-conversion online topology, continuously converting incoming AC power to DC and back to a clean, regulated AC output. This architecture means the connected load operates exclusively from the inverter at all times, providing complete isolation from mains disturbances including voltage sags, swells, spikes, harmonic distortion, and frequency variation — with zero transfer time to battery because no transfer switching is ever required. The SRT series targets enterprise rack environments with its 4U rack-mount form factor, supporting loads across a wide input voltage range and offering output frequency lock to either 50 Hz or 60 Hz independent of input frequency.

The SRT6KRMXLI delivers 6000 VA / 6000 W of output power at unity power factor (1.0), a significant efficiency advantage over legacy UPS designs rated at 0.8 or 0.9 pF. Operating efficiency reaches up to 99% in ECO mode and approximately 96% in double-conversion online mode under full load, reducing heat dissipation and energy consumption in dense data centres. The unit supports an extended battery runtime configuration through compatible external battery packs (SRT192RMBP / SRT192RMBP2) and provides automatic voltage regulation (AVR) on both high and low input voltage conditions without consuming battery capacity. An intuitive LCD interface displays real-time input/output voltage, load percentage, battery charge level, and runtime estimates directly on the front panel.

Designed for mission-critical rack infrastructure, the SRT6KRMXLI ships with an AP9631 network management card pre-installed, enabling SNMP/Web-based remote monitoring, shutdown scripting, and integration with APC's EcoStruxure IT and PowerChute Network Shutdown software. The unit provides six IEC 320 C13 and four IEC 320 C19 output receptacles, allowing direct connection of mixed server and storage loads, and includes a maintenance bypass feature to permit UPS servicing without powering down attached equipment. Hot-swappable battery modules support battery replacement under load, eliminating planned downtime windows for routine maintenance.

Ideal for

• Protecting rackmount servers, blade chassis, and associated SAN/NAS storage arrays in enterprise data centres where zero transfer time and output waveform purity are non-negotiable
• Providing conditioned, regulated power for network core infrastructure including top-of-rack and aggregation switches, routers, and firewalls sensitive to input power quality
• Supporting edge computing and colocation cabinet deployments where space is constrained to 4U or less and remote SNMP-based management via network card is required by operations teams
• Supplying backup power for medical imaging workstations and laboratory instrumentation requiring a pure sine wave output and stable frequency independent of generator input
• Enabling runtime extension in telecommunications equipment rooms through daisy-chained external battery packs where long outage bridge times are mandated by availability SLAs
• Integrating with virtualisation hosts running VMware or Hyper-V clusters, using PowerChute Network Shutdown to execute graceful guest and host shutdown sequences during extended power events

Technical specifications

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
