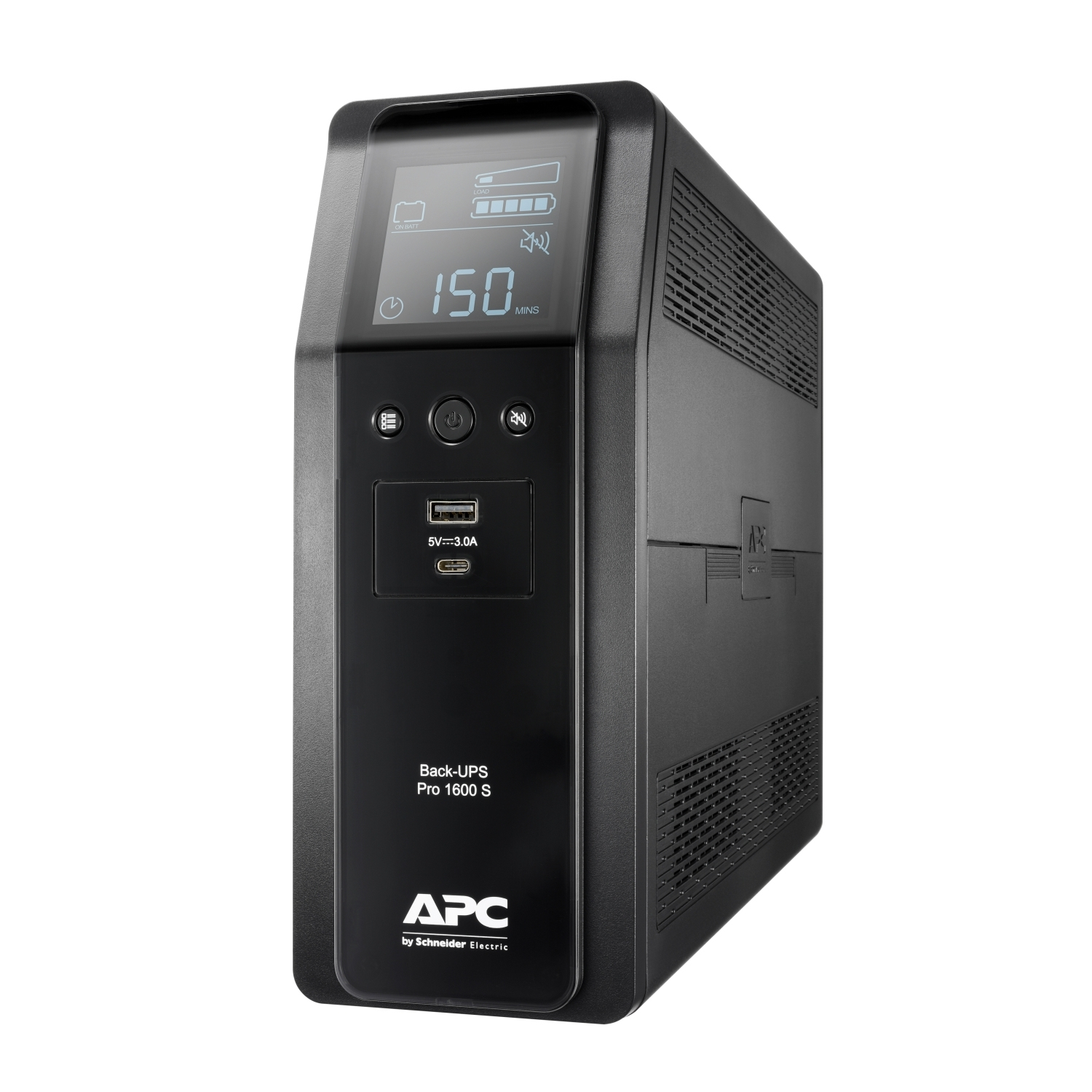

APC Back-UPS Pro BR1600SI 1600VA Line-Interactive UPS

APC Back-UPS Pro BR1600SI 1600VA Line-Interactive UPS

Brand: Schneider Electric | Category: UPS & Power Protection

SKU: BR1600SI | Part #: BR1600SI | MPN: BR1600SI

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the APC Back-UPS Pro BR1600SI 1600VA Line-Interactive UPS

The APC Back-UPS Pro BR1600SI is a 1600VA line-interactive uninterruptible power supply designed to protect workstations, small servers, and edge computing nodes from power disruptions. The unit employs automatic voltage regulation (AVR) to condition utility power and seamlessly switches to battery backup during outages, delivering sustained runtime to enable graceful shutdown or continued operation of protected equipment.

This model features intelligent battery management with temperature-compensated charging to extend battery life in varying environmental conditions. The BR1600SI includes multiple outlets with individualized surge protection, supporting both standard and high-inrush-current devices. Network connectivity through optional SNMP/USB management enables remote monitoring and automated shutdown integration with IT infrastructure.

Ideal for

  • Continuous operation and fault-tolerant shutdown of multi-socket workstations and design/engineering workbenches
  • Runtime extension and graceful power-down for small file servers and NAS appliances in remote offices
  • Protection of network edge infrastructure including managed switches, wireless access points, and IP cameras
  • UPS backbone for modular environments supporting virtual desktop infrastructure (VDI) client devices
  • Power conditioning and battery backup for laboratory and test equipment requiring clean power delivery
  • Redundant power protection for HVAC controls, security systems, and facility edge compute nodes

Technical specifications

ManufacturerSchneider Electric
BrandAPC
ModelBack-UPS Pro BR1600SI
Part NumberBR1600SI
TopologyLine-interactive
Rated Capacity1600 VA / 960 W
Input Voltage230V AC ±10%
Input Frequency50 Hz ± 3 Hz
Output Voltage230V AC ±3%
Output Frequency50 Hz ±0.1 Hz (battery mode)
Transfer Time to Battery<4 ms
Battery TypeSealed Lead-Acid, user-replaceable
Full-Load Battery RuntimeApproximately 6–8 minutes (dependent on load profile)
Recharge TimeApproximately 3 hours (90% capacity)
Outlets8 total (4 battery-backed surge-protected, 4 surge-protected only)
Surge Energy Rating420 joules
Management ConnectivityUSB, optional SNMP adapter support
Dimensions (H×W×D)133 × 283 × 221 mm (approx.)
WeightApproximately 19.5 kg
Operating Temperature0–40°C
Acoustic Noise≤40 dB at 1 meter (typical)
CertificationCE, FCC, RoHS

Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.

Technical Specifications

BrandSchneider Electric
CategoryUPS & Power Protection
SKUBR1600SI
Part NumberBR1600SI
ConditionNew
ModelBack-UPS Pro BR1600SI
TopologyLine-interactive
Rated Capacity1600 VA / 960 W
Input Voltage230V AC ±10%
Input Frequency50 Hz ± 3 Hz
Output Voltage230V AC ±3%
Output Frequency50 Hz ±0.1 Hz (battery mode)
Transfer Time to Battery<4 ms
Battery TypeSealed Lead-Acid, user-replaceable
Full-Load Battery RuntimeApproximately 6–8 minutes (dependent on load profile)
Recharge TimeApproximately 3 hours (90% capacity)
Outlets8 total (4 battery-backed surge-protected, 4 surge-protected only)
Surge Energy Rating420 joules
Management ConnectivityUSB, optional SNMP adapter support
Dimensions (H×W×D)133 × 283 × 221 mm (approx.)
WeightApproximately 19.5 kg
Operating Temperature0–40°C
Acoustic Noise≤40 dB at 1 meter (typical)
CertificationCE, FCC, RoHS
