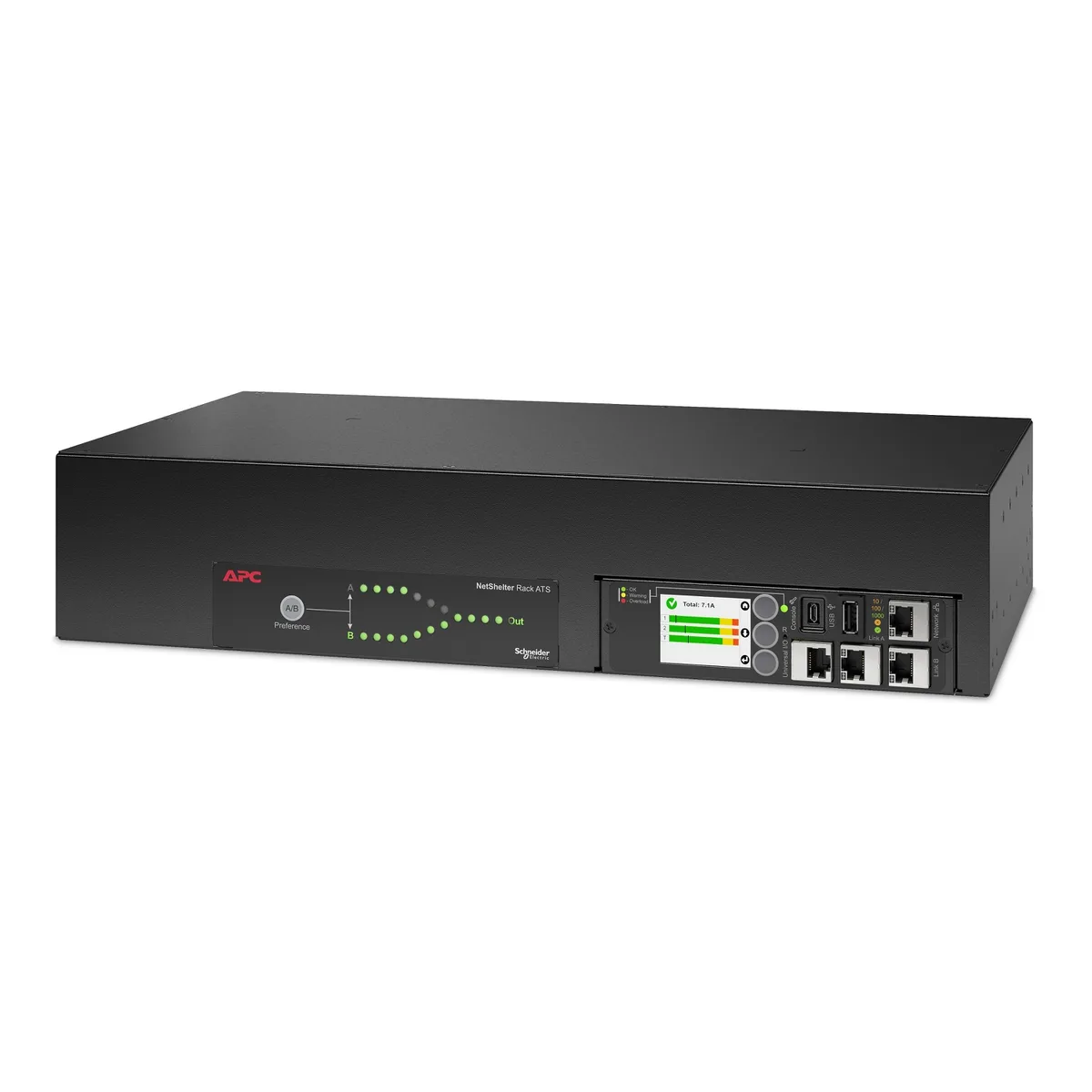

APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out

APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out

Brand: APC | Category: Rack PDUs

SKU: AP4424A | Part #: AP4424A | MPN: AP4424A

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out

APC RACK ATS 230V 32A (AP4424A) is an APC Server Racks & Enclosures solution delivering enterprise-grade power redundancy with high outlet density. 32A capacity and mixed connector outputs make it ideal for heterogeneous server and storage deployments.

Key Features:

  • 230V/32A input for large-scale power distribution across enterprise racks
  • Single IEC 309 input connection for simplified infrastructure integration
  • 16x C13 outlets + 2x C19 outlets supporting diverse equipment power requirements
  • Automatic failover between primary and secondary power sources
  • LCD status display with current monitoring and fault indicators

Ideal for:

  • Hyperscale data centers with high server density requirements
  • Enterprise server rooms housing mixed Dell, HP, Cisco equipment
  • Colocation facilities requiring flexible outlet configurations
  • Storage arrays and blade server chassis with redundant power demands

Technical Specifications

BrandAPC
CategoryRack PDUs
SKUAP4424A
Part NumberAP4424A
ConditionNew
AC outlet typesC13 coupler, C19 coupler
AC outlets quantity18 AC outlet(s)
Output current32 A
Input current32 A
AC input frequency50 - 60 Hz
Input operation voltage (max)253 V
Input operation voltage (min)207 V
CertificationEN 55022 class A, FCC part 15 class A
Product colourBlack
Rack capacity2U
Form factorRackmount
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 45 °C
Weight6.94 kg
Height88 mm
Depth236 mm
Width432 mm

Frequently Asked Questions about APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out

What does the APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out do?

The APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.

What are the headline specs of the APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out?

Key specifications for the APC AP4424A Rack ATS, 230V, 32A, IEC 309 in, (16) C13 (2) C19 Out: new condition; ac outlet types C13 coupler, C19 coupler; ac outlets quantity 18 AC outlet(s); output current 32 A; input current 32 A; ac input frequency 50 - 60 Hz; input operation voltage (max) 253 V. Manufacturer part number AP4424A. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
