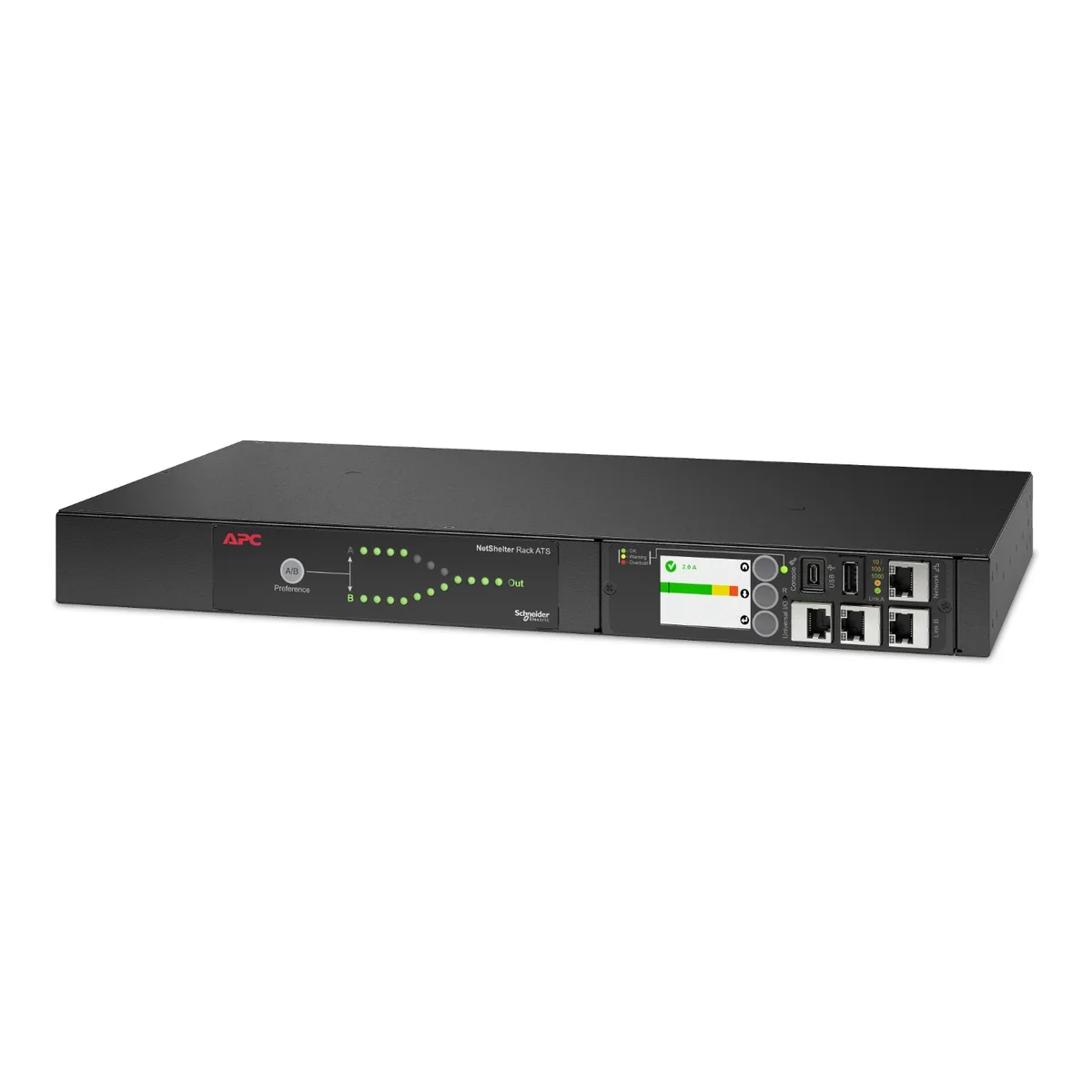

APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out

APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out

Brand: APC | Category: Rack PDUs

SKU: AP4433A | Part #: AP4433A | MPN: AP4433A

Contact for Pricing — Request a Quote

Request a Quote Contact Us

About the APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out

APC RACK ATS 208V 12A (AP4433A) is an APC Server Racks & Enclosures solution engineered for North American power standards and compact server environments. 12-outlet configuration with automatic failover ensures maximum uptime for distributed IT deployments.

Key Features:

  • 208V input voltage conforming to North American enterprise data center standards
  • 12A current rating for mid-scale server and network equipment
  • IEC C14 input (220-240V receptacle) for standard PDU compatibility
  • 12x IEC C13 outlets supporting standard server power cords
  • Intelligent switching with millisecond failover response time
  • Space-efficient 1U rackmount design

Ideal for:

  • Enterprise data centers with North American power infrastructure
  • Mid-scale server deployments requiring redundancy
  • Remote office and branch locations with critical IT loads
  • Multi-tenant colocation facilities with standardized equipment

Technical Specifications

BrandAPC
CategoryRack PDUs
SKUAP4433A
Part NumberAP4433A
ConditionNew
AC outlet typesC13 coupler
AC outlets quantity12 AC outlet(s)
LED indicatorsYes
Output current12 A
Output operation voltage (max)208 V
Input current12 A
AC input frequency50 - 60 Hz
Input operation voltage (max)228 V
Input operation voltage (min)187 V
Doesn't containMercury
Compliance certificatesREACH, RoHS, WEEE
CertificationRoHS, WEEE, REACH
Product colourBlack
Rack capacity1U
Form factorRackmount
Storage relative humidity (H-H)5 - 95%
Operating relative humidity (H-H)5 - 95%
Storage temperature (T-T)-25 - 65 °C
Operating temperature (T-T)-5 - 45 °C
Weight3.74 kg
Height44 mm
Depth236 mm
Width432 mm

Frequently Asked Questions about APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out

What does the APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out do?

The APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out delivers conditioned, backed-up power for server rooms and data-center racks. Use cases include short-term ride-through during grid sag/spike events, graceful shutdown of critical compute, and runtime extension via external battery packs.

What are the headline specs of the APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out?

Key specifications for the APC AP4433A Rack ATS, 208V, 12A, C14 in, (12) C13 Out: new condition; ac outlet types C13 coupler; ac outlets quantity 12 AC outlet(s); led indicators Yes; output current 12 A; output operation voltage (max) 208 V; input current 12 A. Manufacturer part number AP4433A. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
