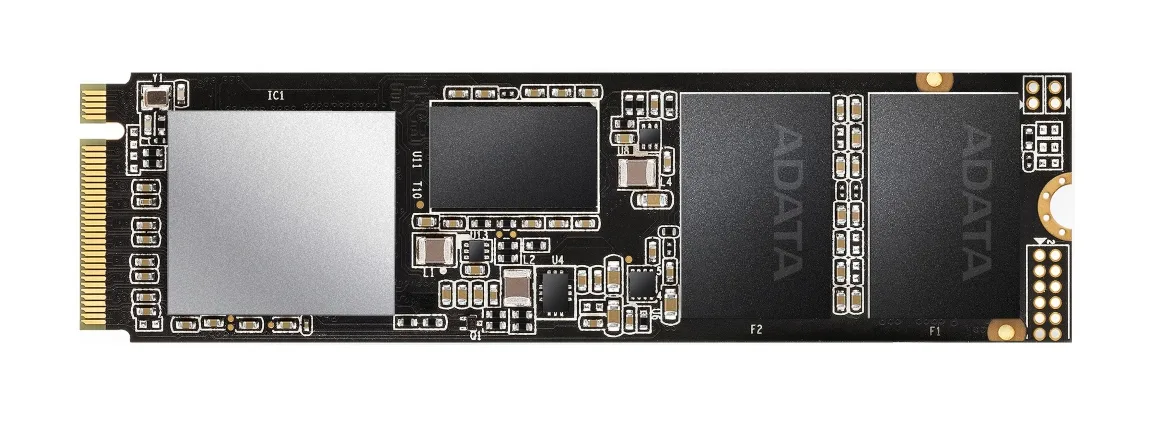

ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD
Brand: ADATA | Category: Enterprise SSDs
SKU: ADAT-ASX8200PNP2TTC | Part #: ASX8200PNP-2TT-C | MPN: ASX8200PNP-2TT-C
Contact for Pricing — Request a Quote
About the ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD
The XPG SX8200 Pro remains one of ADATA's most widely deployed enterprise-adjacent NVMe drives, built around the Silicon Motion SM2262EN controller with an integrated DRAM cache. The Gen3 x4 interface delivers sequential reads up to 3,500 MB/s and sequential writes up to 3,000 MB/s, sufficient for the vast majority of workstation and light server workloads while maintaining broad platform compatibility with Gen3 servers.
The SM2262EN controller implements dynamic SLC caching and LDPC error correction over 3D TLC NAND, contributing to both sustained performance and longevity. The drive is validated on a wide range of server and workstation motherboards including Intel Xeon W and AMD EPYC platforms, making it an easy-to-qualify component for teams building heterogeneous fleets.
With 2 TB capacity and a mature, well-characterised controller, the SX8200 Pro is frequently selected for workstation primary drives, server OS/boot volumes, and tier-2 NVMe caching in storage appliances. Its Gen3 compatibility is an advantage in installed base server refreshes where Gen4 slots are unavailable.
Ideal for
- Workstation primary OS and application drive
- Rack server NVMe boot volume
- Storage appliance NVMe read cache tier
- Software-defined storage (Ceph OSD journal) device
- CAD/CAM workstation scratch storage
- Thin client server-side OS persistence volume
Technical specifications
| Manufacturer | ADATA |
| Model | XPG SX8200 Pro |
| Part Number | ASX8200PNP-2TT-C |
| Capacity | 2 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 x4, NVMe 1.3 |
| Controller | Silicon Motion SM2262EN |
| NAND Flash | 3D TLC NAND |
| Sequential Read | 3,500 MB/s |
| Sequential Write | 3,000 MB/s |
| Random Read (4K QD32) | 390,000 IOPS |
| Random Write (4K QD32) | 380,000 IOPS |
| Endurance (TBW) | 1,480 TBW |
| MTBF | 2,000,000 hours |
| DRAM Cache | Yes (LPDDR4, capacity-scaled) |
| Power Consumption (Active) | 5.8 W |
| Power Consumption (Idle) | 0.4 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 80 x 22 x 3.5 mm |
| Weight | 10 g |
| Encryption | AES 256-bit |
| OS Support | Windows 10/11, Windows Server 2016/2019/2022, Linux |
| Available Capacities | 256 GB, 512 GB, 1 TB, 2 TB |
Available from Omnixon Global. Submit an RFQ and our team will confirm configuration and availability for your order.
Technical Specifications
| Brand | ADATA |
| Category | Enterprise SSDs |
| SKU | ADAT-ASX8200PNP2TTC |
| Part Number | ASX8200PNP-2TT-C |
| Condition | New |
| Model | XPG SX8200 Pro |
| Capacity | 2 TB |
| Form Factor | M.2 2280 |
| Interface | PCIe Gen3 x4, NVMe 1.3 |
| Controller | Silicon Motion SM2262EN |
| NAND Flash | 3D TLC NAND |
| Sequential Read | 3,500 MB/s |
| Sequential Write | 3,000 MB/s |
| Random Read (4K QD32) | 390,000 IOPS |
| Random Write (4K QD32) | 380,000 IOPS |
| Endurance (TBW) | 1,480 TBW |
| MTBF | 2,000,000 hours |
| DRAM Cache | Yes (LPDDR4, capacity-scaled) |
| Power Consumption (Active) | 5.8 W |
| Power Consumption (Idle) | 0.4 W |
| Operating Temperature | 0°C to 70°C |
| Storage Temperature | -40°C to 85°C |
| Dimensions | 80 x 22 x 3.5 mm |
| Weight | 10 g |
| Encryption | AES 256-bit |
| OS Support | Windows 10/11, Windows Server 2016/2019/2022, Linux |
| Available Capacities | 256 GB, 512 GB, 1 TB, 2 TB |
Frequently Asked Questions about ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD
What does the ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD do?
the ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. It is supported by major server platforms.
What are the headline specs of the ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD?
Key specifications for the ADATA XPG SX8200 Pro 2TB PCIe Gen3 NVMe SSD: new condition; manufacturer ADATA; model XPG SX8200 Pro; part number ASX8200PNP-2TT-C; capacity 2 TB; form factor M.2 2280; interface PCIe Gen3 x4, NVMe 1.3. Manufacturer part number ASX8200PNP-2TT-C. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
