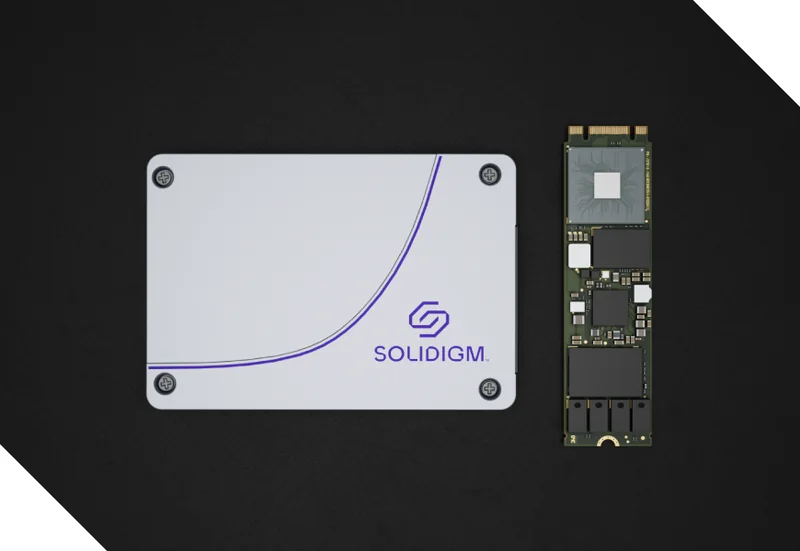

Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDSC2KB960GZ1Z | Part #: SSDSC2KB960GZ1Z | MPN: SSDSC2KB960GZ1Z
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD
The Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 960GB capacity, 2.5" form factor, SATA interface. The Solidigm D3-S4520 (SSDSC2KB960GZ1Z) is a 960GB 2.5-inch SATA III enterprise solid-state drive engineered for read-intensive and mixed-workload data center deployments. Built on Intel-derived 3D TLC NAND with a DRAM cache and a purpose-designed enterprise controller, the D3-S4520 delivers consistent, low-latency performance under sustained queue depths typical of production server environments. End-to-end data protection, power-loss imminent (PLI) capacitors, and hardware- Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDSC2KB960GZ1Z |
| Part Number | SSDSC2KB960GZ1Z |
| Condition | New |
| Capacity | 960GB |
| Form Factor | 2.5" |
| Interface | SATA |
| Product Line | D3-S4520 |
| Manufacturer Part Number | SSDSC2KB960GZ1Z |
| Capacity | 960 GB |
| Form Factor | 2.5-inch |
| Height | 7 mm |
| Interface | SATA III 6 Gb/s |
| NAND Technology | 3D TLC NAND |
| Sequential Read | Up to 550 MB/s |
| Sequential Write | Up to 510 MB/s |
| Random Read (4K) | Up to 97,000 IOPS |
| Random Write (4K) | Up to 32,000 IOPS |
| Endurance (TBW) | 1,752 TBW |
| Drive Writes Per Day (DWPD) | 1 DWPD (5-year) |
| Power Consumption (Active Read) | 2.6 W |
| Power Consumption (Active Write) | 3.5 W |
| Power Consumption (Idle) | 1.0 W |
| Encryption | AES 256-bit, TCG Opal 2.0 |
| Data Protection | End-to-end data protection, Power Loss Imminent (PLI) |
| MTBF | 2,000,000 hours |
| Operating Temperature | 0°C to 70°C |
| Non-Operating Temperature | -55°C to 95°C |
| Dimensions (L x W x H) | 100.5 mm x 69.85 mm x 7 mm |
Frequently Asked Questions about Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD
What does the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD do?
At 960GB, the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD?
Key specifications for the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD: capacity 960GB; form factor 2.5-inch SATA III; interface SATA; new condition; capacity 960GB; series D3-S4520; interface / form factor 2.5-inch SATA III; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDSC2KB960GZ1Z. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD compatible with my infrastructure?
The Solidigm / Intel SSDSC2KB960GZ1Z D3-S4520 960GB 2.5-inch SATA III SSD uses a SATA interface in a 2.5-inch SATA III form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
