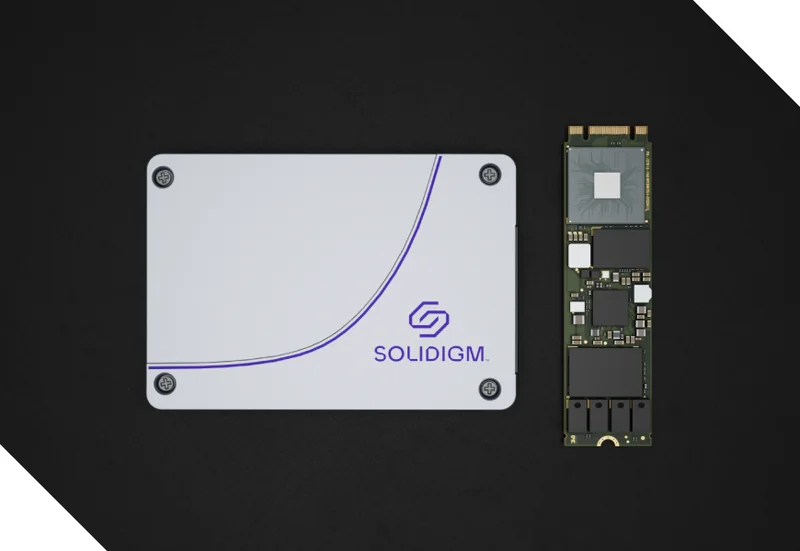

Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD
Brand: Solidigm | Category: Enterprise SSDs
SKU: SOL-SSDSC2KB960GZ01 | Part #: SSDSC2KB960GZ01 | MPN: SSDSC2KB960GZ01
Contact for Pricing — Request a Quote
About the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD
The Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD from Solidigm is enterprise-grade Enterprise SSDs hardware built for data centers. It features 960GB capacity, 2.5" form factor, SATA interface. The Solidigm D3-S4520 Series SSDSC2KB960GZ01 is a 960GB 2.5-inch SATA III enterprise solid-state drive engineered for read-intensive and mixed-workload server environments. Built on 3D TLC NAND technology with Solidigm's enterprise-grade controller, it delivers consistent low-latency performance and high endurance suited for sustained data center operation. The drive targets workloads where predictable throughput, data integrity, and stable quality of service across the drive Available in brand new condition. Solidigm enterprise ssds products are trusted by enterprises and data centers worldwide. Available from Omnixon Global. Contact our sales team to request a quote.
Technical Specifications
| Brand | Solidigm |
| Category | Enterprise SSDs |
| SKU | SOL-SSDSC2KB960GZ01 |
| Part Number | SSDSC2KB960GZ01 |
| Condition | New |
| Capacity | 960GB |
| Form Factor | 2.5" |
| Interface | SATA |
| Product Series | D3-S4520 |
| Manufacturer Part Number | SSDSC2KB960GZ01 |
| Capacity | 960 GB |
| Form Factor | 2.5-inch |
| Interface | SATA III 6 Gb/s |
| NAND Technology | 3D TLC NAND |
| Sequential Read Speed | Up to 550 MB/s |
| Sequential Write Speed | Up to 510 MB/s |
| Random 4K Read IOPS | Up to 97,000 |
| Random 4K Write IOPS | Up to 32,000 |
| Endurance (TBW) | 1,752 TBW |
| Drive Writes Per Day (DWPD) | 1.0 DWPD (5-year rating) |
| Power Loss Protection | Yes — capacitor-based data-in-flight protection |
| Encryption | AES 256-bit hardware encryption (TCG Opal 2.0) |
| Data Path Protection | End-to-end data path protection |
| Active Power (Typical) | 3.5 W |
| Idle Power (Typical) | 1.0 W |
| Operating Temperature | 0°C to 70°C |
| Dimensions | 100.45 mm x 69.85 mm x 7.0 mm |
| Weight | Approximately 58 g |
| Mean Time Between Failures (MTBF) | 2,000,000 hours |
Frequently Asked Questions about Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD
What does the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD do?
At 960GB, the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD suits enterprise data-center storage tiers — all-flash arrays, hyperconverged storage pools (vSAN, Ceph), database backends, and high-throughput backup repositories. The SATA interface is supported by major server platforms.
What are the headline specs of the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD?
Key specifications for the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD: capacity 960GB; form factor 2.5-inch SATA III; interface SATA; new condition; capacity 960GB; series D3 / S45xx Series; interface / form factor 2.5-inch SATA III; drive class Enterprise SSD; use case Servers, storage arrays, virtualization, and cloud infrastructure. Manufacturer part number SSDSC2KB960GZ01. For the full datasheet with electrical, environmental, and compliance details, contact our pre-sales engineering team.
Is the Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD compatible with my infrastructure?
The Solidigm / Intel SSDSC2KB960GZ01 D3 / S45xx Series 960GB 2.5-inch SATA III SSD uses a SATA interface in a 2.5-inch SATA III form factor. It's compatible with server platforms that expose this interface — typical deployments include Dell PowerEdge, HPE ProLiant, Lenovo ThinkSystem, and Supermicro SuperServer chassis. For specific vendor part-number compatibility, our team validates against the manufacturer support matrix.
